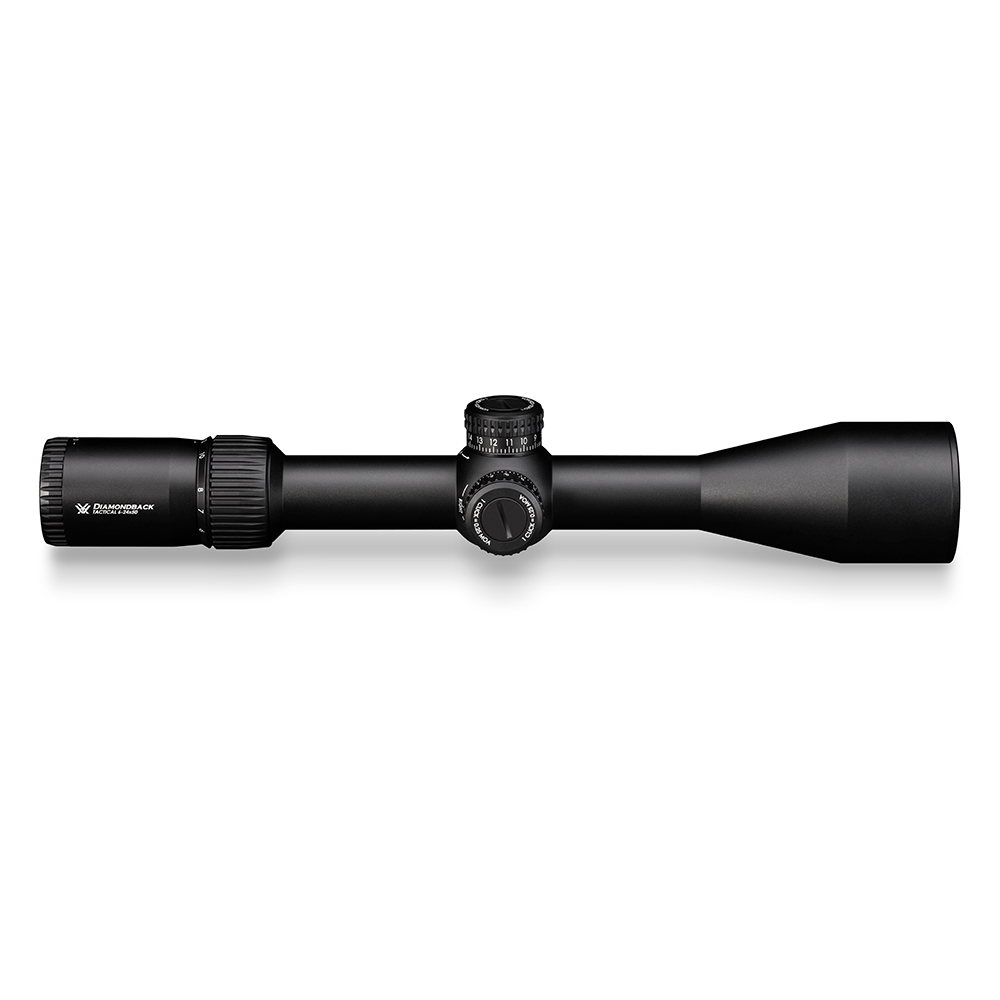

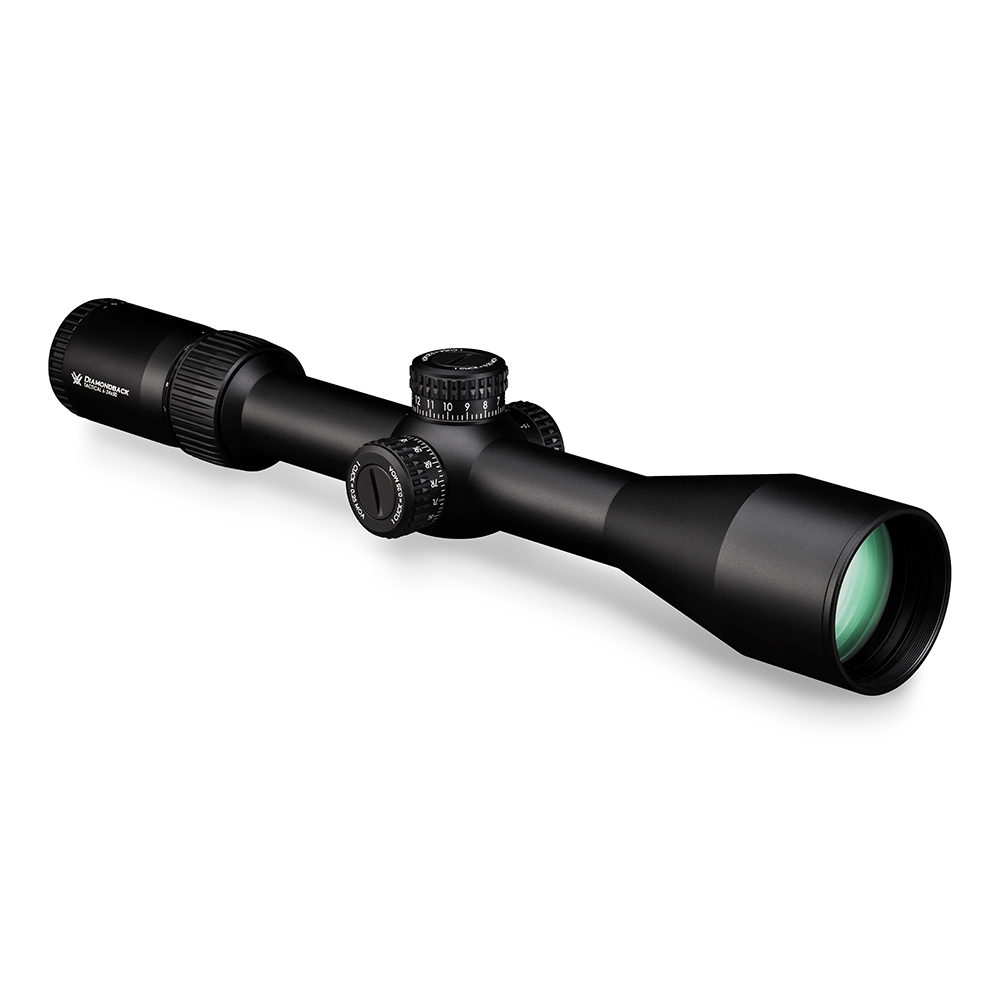

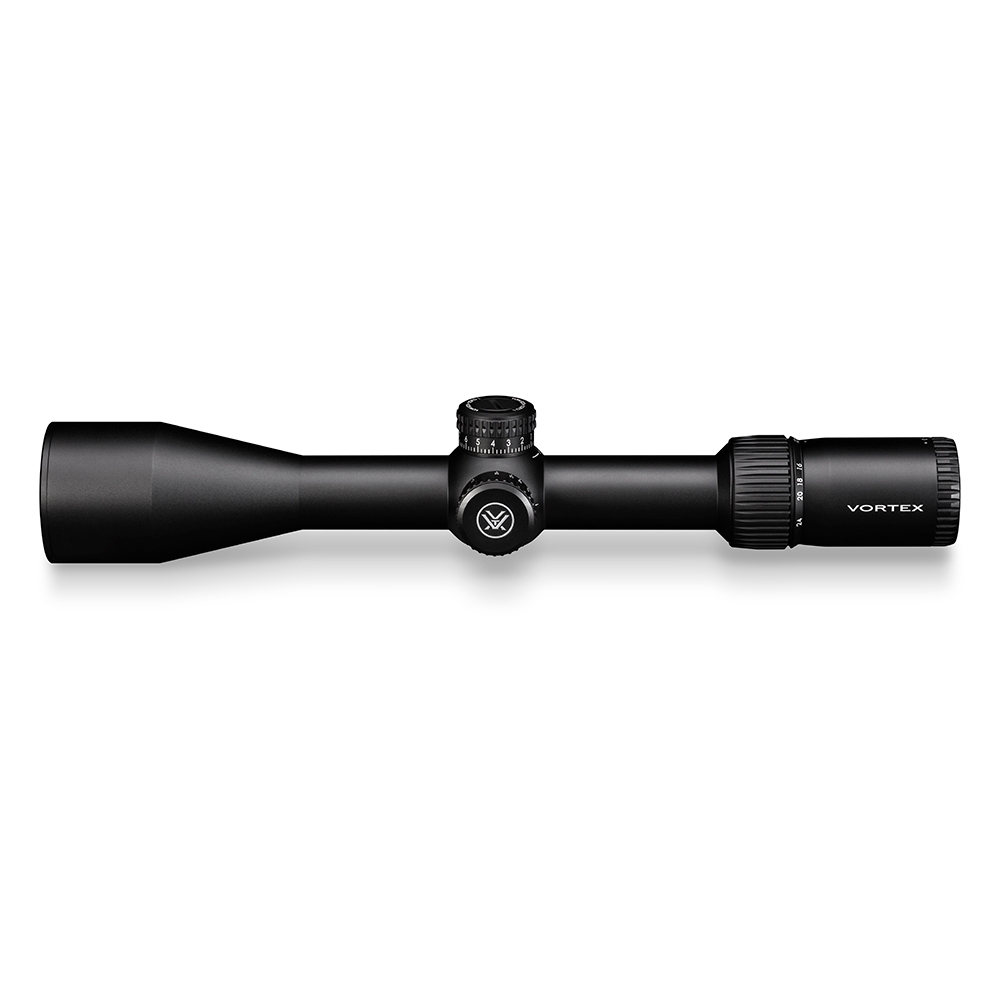

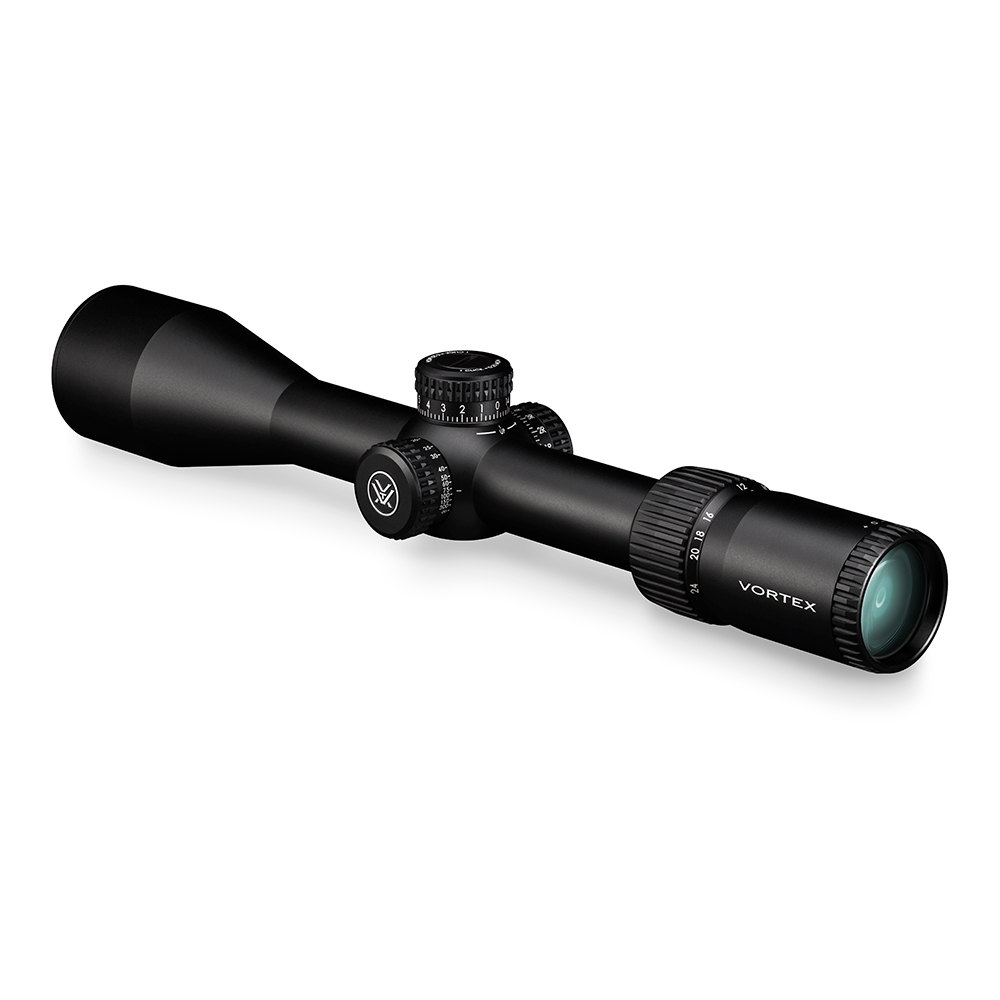

Diamondback Tactical 6–24x50 FFP Riflescope EBR-2C MOA

VT-DBK-10028

Vortex presents affordable first focal plane (FFP) riflescopes. The first focal plane reticle, a feature ordinarily reserved for 4-figure-priced optics, allows shooters to use the information-packed EBR-2C reticles for ranging, holdovers or windage corrections on any magnification. Housed inside its durable, one-piece aluminum tube is a 4x optical system delivering excellent edge-to-edge clarity and sharp resolution. Exposed elevation and windage turrets are low profile enough to stay out of the way in packing situations, but offer the quickness, ease and precision of dialing accurate shots at distance. A side adjustable parallax gives shooters peace of mind by removing parallax error from the equation from 10 yards to infinity.

Dual use for hunting and tactical shooting.

MSRP/PDSF* CA$829

Reviews

Reviews



Specifications

Specifications

SKU VT-DBK-10028
Magnification 6 – 24
Objective Lens Diameter 50 mm
Eye Relief 3.9 inches
Field of View 18.0 – 4.5 feet/100 yards
Tube Size 30 mm
Turret Style Exposed Tactical
Adjustment Graduation 1/4 MOA
Travel per Rotation 15 MOA
Max Elevation Adjustment  65 MOA
Max Windage Adjustment 65 MOA
Parallax Setting 10 yards to infinity
Length 14.28 inches
Weight 24.6 ounces
Riflescope Manual (.pdf) Download PDF
Reticle Manual (.pdf) Download PDF
Included in the Box
  • Lens covers
  • Lens cloth
  • Sunshade
Lengths
L1 L2 L3 L4 L5 L6
14.28 2.30 2.70 6.56 3.98 3.77
Heights
H1 H2
2.25 1.73

Dimensions measured in inches.

Optical Features

XD™ Lens Elements Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images.
Fully Multi-Coated Lenses Anti-reflective coatings on all air-to-glass surfaces provide increased light transmission for greater clarity and low light performance
First Focal Plane Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications.

Construction Features

Tube Size 30 mm diameter provides maximed internal adjustment and strength.
Nitrogen Gas Purged Gas purged and o-ring sealed for fogproof and waterproof performance in all conditions.
Aircraft-Grade Aluminum Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Waterproof O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments.
Fogproof Nitrogen gas purging prevents internal fogging over a wide range of temperatures.
Shockproof Rugged construction withstands recoil and impact.
Hard Anodized Finish Highly durable low-glare matte finish helps camouflage the shooter's position.
Precision-Glide Erector System Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions.
Exposed Tactical Turrets The Diamondback Tactical scopes feature tactical windage and elevation turrets with Zero Reset making adjustments back to zero easy and quick.

Internal Mechanism Design Features

Precision-Glide Erector System Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions.
Precision-Force Spring System Uses premium components in the erector-spring system to ensure maximum repeatability and ease of adjustment

Convenience Features

Fast Focus Eyepiece Allows quick and easy reticle focusing.
Magnification Rib The raised rib on the magnification ring facilitates fast magnification changes in the heat of action.

Reticle

Reticle

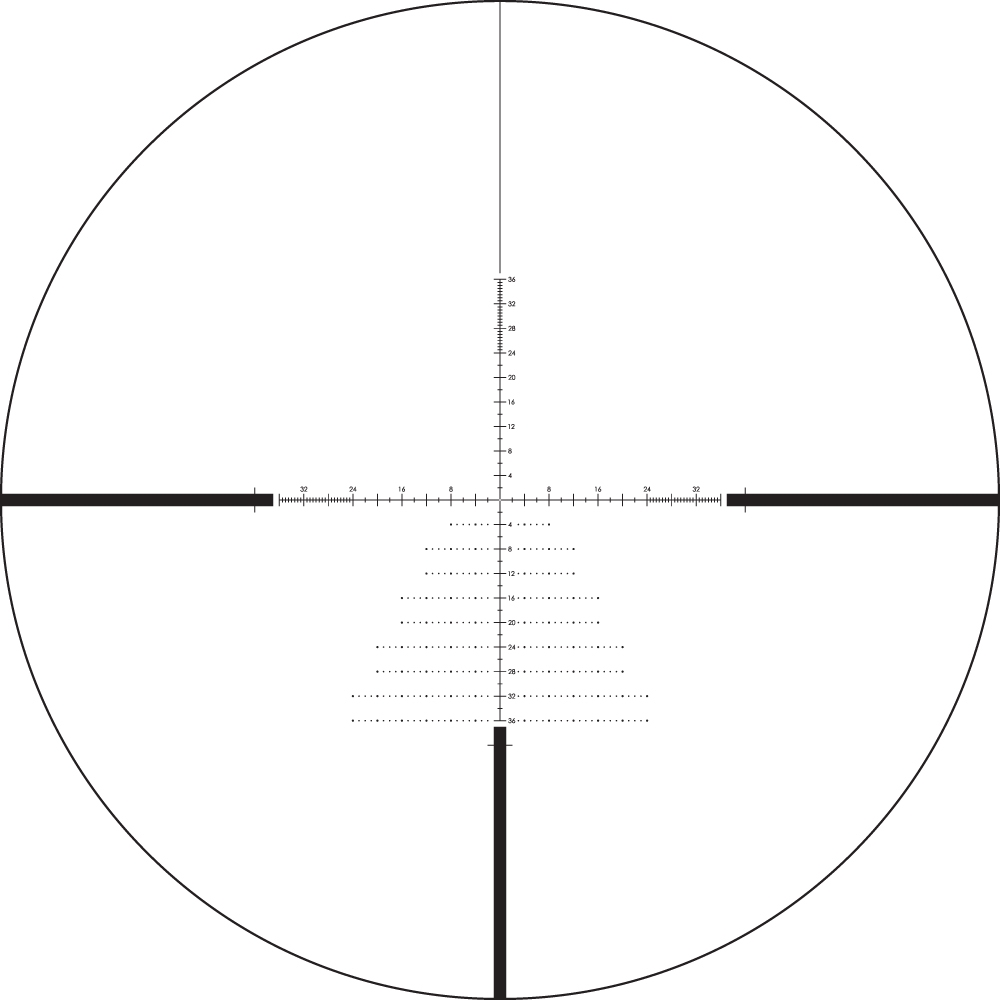

Full view

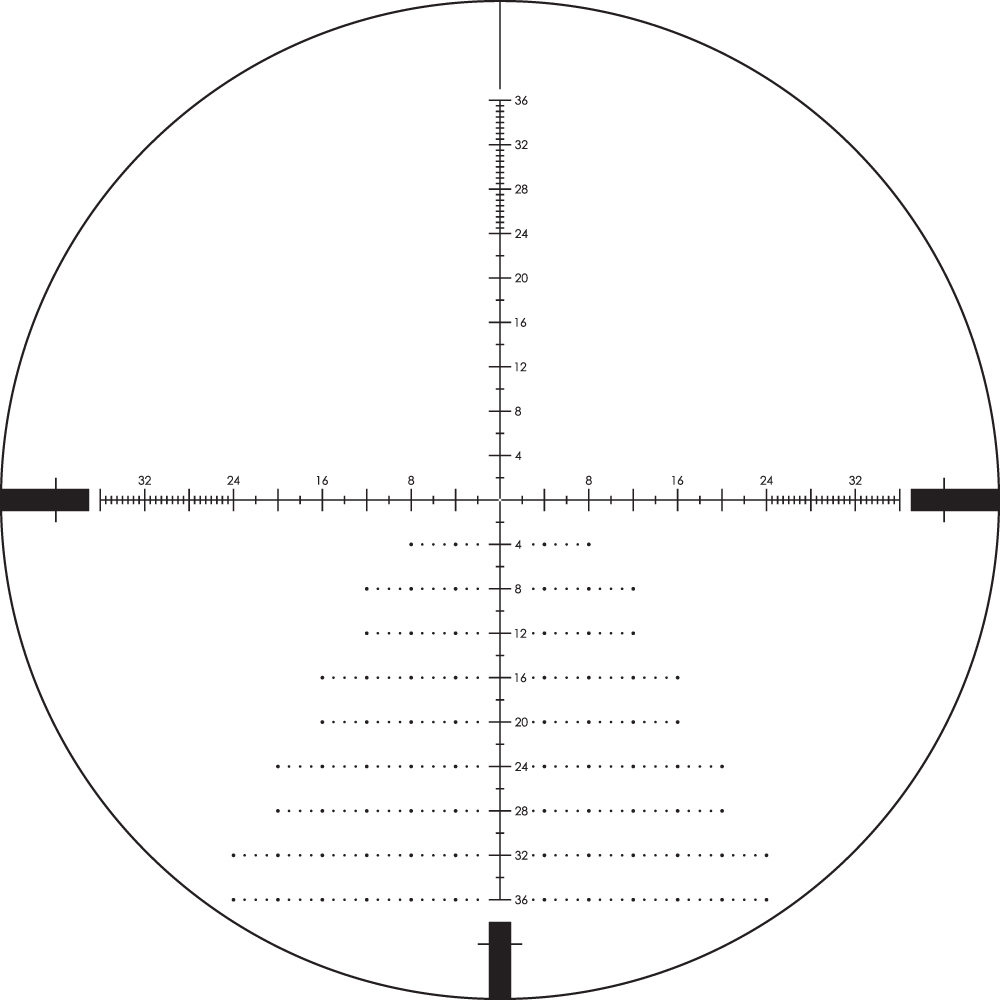

Close up

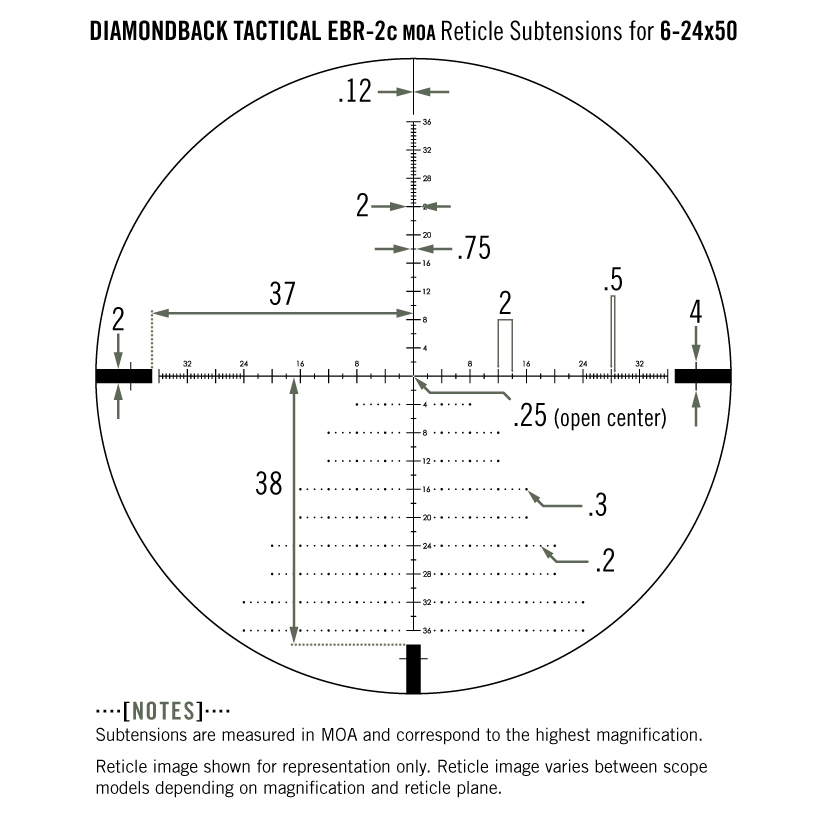

Subtension detail

EBR-2C Reticle (MOA)

Hash-marked ranging reticle using MOA based subtension lines for ranging, holdover, and windage corrections.
