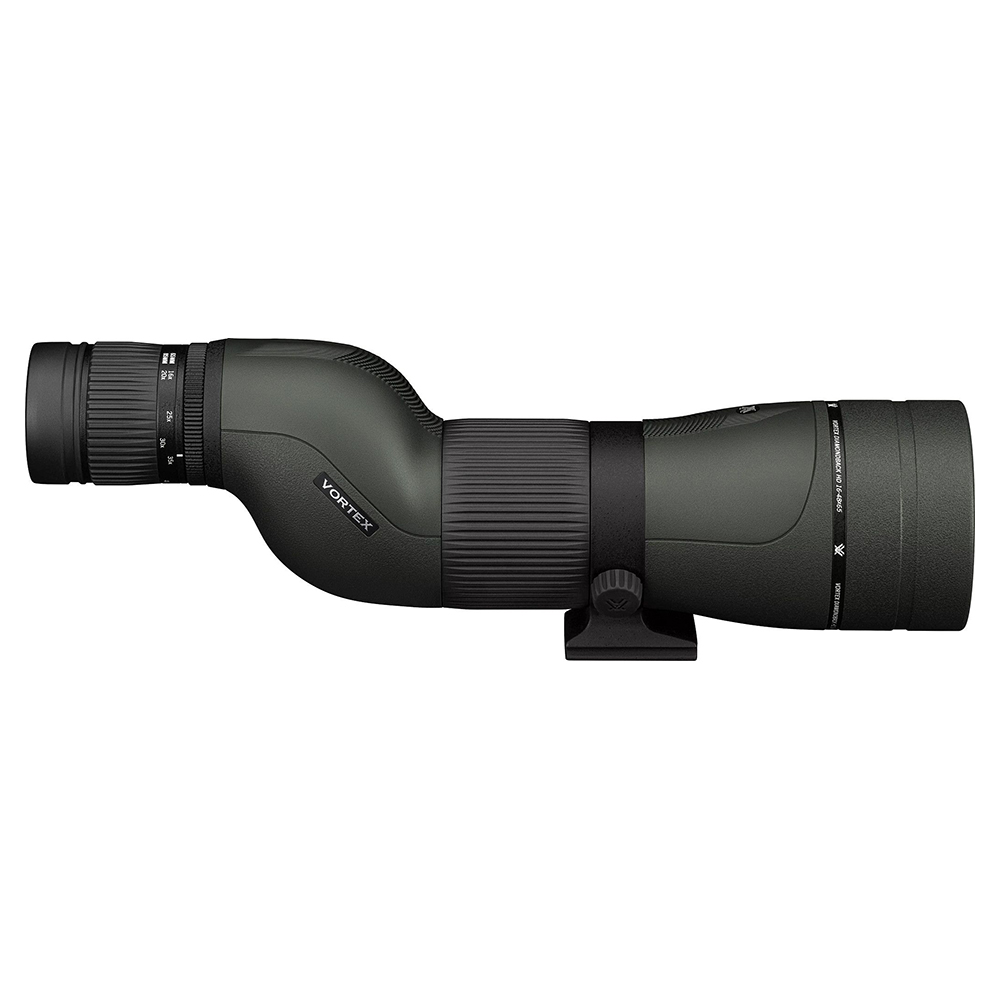

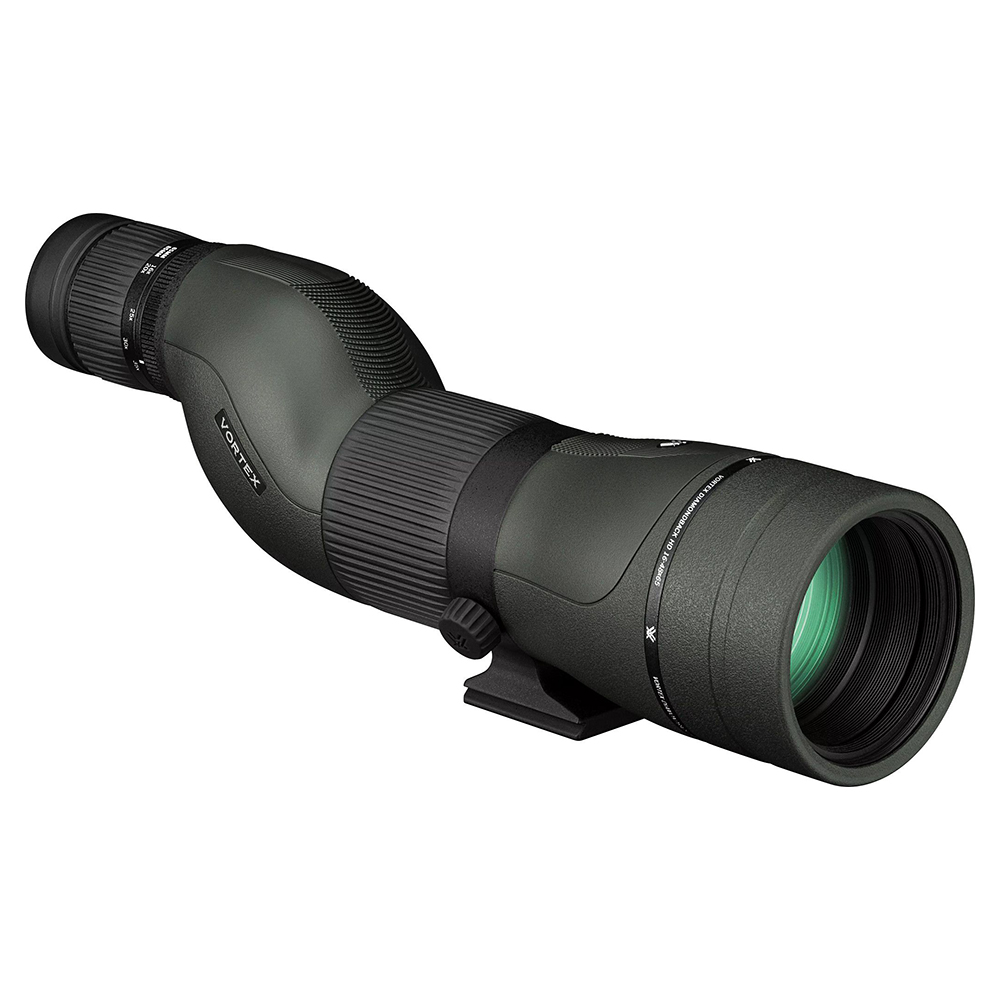

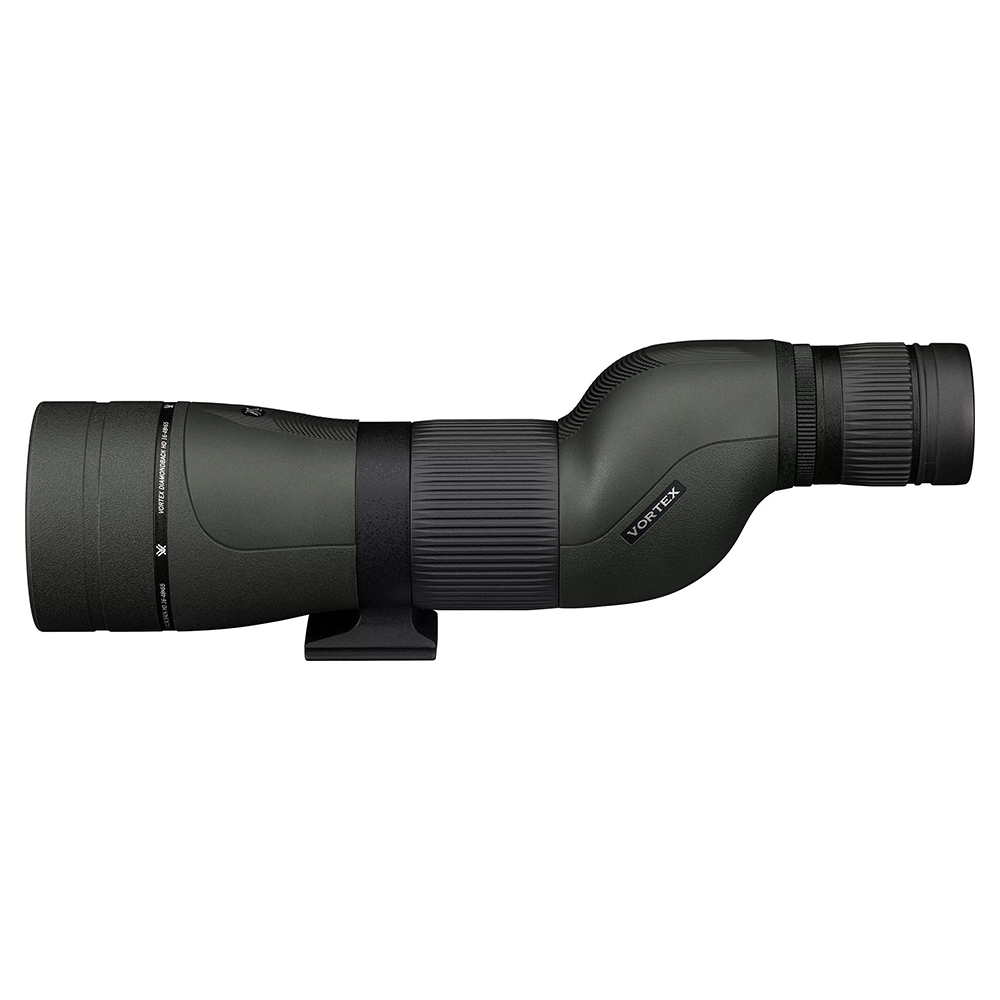

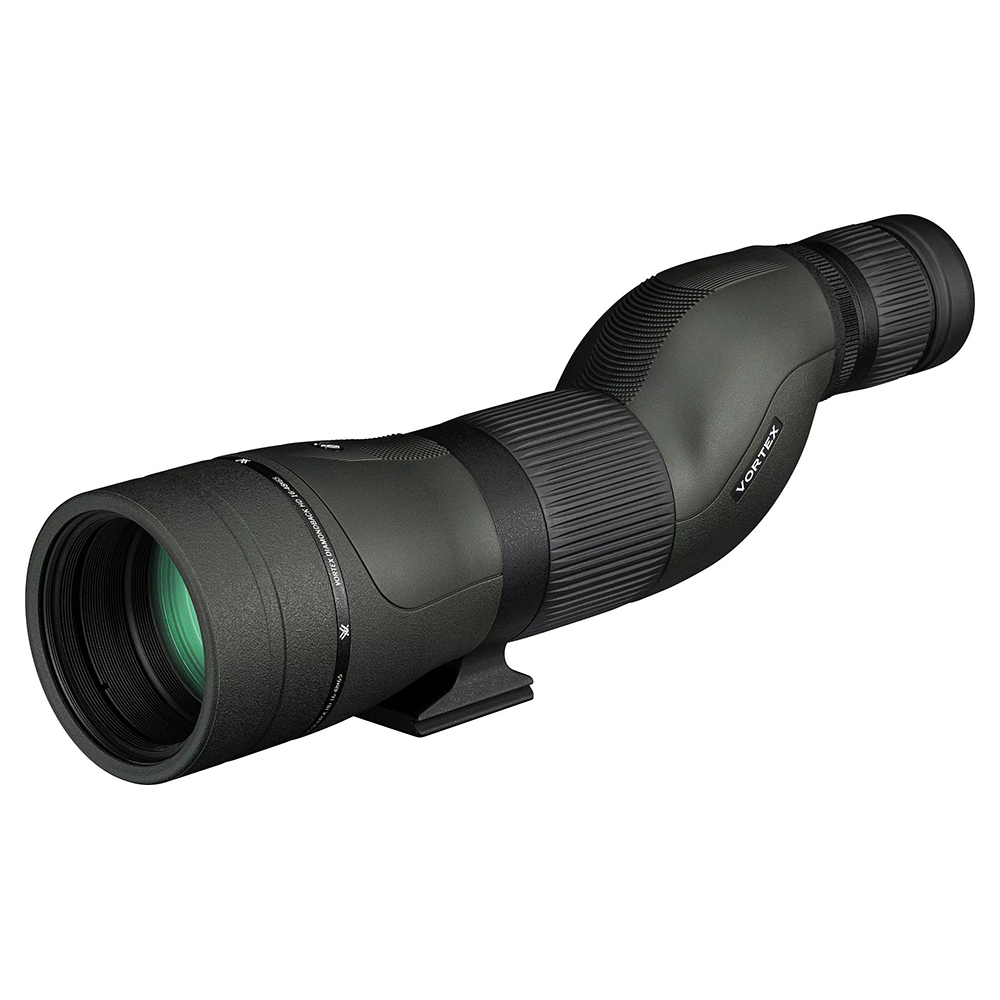

Vortex Diamondback HD 16-48x65 Straight Spotting Scope

VT-DS-65S

Glassing out west demands an HD optic, but other systems can’t get you the clarity you need to see a tail twitch in low light, or pick a tine out of dense cover. The redesigned Diamondback® HD spotting scopes have all the horsepower the long-distance hunter needs, and they excel in low light—right when you need it most. We’ve also streamlined the exterior for a sleeker, snag-free profile, building in a helical focus wheel. For the biggest hunt of your year, or your third time out this season, the all-new Diamondback® HD spotters deliver the power to focus on the thrill of your hunt.

MSRP/PDSF* CA$799

Reviews

Reviews



Specifications

Specifications

SKU VT-DS-65S
Magnification 16 – 48 x
Objective Lens Diameter 65 mm
Linear Field of View 138 – 72 feet/1000 yards
Angular Field of View 2.6–1.4 degrees
Close Focus 16.4 feet
Eye Relief 20.3–18.3 mm
Exit Pupil 4.0–1.35 mm
Length 13.75 inches
Weight 50.4 ounces
Product Manual (.pdf) Download PDF
Included in the Box
  • Neoprene cover
  • Tethered objective lens cap
  • Tethered ocular lens cap
  • Lens Cloth

Optical Features

HD Optical System Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding color fidelity, edge-to-edge sharpness and light transmission.
Fully Multi-Coated Increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.

Construction Features

ArmorTek ®  Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
Waterproof  O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
Shockproof Rugged construction withstands recoil and impact.
Fogproof Argon gas purging prevents internal fogging over a wide range of temperatures.
Rubber Armor Provides a secure, non-slip grip, and durable external protection.

Convenience Features

Adjustable Eyecup Twists up and down to precise, intermediate settings to maximize custom fit for comfortable viewing with or without eyeglasses.
Helical Focus  Allows for fast and fine adjustments.
Arca-Swiss Compatible Directly mounts to Arca-Swiss tripod heads without the use of additional plates. Also accepts 1/4-20 threads for use on alternate style tripod heads.
Tripod Adaptable Allowing use on a tripod or car window mount. Tripod adapter required.
Rotating Tripod Ring Allows rotation of the eyepiece to a sideways position, providing adjustable viewing angles.
Built-in Sunshade Reduces glare and shields the objective lens from raindrops and snow.
