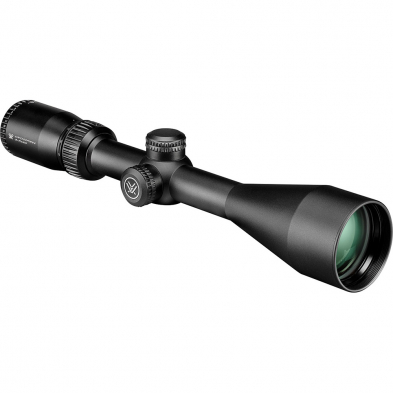

Vortex Crossfire II 3-9x50 Straight-Wall BDC Riflescope

VT-CF2-31011SW

Whatever the reason you shoot straight-wall cartridges (like the .450 Bushmaster, 350 Legend, and .45-70 Government), the Crossfire® II 3-9x50 Straight-Wall is built to help you get the most out of these classic cartridges. With a Bullet Drop Compensator (BDC) reticle optimized for straight-wall hunting, you’ll enjoy accurate holdovers and rapid target acquisition. The one-inch tube provides an ideal combination of adjustment, size, and weight for a variety of hunting scenarios, and of course, you can count on the workhorse value of the Crossfire® II line to help you fill those tags, year after year.

Specifications

Specifications

SKU VT-CF2-31011SW
Magnification 3 – 9
Objective Lens Diameter 50 mm
Eye Relief 3.8 inches
Field of View 32–12.9 feet/100 yards
Tube Size 1 inch
Turret Style Capped
Adjustment Graduation 1/4 MOA
Travel per Rotation 15 MOA
Max Elevation Adjustment 60 MOA
Max Windage Adjustment 60 MOA
Parallax Setting 100 yards
Length 12.80 inches
Weight 18.4 ounces
Riflescope Manual (.pdf) Download PDF
Reticle Manual (.pdf) Download PDF
Included in the Box
  • Removable lens covers
  • Lens cloth
Lengths
L1 L2 L3 L4 L5 L6
12.8 2.1 1.8 5.1 4.0 3.6
Heights
H1 H2
2.24 1.71

Dimensions measured in inches.

Features

Fast Focus Eyepiece Allows quick and easy reticle focusing.
Tube Size 1-inch diameter.
Second Focal Plane Reticle Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.
Fully Multi-Coated Increases light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
Single-Piece Tube Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
Aircraft-Grade Aluminum Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Waterproof O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments.
Fogproof Nitrogen gas purging prevents internal fogging over a wide range of temperatures.
Shockproof Rugged construction withstands recoil and impact.
Low-Glare Matte Black Anodized Highly durable low-glare matte finish helps camouflage the shooter's position.
Capped Reset Turrets Allow re-indexing of the turret to zero after sighting in the riflescope. Caps provide external protection for turret.

Reticle

Reticle

Full view

Close up

Subtension detail

Straight-Wall BDC MOA Reticle

The Straight-Wall BDC MOA Reticle is optimized for popular straight-wall cartridges including .450 Bushmaster, 350 Legend, and .45-70 Government.At a 100 yard zero, the Straight-Wall BDC offers holdovers for 150, 200, 250, and 300 yards when used with the .450 Bushmaster, 350 Legend, and .45-70 Government cartridges.
