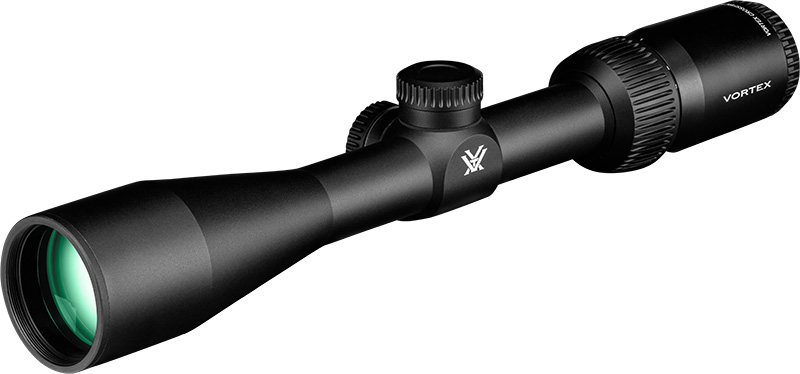

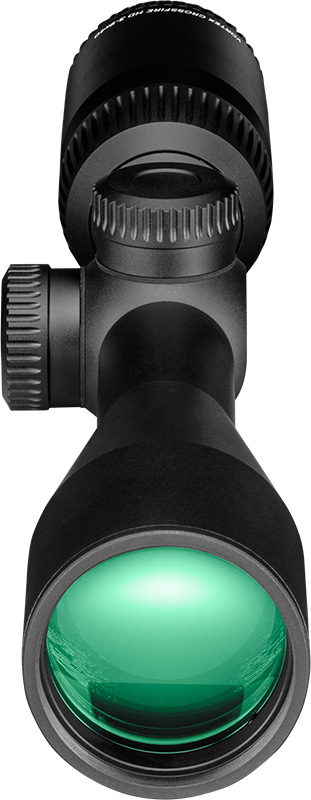

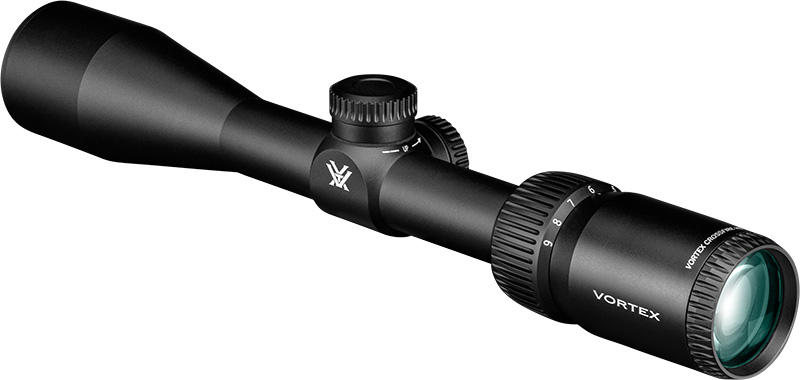

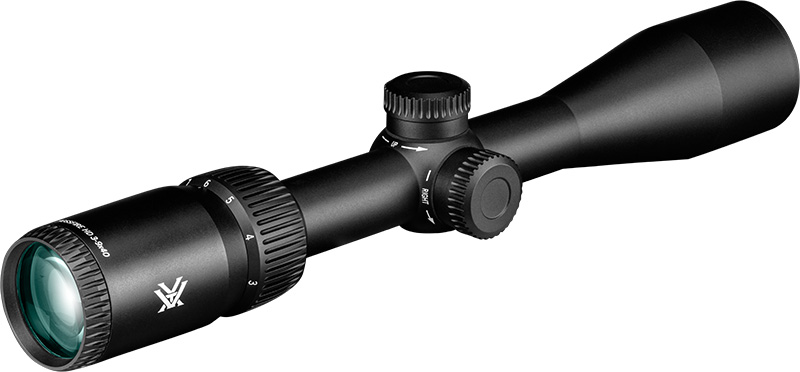

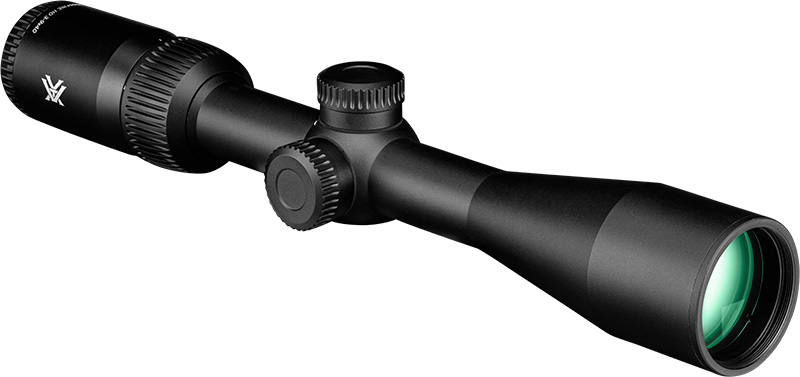

Vortex Crossfire HD 3-9x40 Riflescope Muzzleloader BDC MOA

VT-CFR-3901MZ

Whether threading shots through dense timber or dialing in at extended range, Crossfire® HD delivers sharper detail and improved light transmission, giving you the confidence to own any hunt.

MSRP/PDSF* CA$369

Specifications

Specifications

Magnification 3-9x
Objective Lens Diameter 40 mm
Focal Plane Second Focal Plane
Reticle Muzzleloader BDC (MOA)
Eye Relief 3.8"
Field of View 37.2' - 12.4' @ 100 yds.
Turret Style Capped
Tube Size 1"
Adjustment Graduation 1/4 MOA
Travel Per Rotation 15 MOA
Max Elevation Adjustment 72 MOA
Max Windage Adjustment 72 MOA
Parallax Setting 100 yds.
Length 12.5"
Weight 16.2 oz.


FEATURES



HD Optical System Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration, and provide outstanding color fidelity, edge-to-edge sharpness, and light transmission.
Fully Multi-Coated Lenses Anti-reflective coatings on all air-to-glass surfaces provide increased light transmission for greater clarity and low-light performance.
Fast-Focus Eyepiece Allows quick and easy reticle focusing.
Aircraft Grade Aluminum Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Low-Glare Matte Black Anodize Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter's position.
Waterproof Designed to withstand harsh weather conditions.
Fogproof Designed to withstand a wide range of temperatures.
Shockproof Designed to withstand the highest levels of recoil and impact.



Reticle

Reticle

Muzzleloader BDC Reticle



Muzzleloader BDC (MOA)

Specially calibrated for the slower velocities of modern muzzleloaders. This reticle ensures accurate holds over distance, giving you confidence in longer shots.

Subtension detail for Crossfire HD 3-9x40 riflescope with Muzzleloader BDC MOA reticle.
