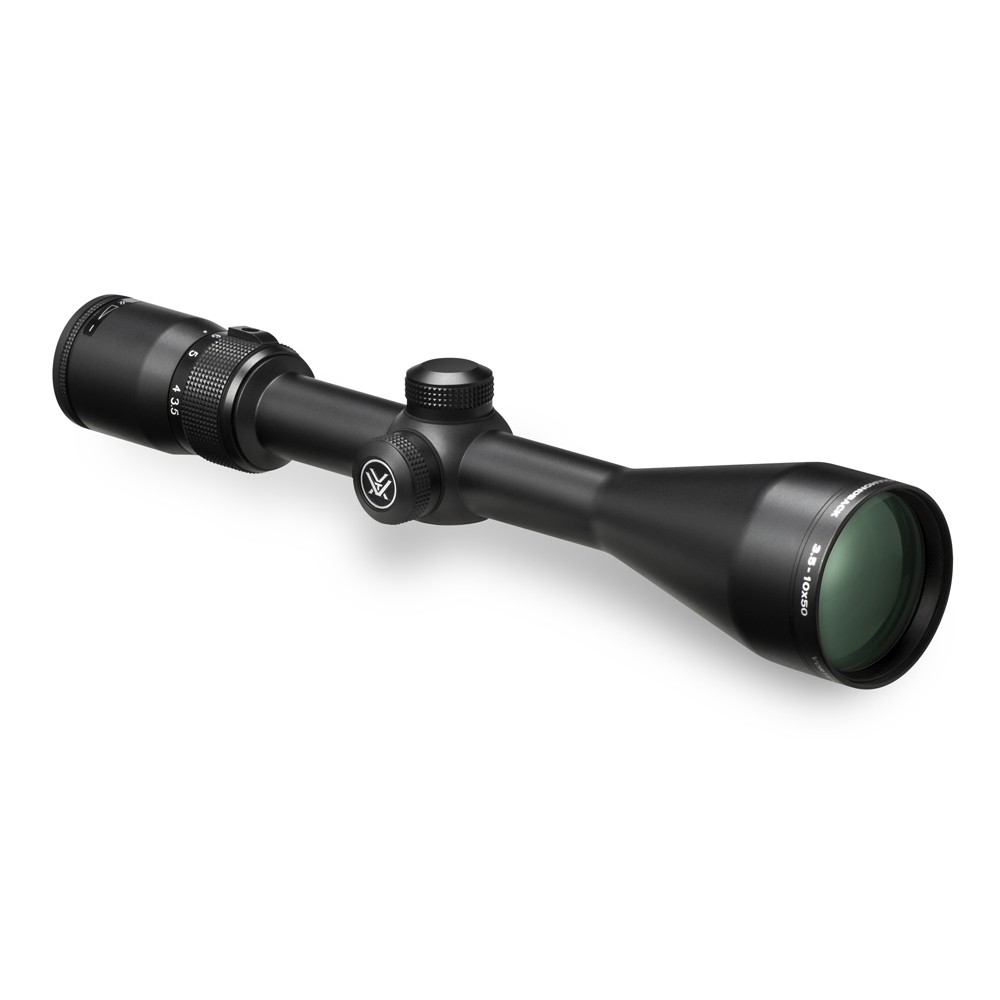

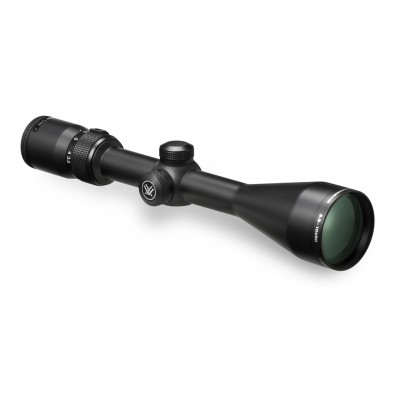

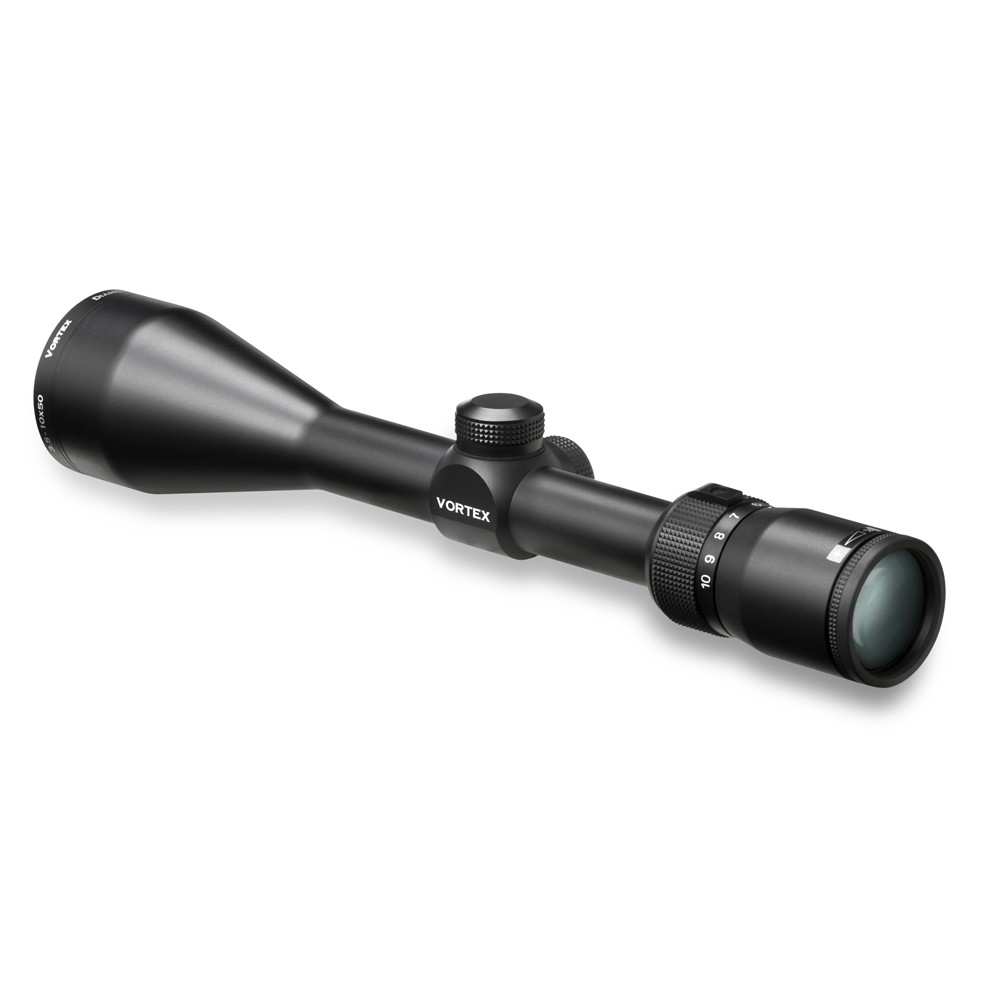

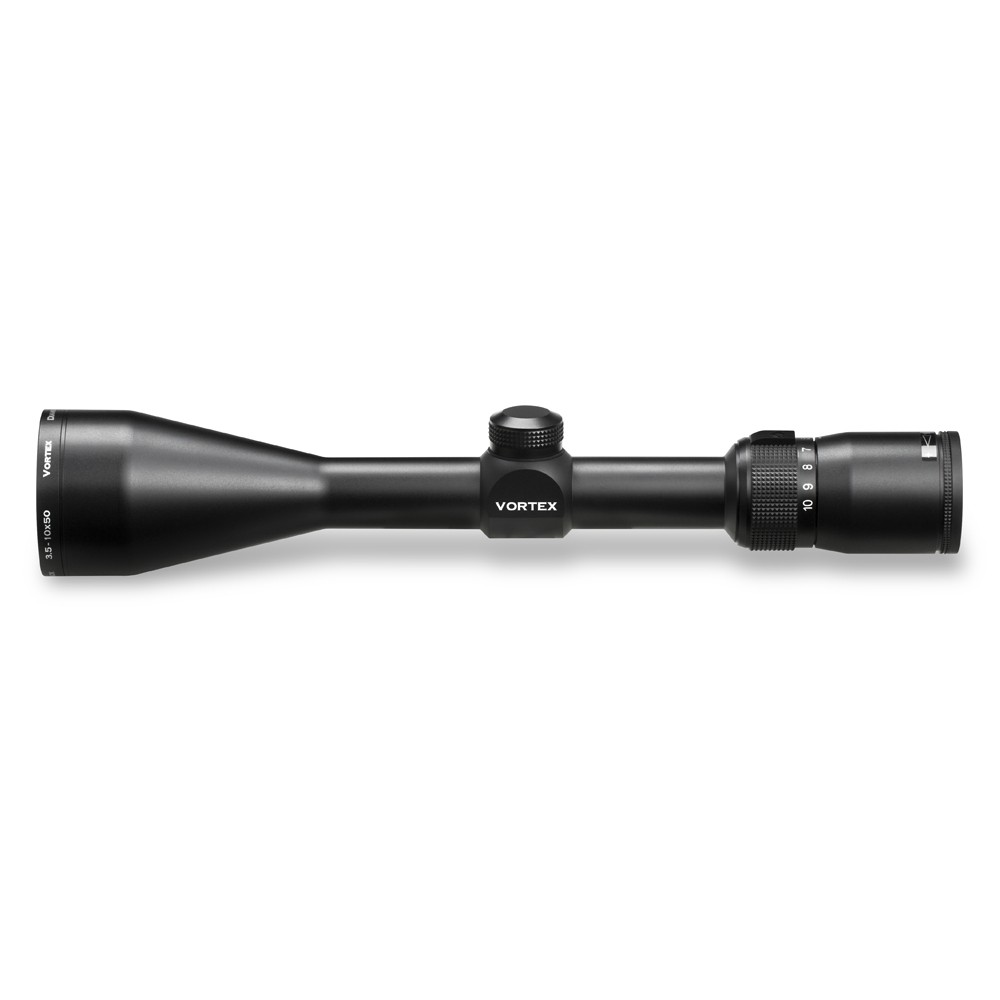

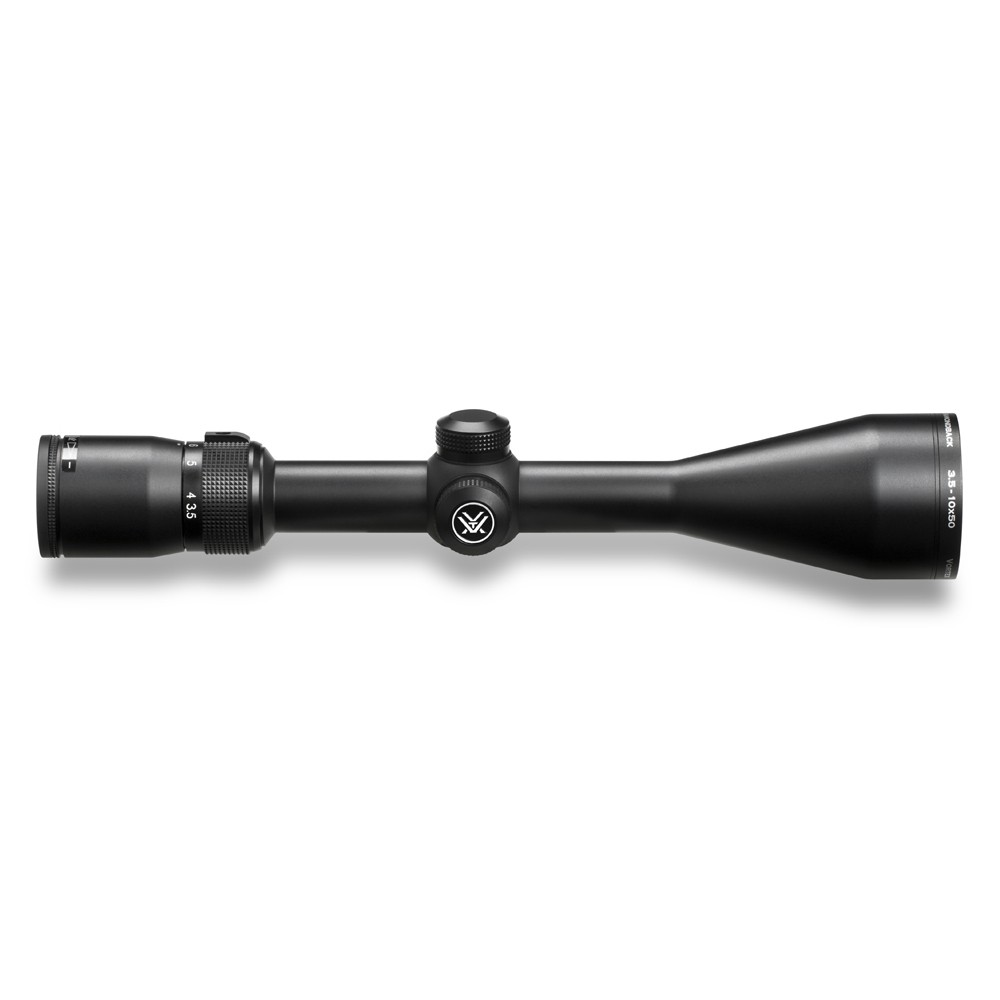

Vortex Diamondback 3.5-10x50 Riflescope BDC

VT-DBK-03-BDC

Diamondback riflescopes are loaded with features. First, the solid one-piece aircraft-grade aluminum alloy construction makes the Diamondback riflescope virtually indestructible and highly resistant to magnum recoil. Argon purging puts waterproof and fogproof performance on the agenda, and advanced fully multi-coated optics raise an eyebrow when crystal clear, tack-sharp images appear in the crosshairs. Look for all this and more in a riflescope you'd expect to cost quite a bit more, but doesn't.

MSRP/PDSF* CA$569

Reviews

Reviews



Specifications

Specifications

SKU VT-DBK-03-BDC
Magnification 3.5 – 10
Objective Lens Diameter 50 mm
Eye Relief 3.3 inches
Field of View 35.8–13.5 feet/100 yards
Tube Size 1 inch
Turret Style Capped
Adjustment Graduation 1/4 MOA
Travel per Rotation 15 MOA
Max Elevation Adjustment 65 MOA
Max Windage Adjustment 65 MOA
Parallax Setting 100 yards
Length 12.5 inches
Weight 16.2 ounces
Riflescope Manual (.pdf) Download PDF
Reticle Manual (.pdf) Download PDF
Included in the Box
  • Removable lens covers
  • Lens cloth
Lengths
L1 L2 L3 L4 L5 L6
12.5 2.15 2.1 5.48 3.85 3.1
Heights
H1 H2
2.29 1.69

Dimensions measured in inches.

Optical Features

Fully Multi-Coated Increases light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
Second Focal Plane Reticle Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.

Construction Features

Tube Size 1-inch diameter.
Single-Piece Tube Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
Aircraft-Grade Aluminum Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Waterproof O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments.
Fogproof Argon gas purging prevents internal fogging over a wide range of temperatures.
Shockproof Rugged construction withstands recoil and impact.
Hard Anodized Finish Highly durable low-glare matte finish helps camouflage the shooter's position.
Precision-Glide Erector System Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions.
Capped Reset Turrets Allow re-indexing of the turret to zero after sighting in the riflescope. Caps provide external protection for turret.

Internal Mechanism Design Features

Precision-Glide Erector System Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions.

Convenience Features

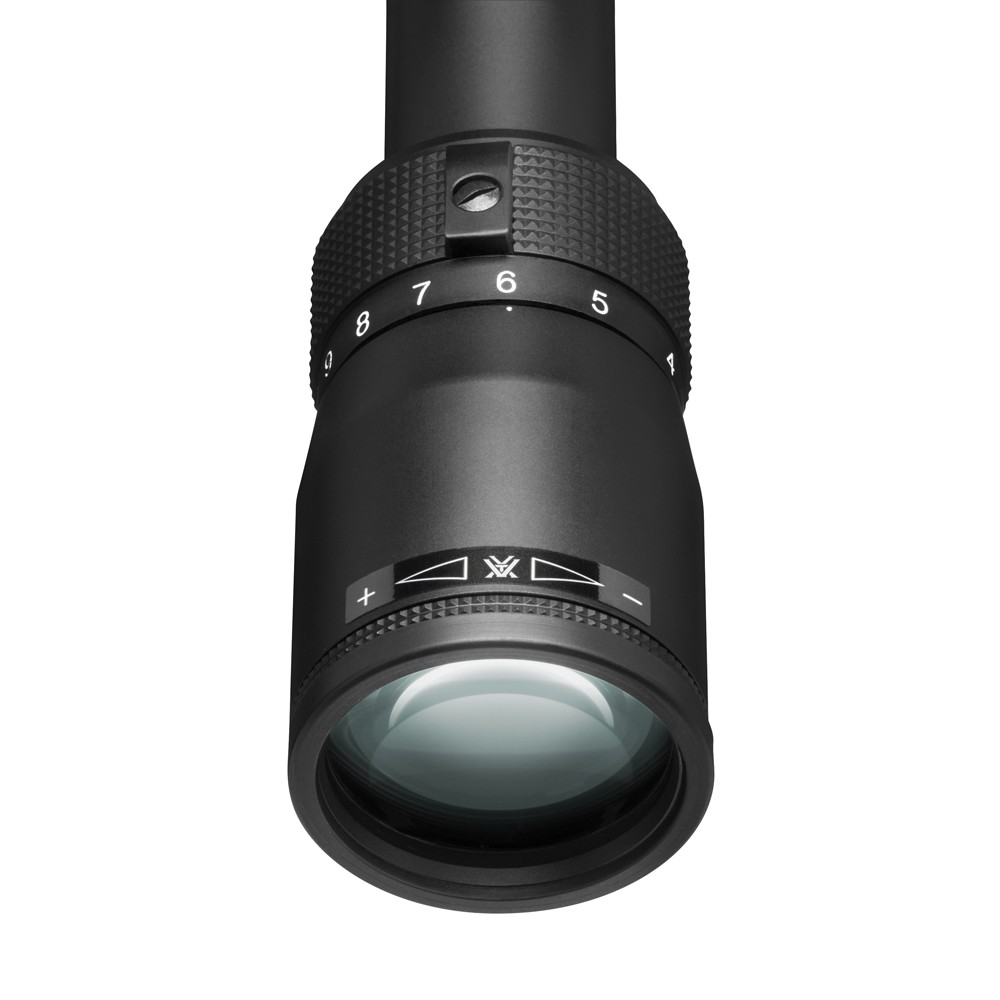

Fast Focus Eyepiece Allows quick and easy reticle focusing.

Reticle

Reticle

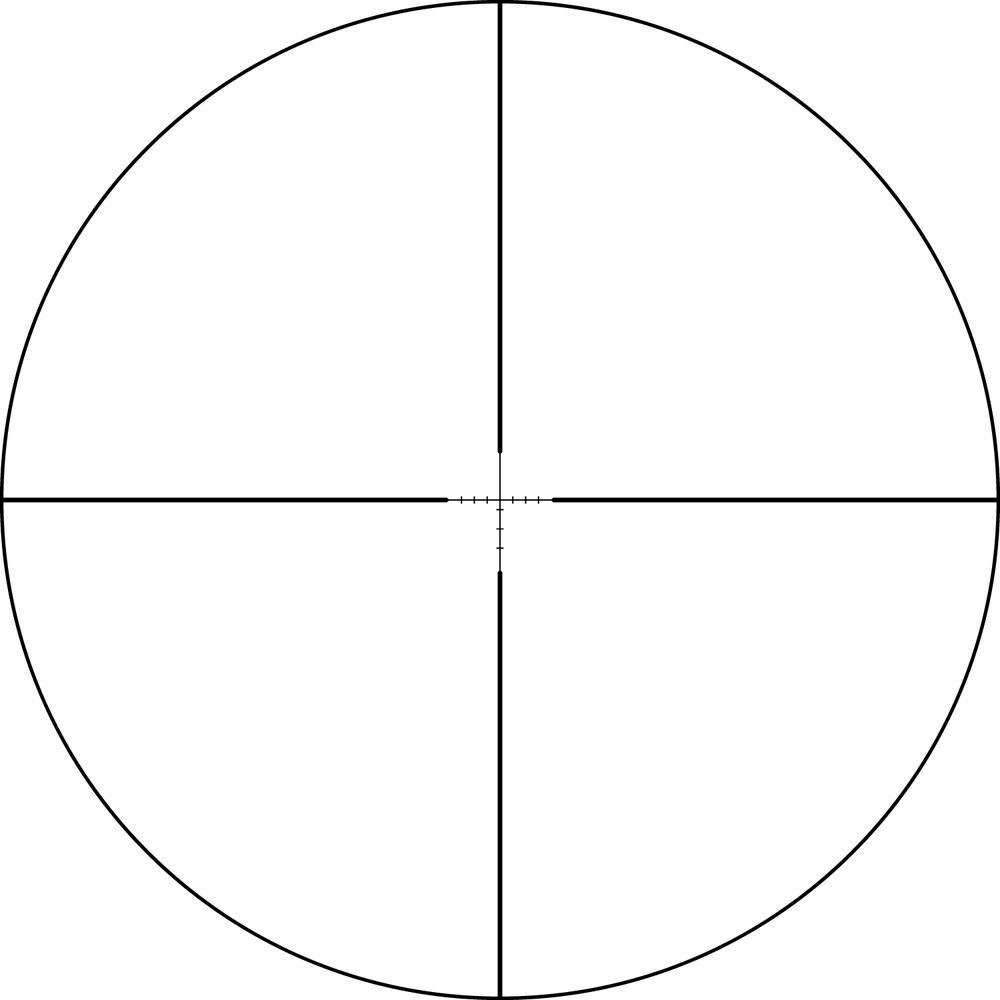

Full view

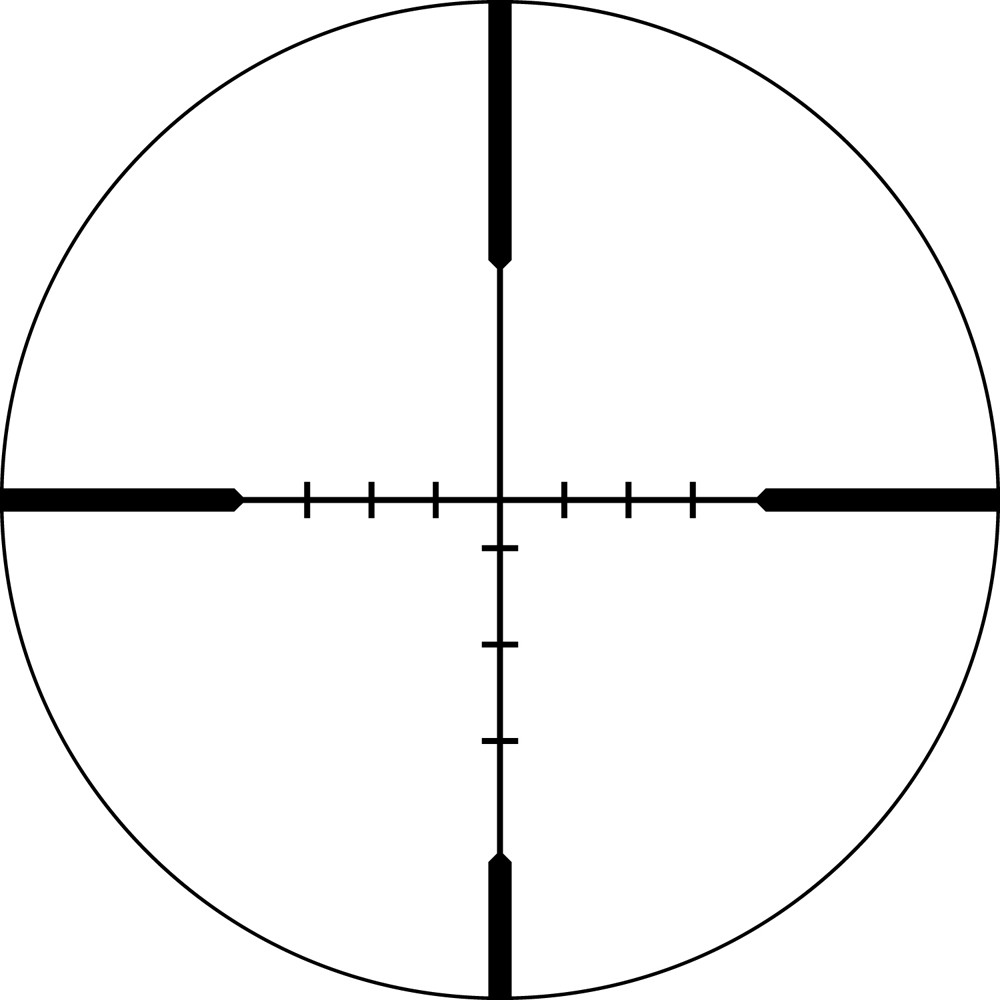

Close up

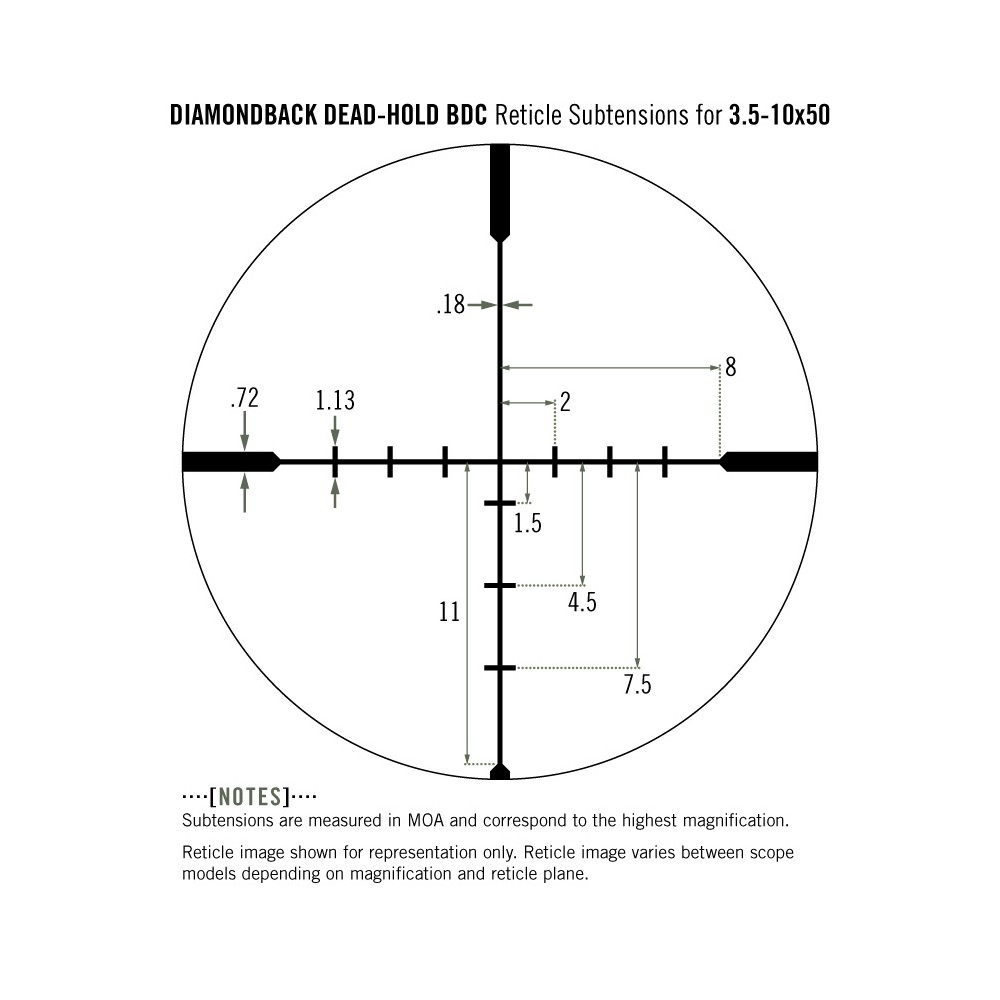

Subtension detail

Dead-Hold BDC Reticle

Customized dot design helps eliminate guesswork on holdover and windage corrections. Good for hunting/shooting at varying ranges where estimating holdover is a concern.
