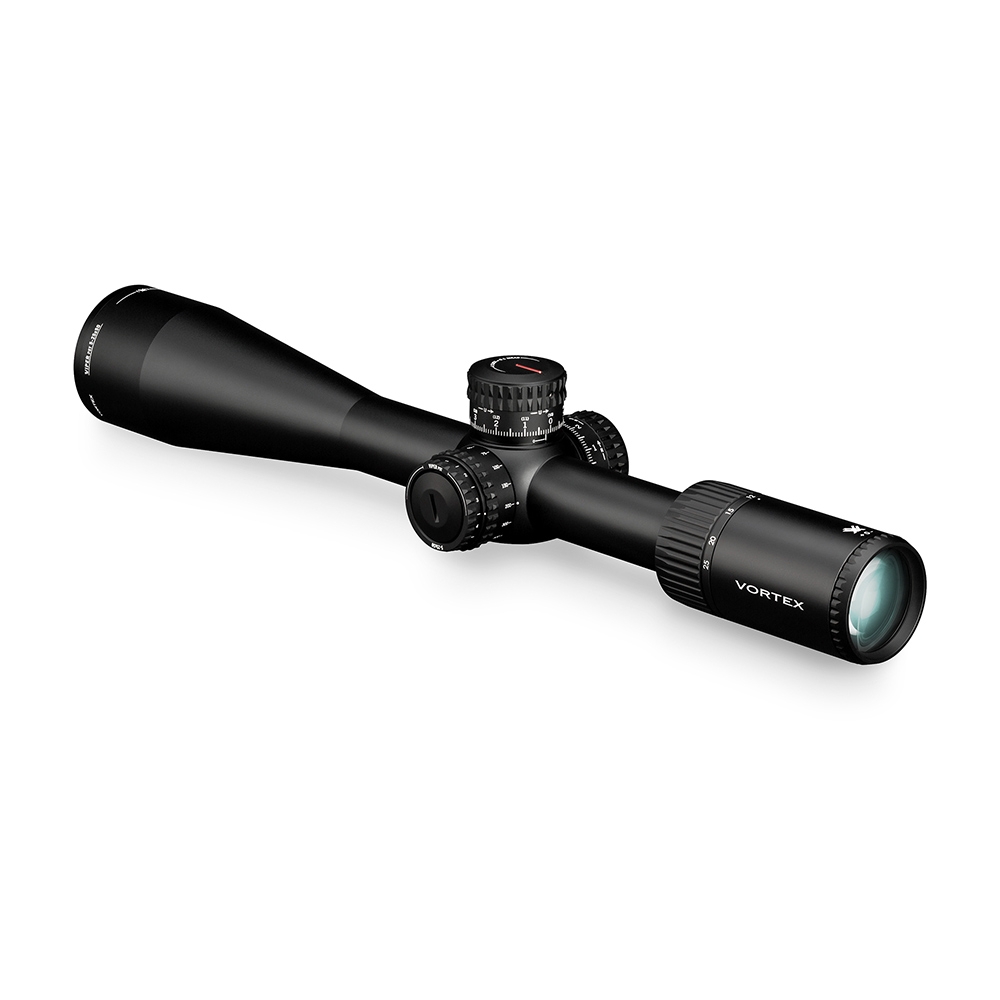

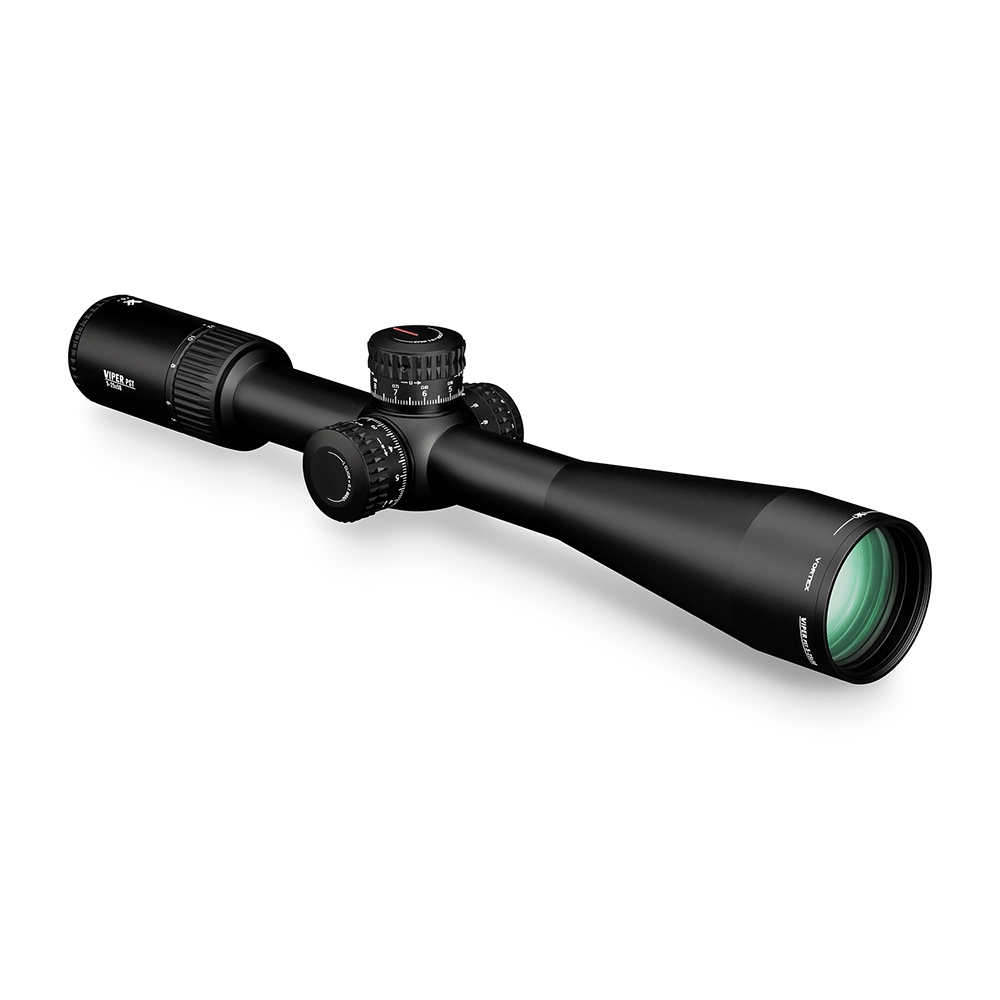

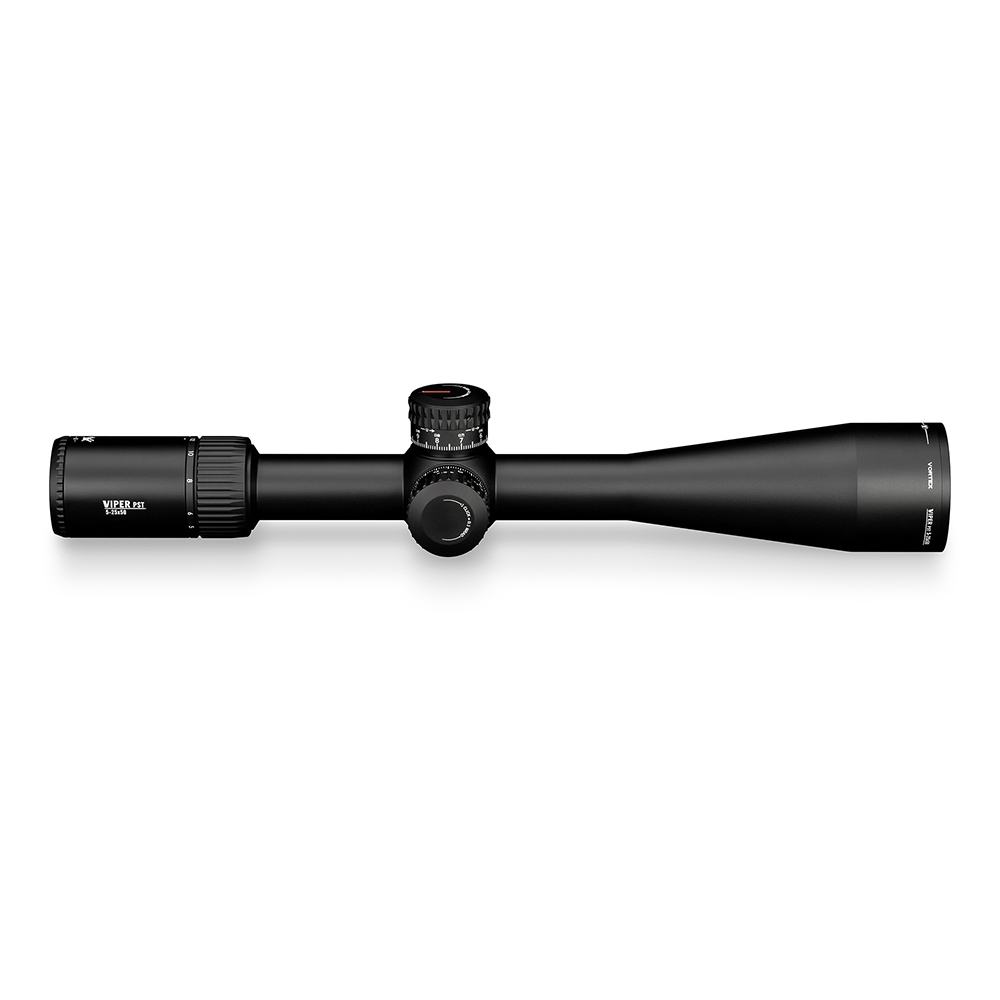

Vortex Viper PST Gen II 5-25x50 FFP EBR-7C mrad

VT-PST-5259

The Viper PST Gen II hands an unfair advantage to shooters who seek to keep the upper hand in every situation from close quarters to long-range shots. The illumination dial is cleanly integrated into the side focus adjustment knob for easy access and streamlined performance. The glass-etched reticle offers shooters highly functional, intuitive, and detailed hold points, yet remains uncluttered for optimal viewing and features 10 intensity levels with off positions between each setting.

MSRP/PDSF* CA$2,299

Reviews

Reviews



Specifications

Specifications

SKU VT-PST-5259
Magnification 5 – 25
Objective Lens Diameter 50 mm
Eye Relief 3.4 inches
Field of View 24.1 – 4.8 feet/100 yards
Tube Size 30 mm
Turret Style Tactical
RZR Zero Stop
Adjustment Graduation .1 mrad
Travel per Rotation 10 mrad
Max Elevation Adjustment 20 mrad
Max Windage Adjustment 10 mrad
Parallax Setting 25 yards to infinity
Length 15.79 inches
Weight 31.2 ounces
Riflescope Manual (.pdf) Download PDF
Reticle Manual (.pdf) Download PDF
Included in the Box
  • 3-inch sunshade
  • CR2032 battery
  • 2mm hex wrench
  • Lens cloth
Lengths
L1 L2 L3 L4 L5 L6
15.79 2.37 2.58 6.59 5.6 3.59
Heights
H1 H2
2.3 1.8

Dimensions measured in inches.

Optical Features

XD™ Lens Elements Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images.
XR™ Fully Multi-Coated Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
First Focal Plane Reticle Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications.
Glass-etched Reticle Protected between two layers of glass for optimum durability and reliability.
Illuminated Reticle Provides precise aiming under low-light conditions.

Construction Features

Tube Size 30 mm diameter provides maximized internal adjustment and strength.
Single-Piece Tube Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
Aircraft-Grade Aluminum Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Waterproof O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments.
Fogproof Argon gas purging prevents internal fogging over a wide range of temperatures.
Shockproof Rugged construction withstands recoil and impact.
Hard Anodized Finish Highly durable low-glare matte finish helps camouflage the shooter's position.
ArmorTek® Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
Tactical-Style Turrets Exposed turrets provide fast, accurate and easily read elevation and windage adjustments.

Internal Mechanism Design Features

RZR™ Zero Stop Zero Stop mechanism prevents the turret from dialing below sight-in range.
Precision-Force Spring System Uses premium components in the erector-spring system to ensure maximum repeatability and ease of adjustment.
Precision-Glide Erector System Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions.

Convenience Features

Radius Bar Fiber optic turret rotation indicator provides a highly visible and tactile point of reference for turret rotations. US Patent 7,937,879
Fast Focus Eyepiece Allows quick and easy reticle focusing.
Built-In Accuracy Features Matching mrad turrets and reticles facilitate fast and accurate shooting at extended ranges. The patented fiber optic Radius Bar visually assists tracking turret rotations. US Patent 7,937,879

Reticle

Reticle

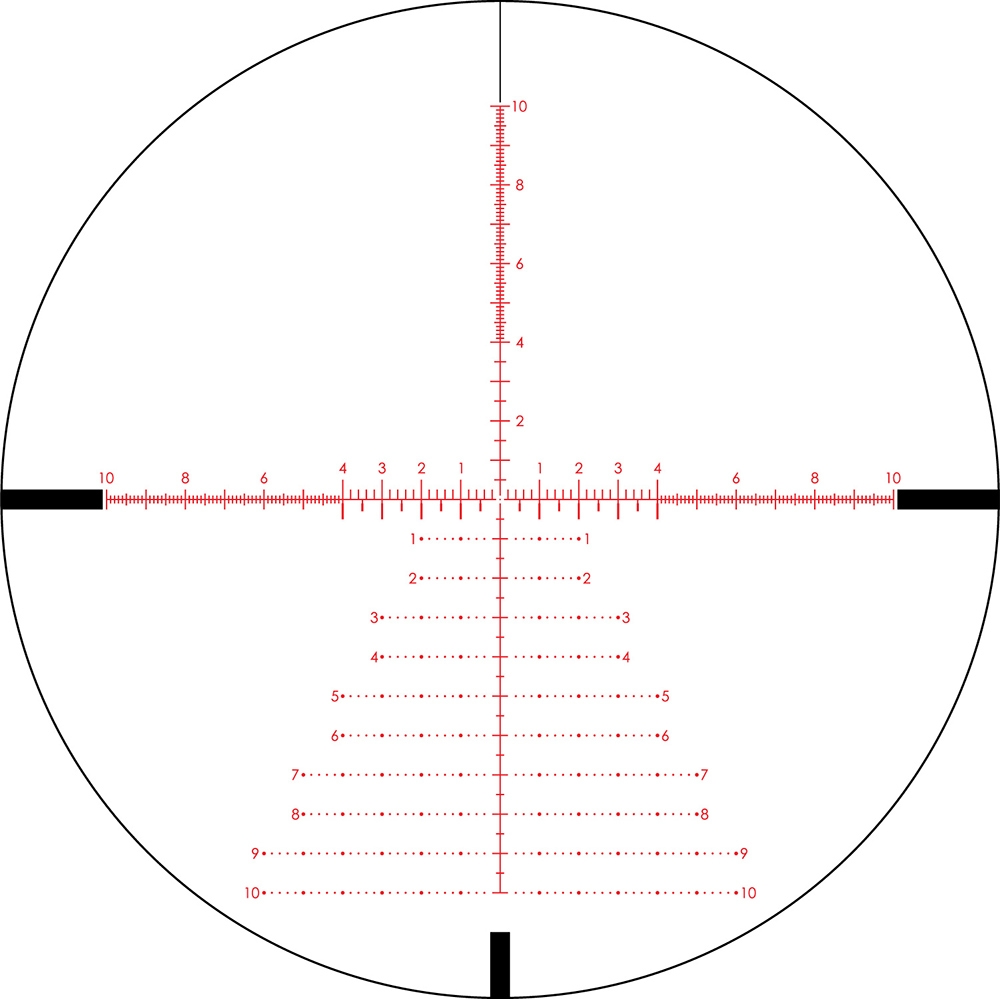

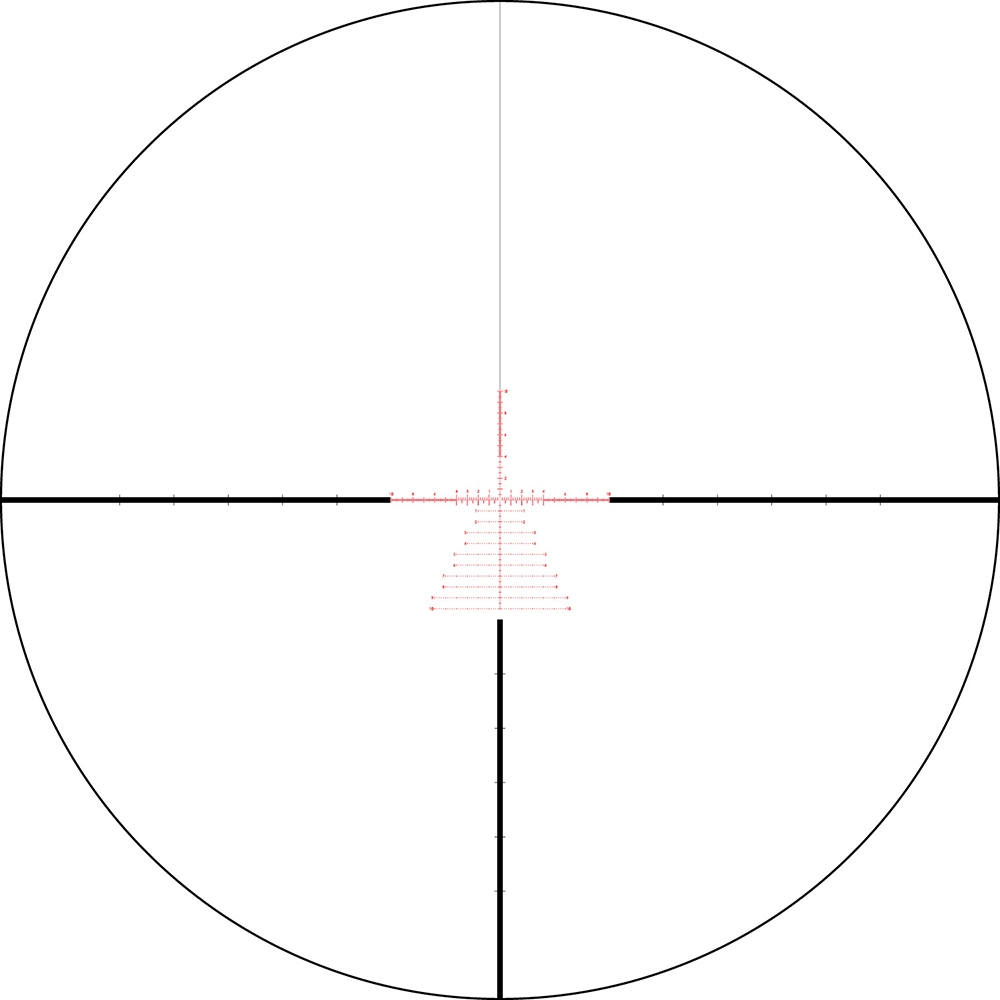

Full view

Close up

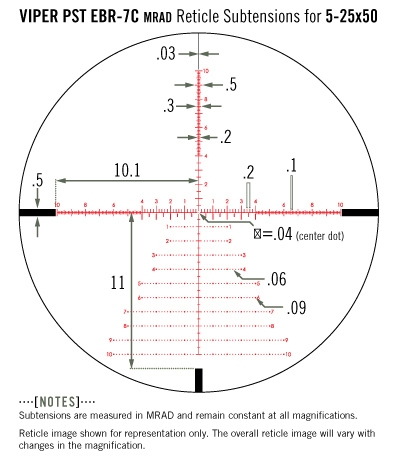

Subtension detail

EBR-7C Reticle (mrad)

The EBR-7C (Enhanced Battle Reticle) is a hashmarked ranging reticle based subtension lines for ranging, holdover, and windage corrections.

Accessories
