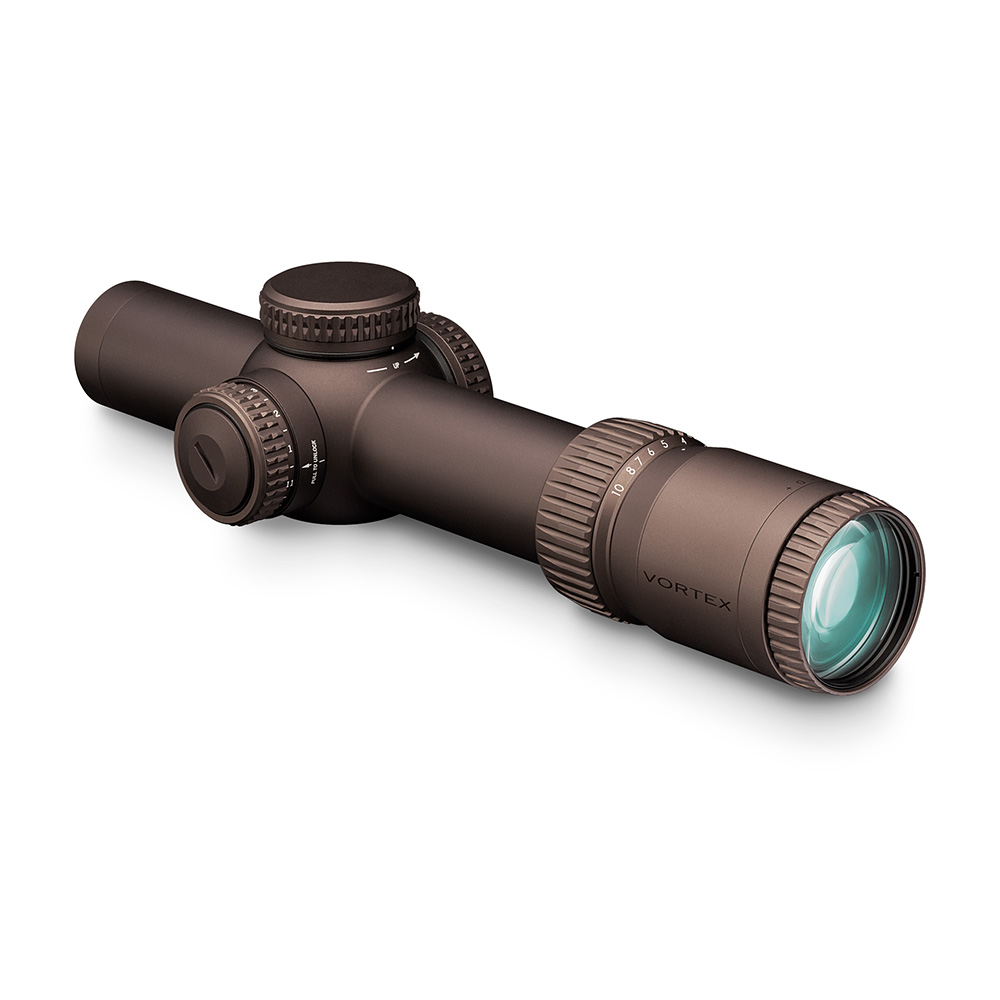

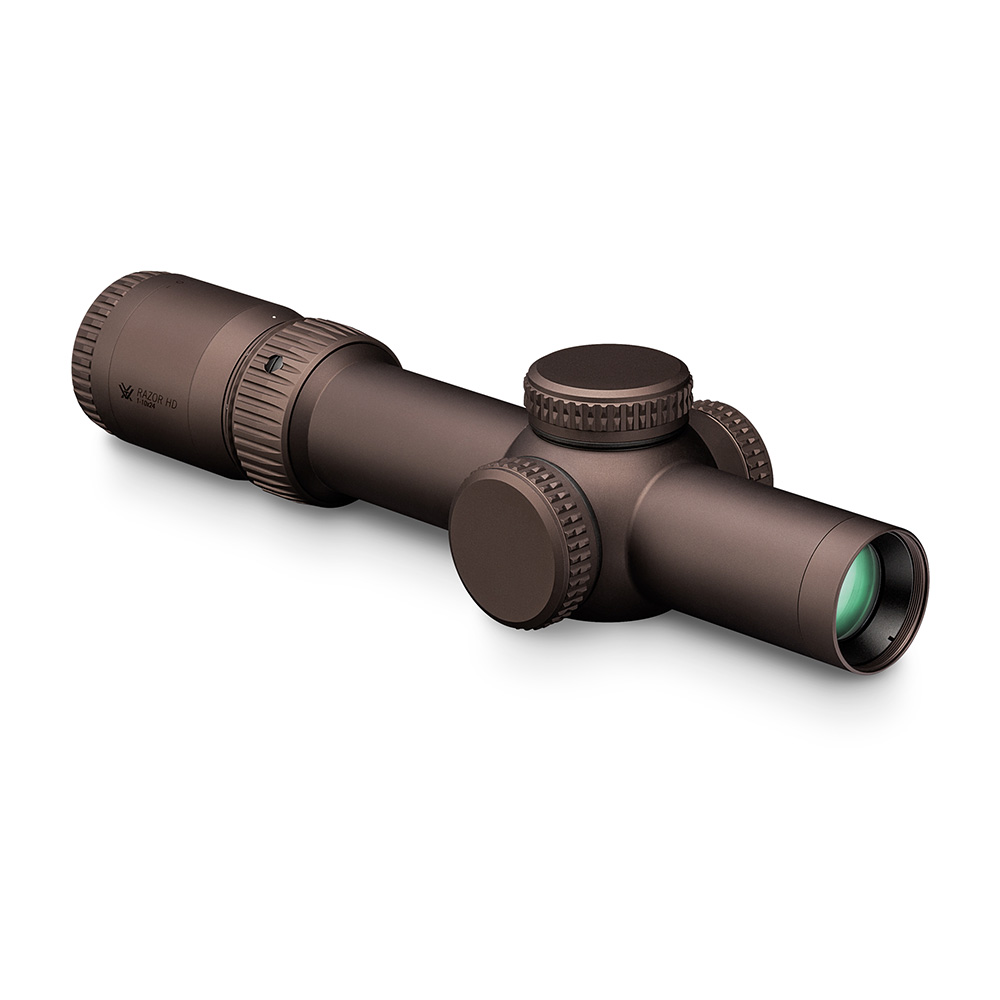

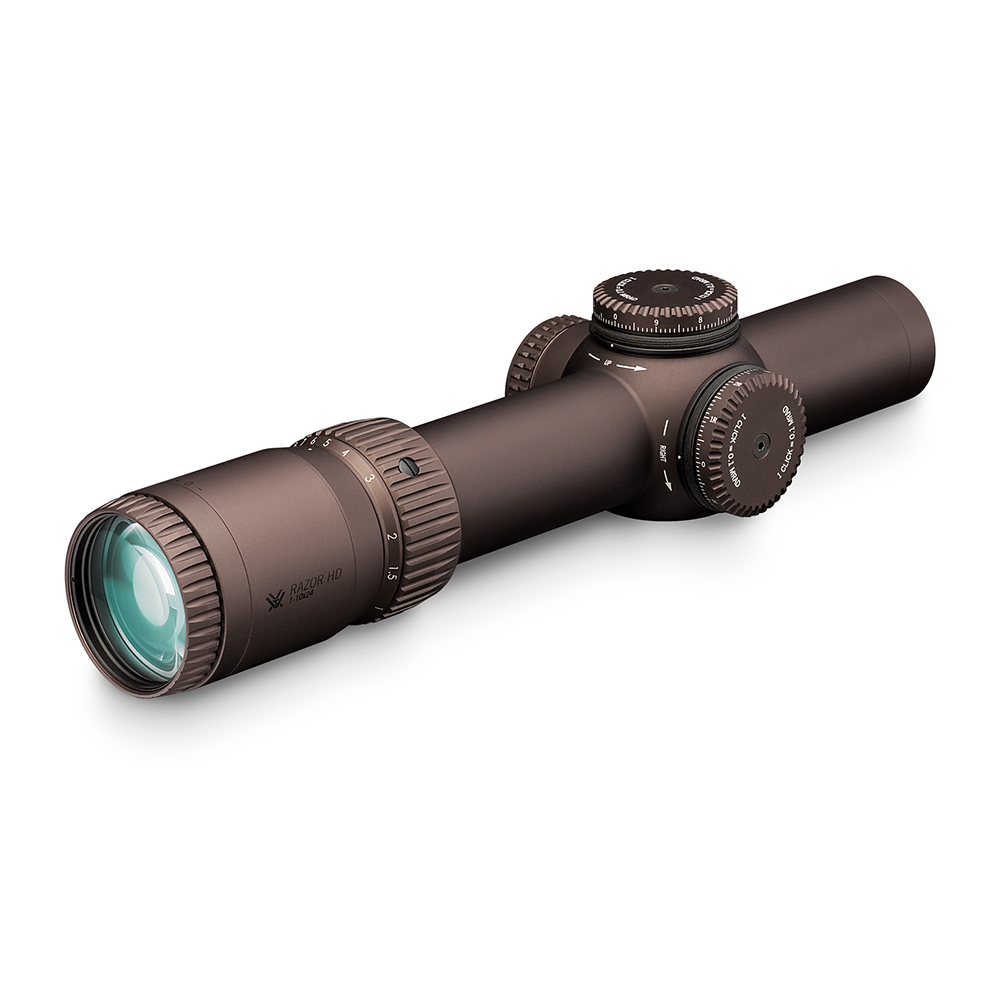

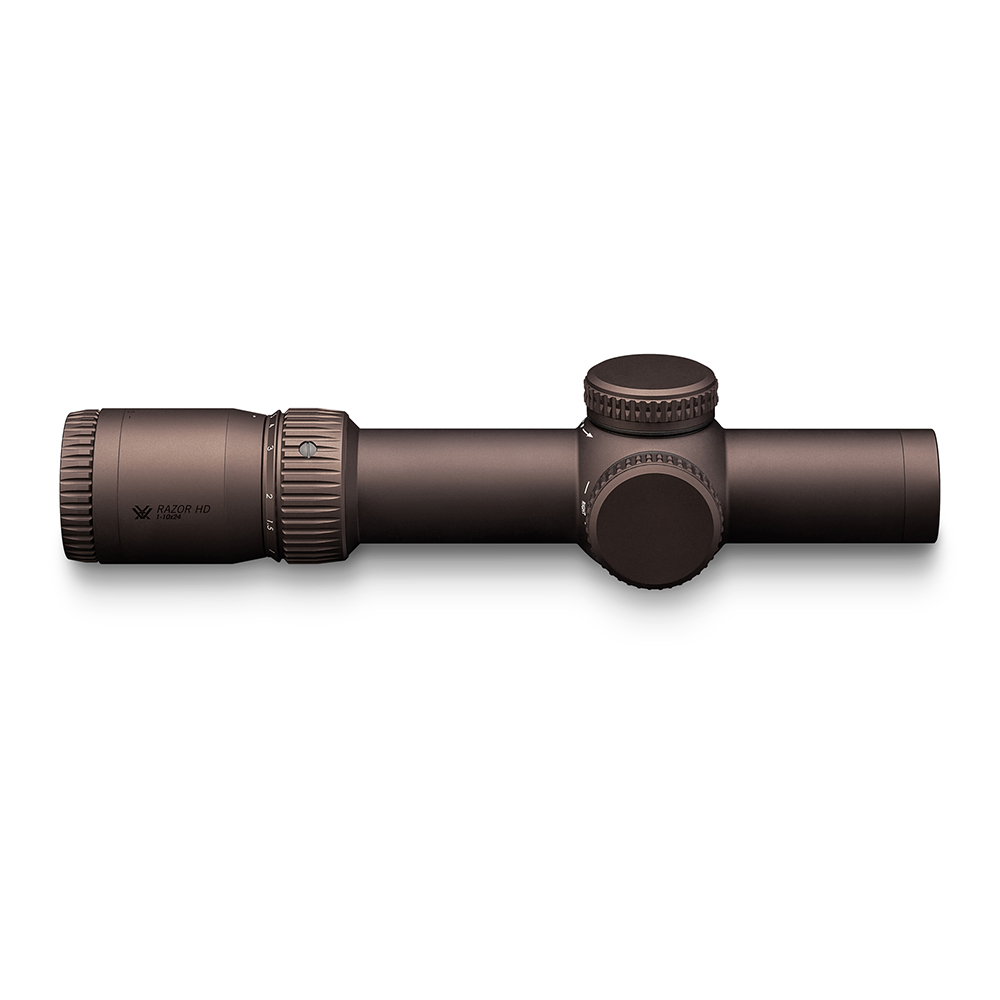

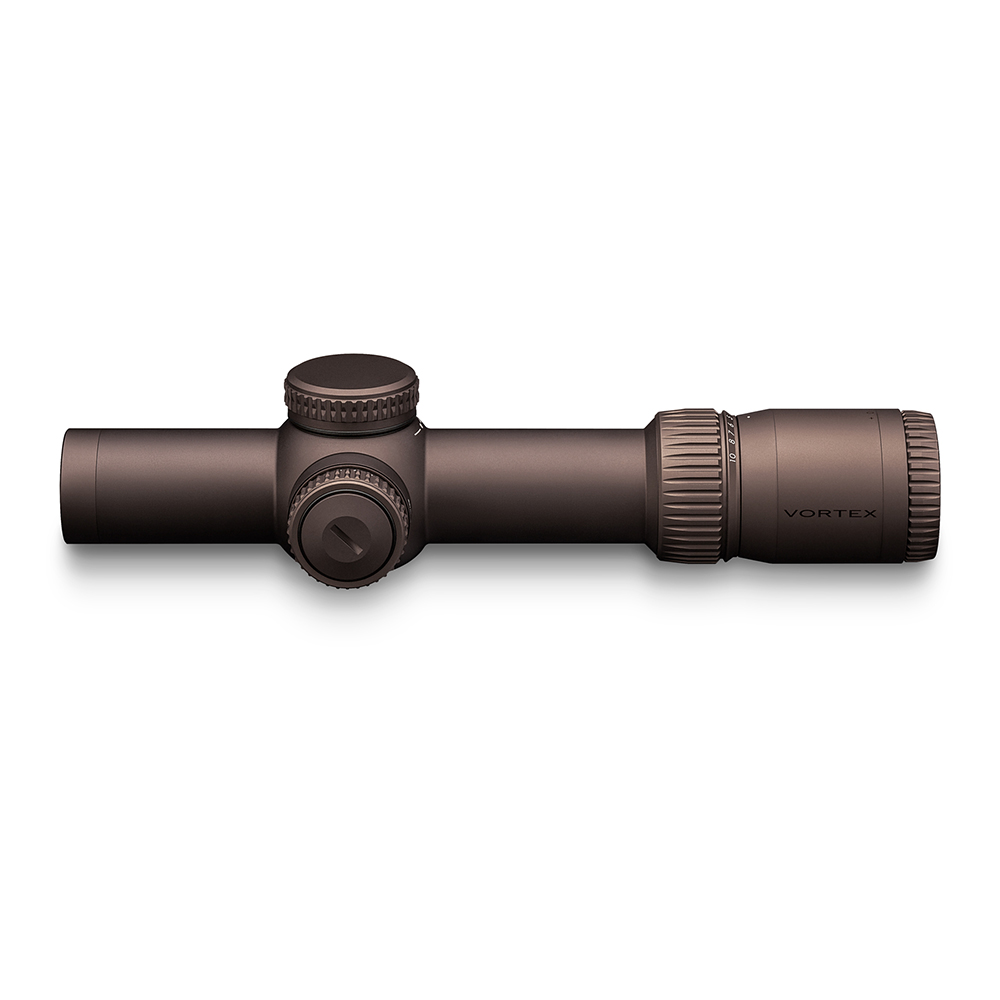

Vortex Razor HD Gen III 1-10x24 FFP Riflescope EBR-9 mrad

VT-RZR-11002

The Razor® HD Gen III 1-10x is nothing less than your opportunity to shoot without limits. The next evolution of our wildly popular Razor® line, the Razor® Gen III 1-10x24 brings the highest level of First Focal Plane performance
to those who demand the versatility of 1-10x power. Military, law enforcement, and competition shooters alike will love the clarity of an HD optical system and a crisp, illuminated reticle in a package that weighs the same as our
1-6x, but doesn’t sacrifice any durability. A true 1x on the low end and daylight bright illumination for reliable performance in all conditions make this a single solution for close-quarters and long-range.

MSRP/PDSF* CA$5,599

Reviews

Reviews



Specifications

Specifications

SKU RZR-11002
Magnification 1 – 10
Objective Lens Diameter 24 mm
Eye Relief 3.6 inches
Field of View 116–11.7 feet/100 yards
Tube Size 34 mm
Turret Style Low Capped
Adjustment Graduation .1 MRAD
Travel per Rotation 10 MRAD
Max Elevation Adjustment 30 MRAD
Max Windage Adjustment 30 MRAD
Parallax Setting Fixed @100 yds
Length 10.1 inches
Weight 21.5 ounces
Riflescope Manual (.pdf) Download PDF
Reticle Manual (.pdf) Download PDF
Included in the Box
  • Sunshade
  • Lens cloth
  • Battery CR2032

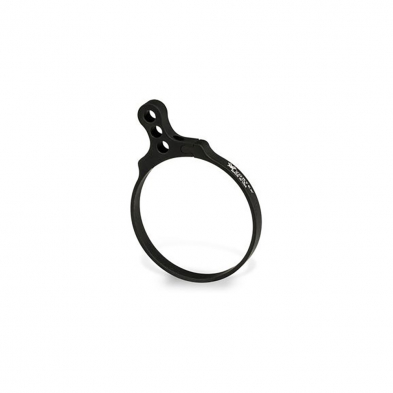

  • Throw lever
  • L-TEC Tool
Lengths
L1 L2 L3 L4 L5 L6
10.1 2.0 2.5 6.7 0.4 3.4
Heights
H1 H2
1.3 1.8

Dimensions measured in inches.

Optical Features

HD Optical System Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding color fidelity, edge-to-edge sharpness and light transmission.
XRPlus Fully Multi-Coated Premium proprietary coatings deliver the highest level of light transmission with multiple anti-reflective coatings on all air-to-glass surfaces for maximum brightness.
APO System Index-matched lenses correct color across the entire visual spectrum.
Optically Indexed Lenses Deliver optimum image sharpness and brightness with true reticle use for full ranging and holdover from edge to edge because of computer-controlled alignment during construction.
Daylight Bright Illumination Daylight bright, illuminated reticle aids in faster target acquistion in bright daylight conditions.

Construction Features

ArmorTek ® Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
Shockproof Rugged construction withstands recoil and impact.
Waterproof - IPX7 Designed to meet IPX7 waterproofing standards.
Fogproof Argon gas purging prevents internal fogging over a wide range of temperatures.
Argon Gas Argon gas-purged and o-ring-sealed for fogproof and waterproof performance.
Fogproof Argon gas purging prevents internal fogging over a wide range of temperatures.
Tube Size 34 mm diameter provides maximized internal adjustment and strength.
Hard Anodized Stealth Shadow Finish Highly durable anodization provides a low-glare matte surface and helps camouflage the shooter's position.
Aircraft-Grade Aluminum Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.

Internal Mechanism Design Features

Friction Reduction System Heat-treated, hardened-steel pad floats on the end of the turret screw and interfaces with a hardened steel ring on the erector tube for steel-on-steel contact. US Patent 7,958,665
Erector Tube System Precision-machined from premium brass alloy with anti-galling properties for strength and durability. Chromium vanadium erector spring, tumble-polished.

Convenience Features

L-Tec™ Tool Included with your scope for precise adjustments to the turret.
Locking Side Illumination Easily accessible and lockable illumination dial is located on the left side of turret housing. Features eleven intensity levels of illumination with off positions between each setting.

Reticle

Reticle

Close up

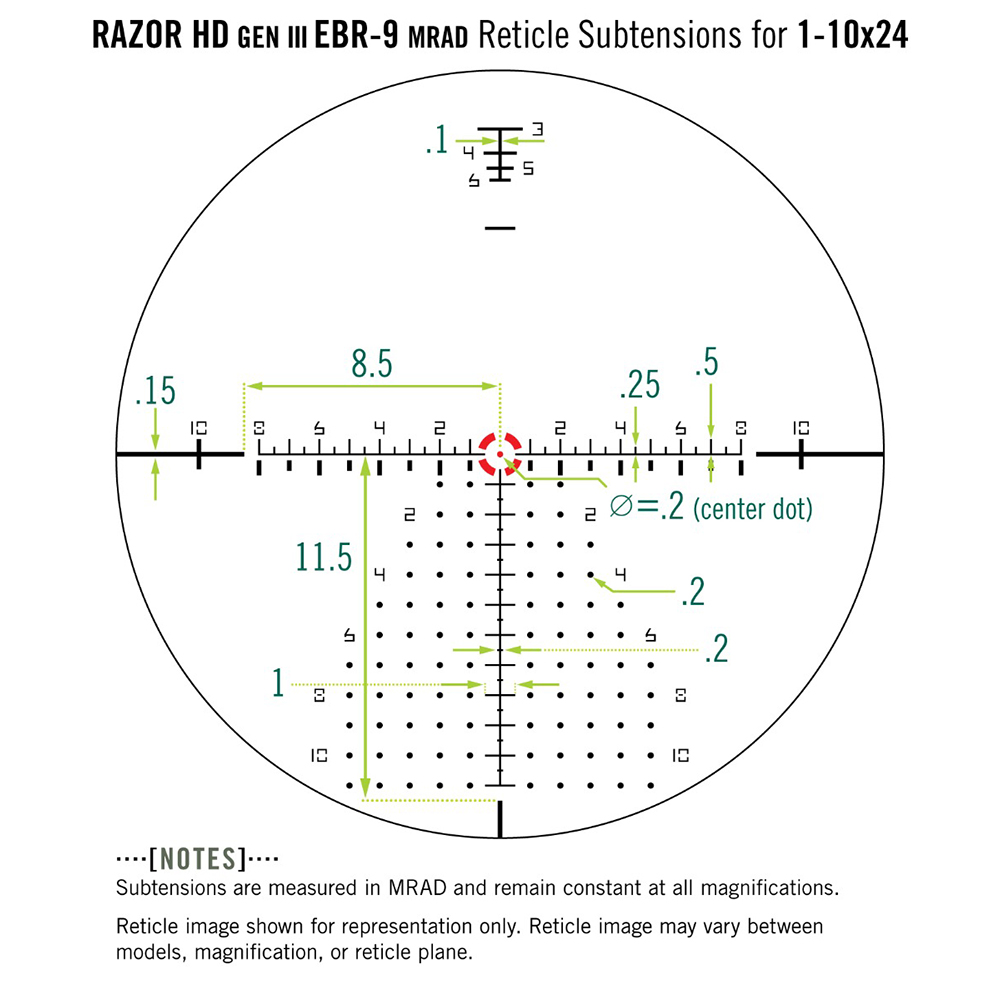

Subtension detail

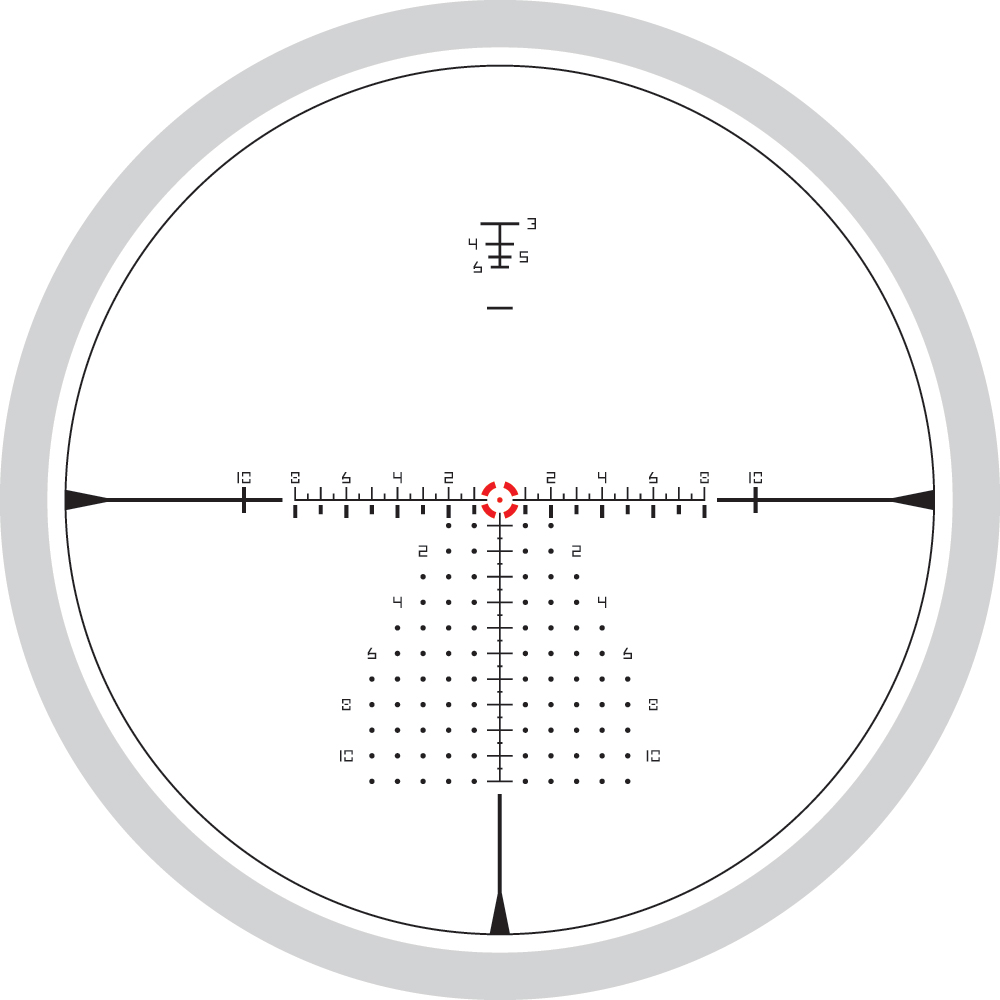

EBR-9 (mrad) Reticle

The EBR-9 (Enhanced Battle Reticle) is a hashmarked ranging reticle using mrad based subtension lines for ranging, holdover, and windage corrections.

Video

Video

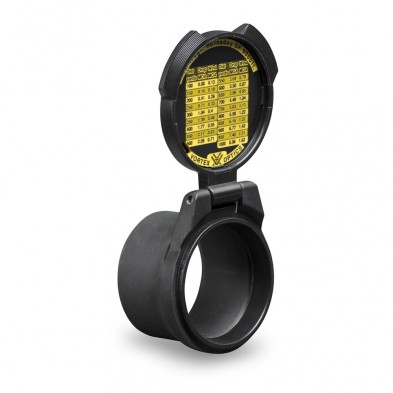

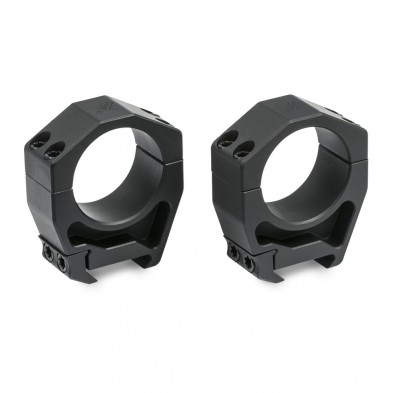

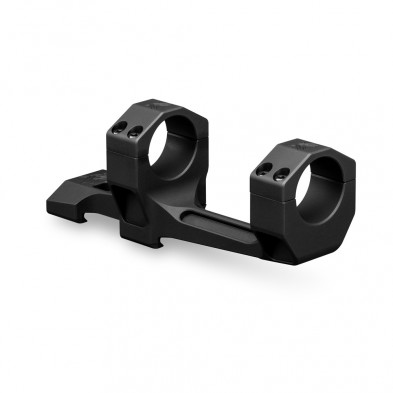

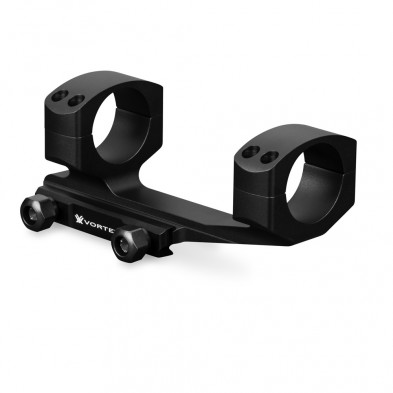

Accessories
