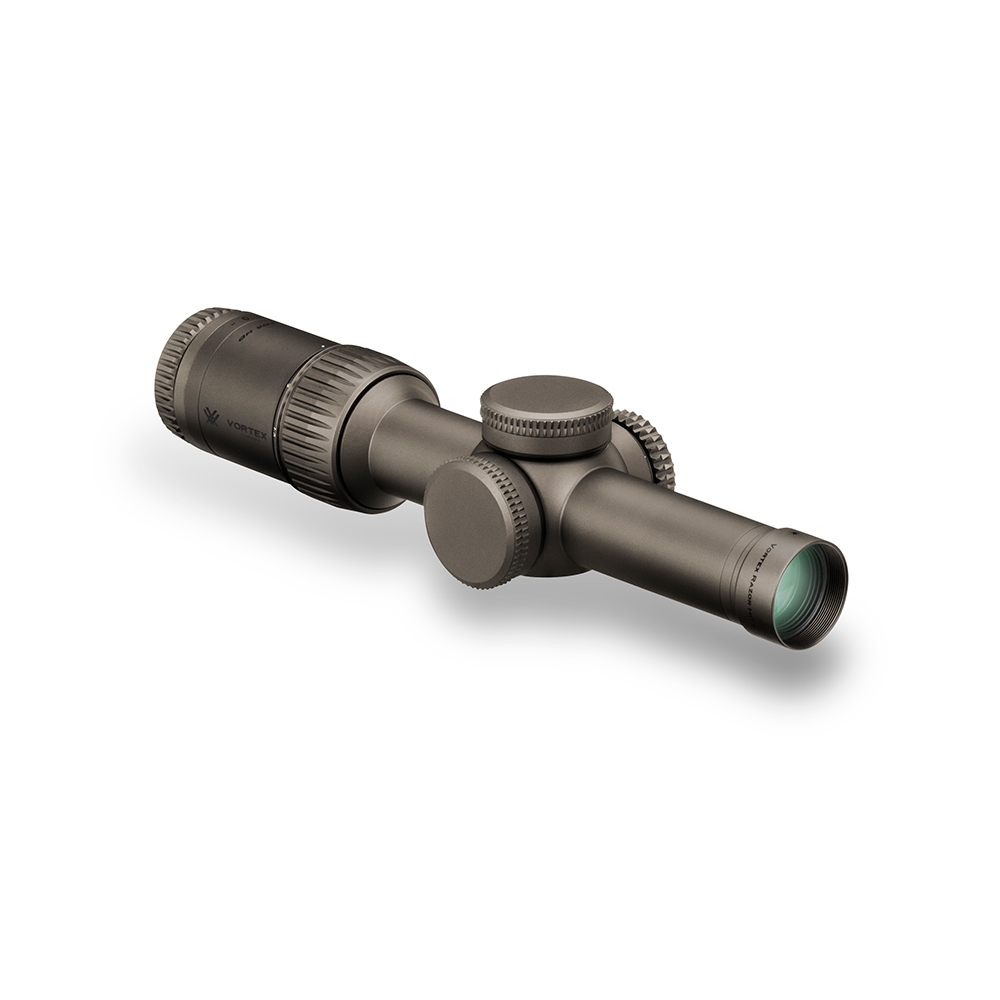

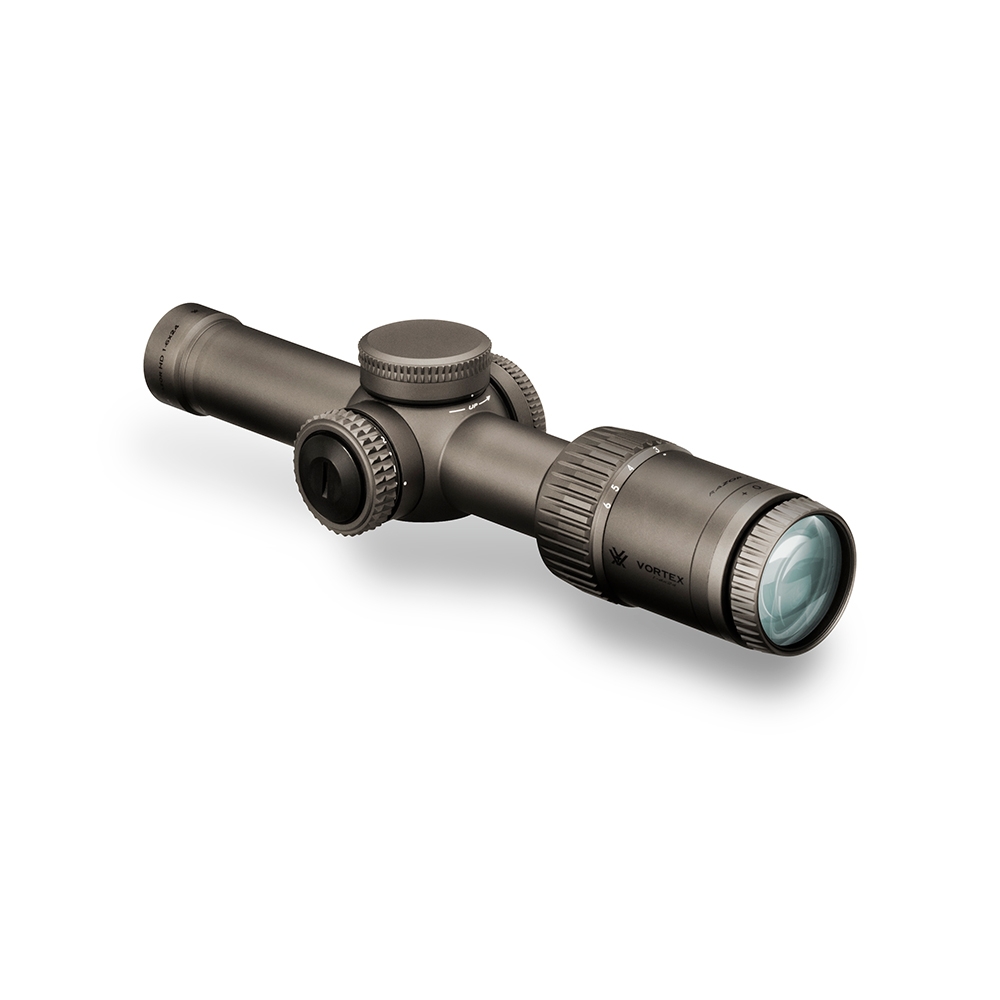

Vortex Razor Gen II HD-E 1-6x24 Riflescope VMR-2 mrad

VT-RZR-16009

Every component, feature and performance characteristic of the Razor HD Gen II-E 1-6×24 riflescope is so well thought out and executed, it’s near perfection. And in 2018, its nearly ¼ of a pound lighter. Ideal for the AR platform, the Gen II-E 1-6 is a top-tier optical solution for short to medium-range tactical applications. Optically, it delivers the highest level of clarity, resolution, colour accuracy, light transmission and edge-to-edge sharpness. The ultra-forgiving eyebox with generous eye relief generates a heads-up-display-like sight picture for fast target acquisition and optimal monitoring of the surrounding environment. A true, daylight-bright illuminated centre dot gives shooters ultimate close-quarters versatility.

MSRP/PDSF* CA$3,149

Reviews

Reviews



Specifications

Specifications

SKU VT-RZR-16009
Magnification 1 – 6
Objective Lens Diameter 24 mm
Eye Relief 4.0 inches
Field of View 115.2–20.5 feet/100 yards
Tube Size 30 mm
Turret Style Low Capped
Adjustment Graduation 0.2 mrad
Travel per Rotation 20 mrad
Max Elevation Adjustment 43 mrad
Max Windage Adjustment 43 mrad
Parallax Setting 100 yards
Length 10.1 inches
Weight 21.5 ounces
Riflescope Manual (.pdf) Download PDF
Reticle Manual (.pdf) Download PDF
Included in the Box
  • CR2032 battery
  • Lens cloth
Lengths
L1 L2 L3 L4 L5 L6
10.1 2.50 1.5 5.67 0.85 3.6
Heights
H1 H2
1.29 1.81

Dimensions measured in inches.

Optical Features

APO System Apochromatic objective lens system uses index-matched lenses to correct colour across the entire visual spectrum.
Optically Indexed Lenses Optimize image sharpness and brightness from edge to edge.
HD Lens Elements Premium HD (High Density) extra-low dispersion glass delivers the ultimate in resolution and colour fidelity, resulting in High Definition images.
XRPlus Fully Multi-Coated Premium proprietary coatings deliver the highest level of light transmission with multiple anti-reflective coatings on all air-to-glass surfaces for maximum brightness.
Plasma Tech Cuttting edge application process provides unparalleled coating durability and performance.
Second Focal Plane Reticle Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.
Illuminated Centre Dot Daylight bright illuminated centre dot provides a precise point-of-aim in all lighting conditions.
Locking Illumination Locks illumination at preferred setting.

Construction Features

Tube Size 30 mm diameter tube offers a versatile blend of adjustment, size and weight for a wide variety of shooting applications.
Single-Piece Tube Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
Aircraft-Grade Aluminum Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Waterproof O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments.
Fogproof Argon gas purging prevents internal fogging over a wide range of temperatures.
Shockproof Rugged construction withstands recoil and impact.
Hard Anodized Finish Highly durable hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter's position.
ArmorTek Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
Large Diameter Turrets Provide fast, accurate and easily read elevation and windage adjustments. Caps provide external protection for turret.

Internal Mechanism Design Features

Friction Reduction System Heat-treated, hardened-steel pad floats on the end of the turret screw and interfaces with a hardened steel ring on the erector tube for steel-on-steel contact. Prevents galling or deformation of the erector screw contact point for superior durability and repeatability. US Patent 7,958,665
Turret Screws Provides low-friction, wear-resistant performance: precision-machined from a silicon-brass alloy and treated with an advanced dry-film lubricant. Turret screw threads are precision machined to sub-2 micron tolerances (less than 78-millionths of an inch). Ultra-smooth operation and adjustments.
Erector Tube System Precision-machined from premium brass alloy with anti-galling properties for strength and durability. The chromium vanadium erector spring withstands compression, has high fatigue resistance and is tumble-polished to a mirror finish for micro-precise elevation and windage adjustments.

Convenience Features

Fast Focus Eyepiece Allows quick and easy reticle focusing.
Locking Side Illumination Easily accessible and lockable illumination dial is located on the left side of turret housing. Features eleven intensity levels of illumination with off positions between each setting.

Reticle

Reticle

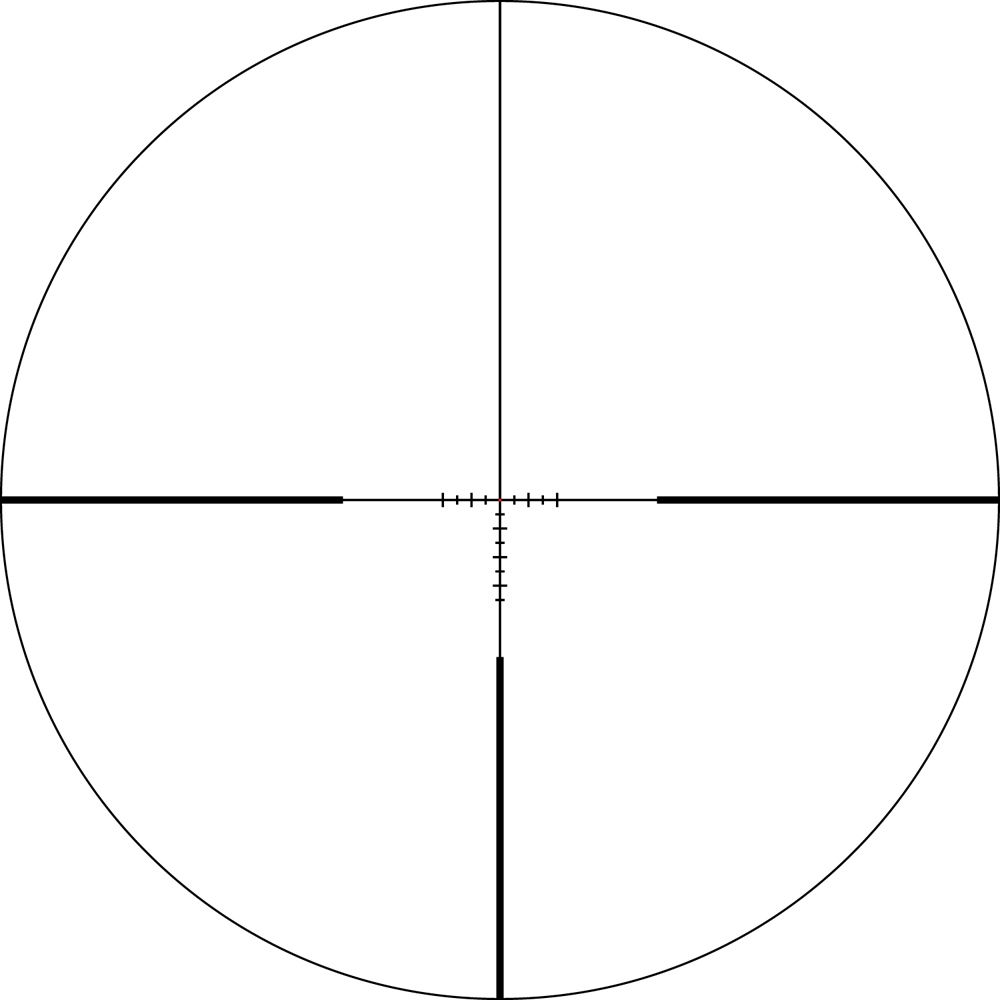

Full view

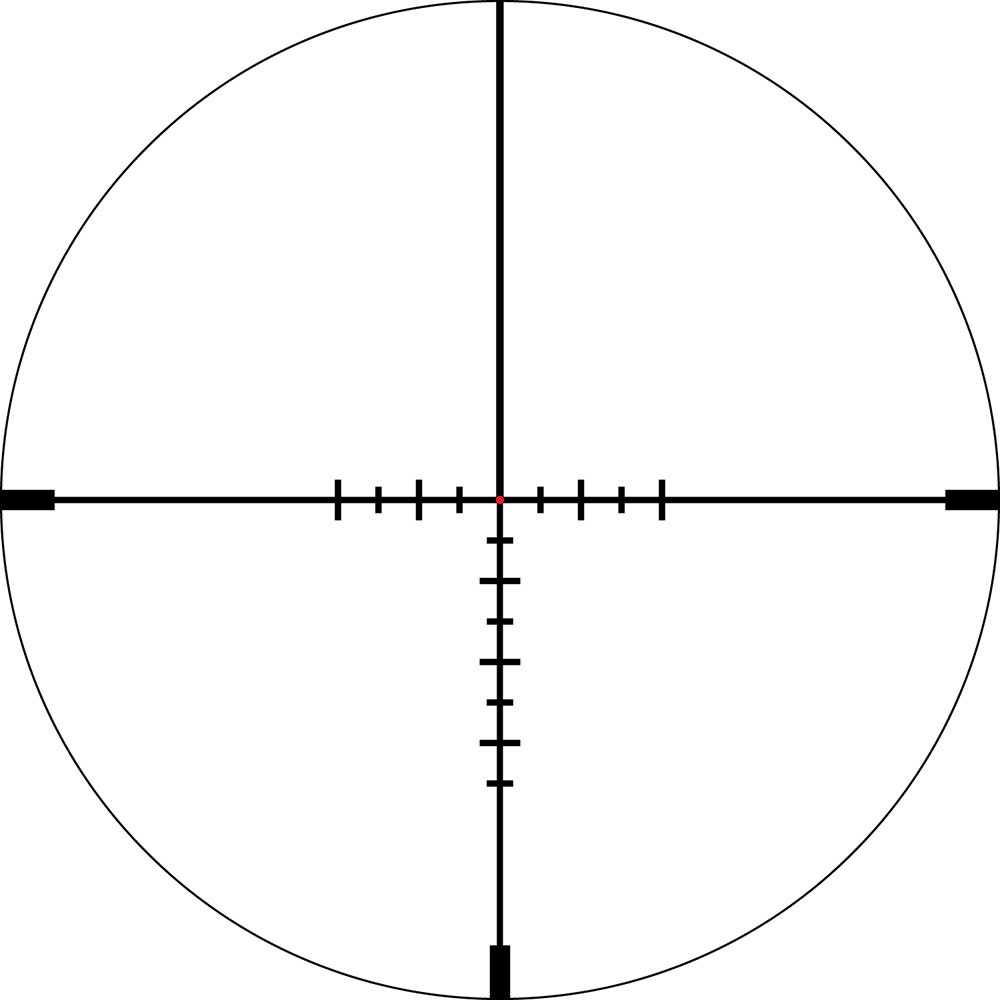

Close up

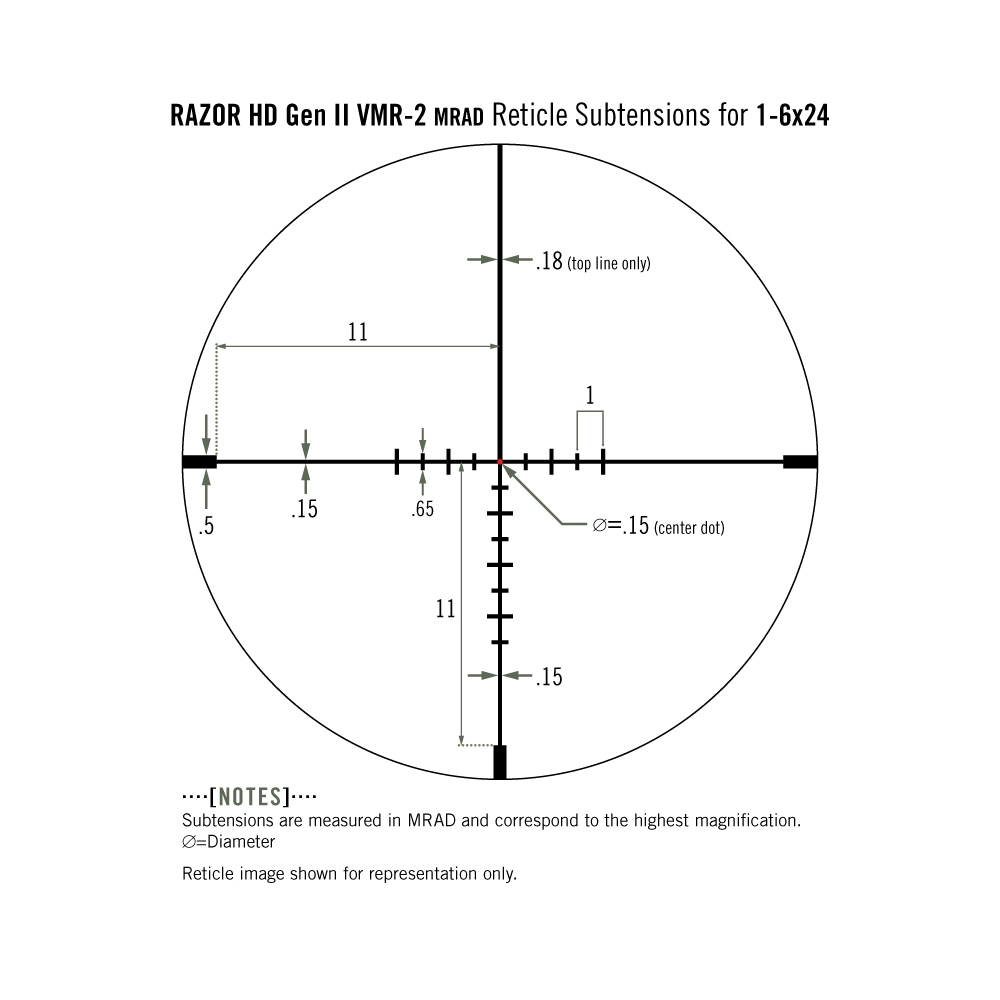

Subtension detail

VMR-2 Reticle (mrad)

The VMR-2 is a hashmarked ranging reticle with an illuminated centre dot that uses mrad-based subtension lines for ranging, holdover and windage corrections.
