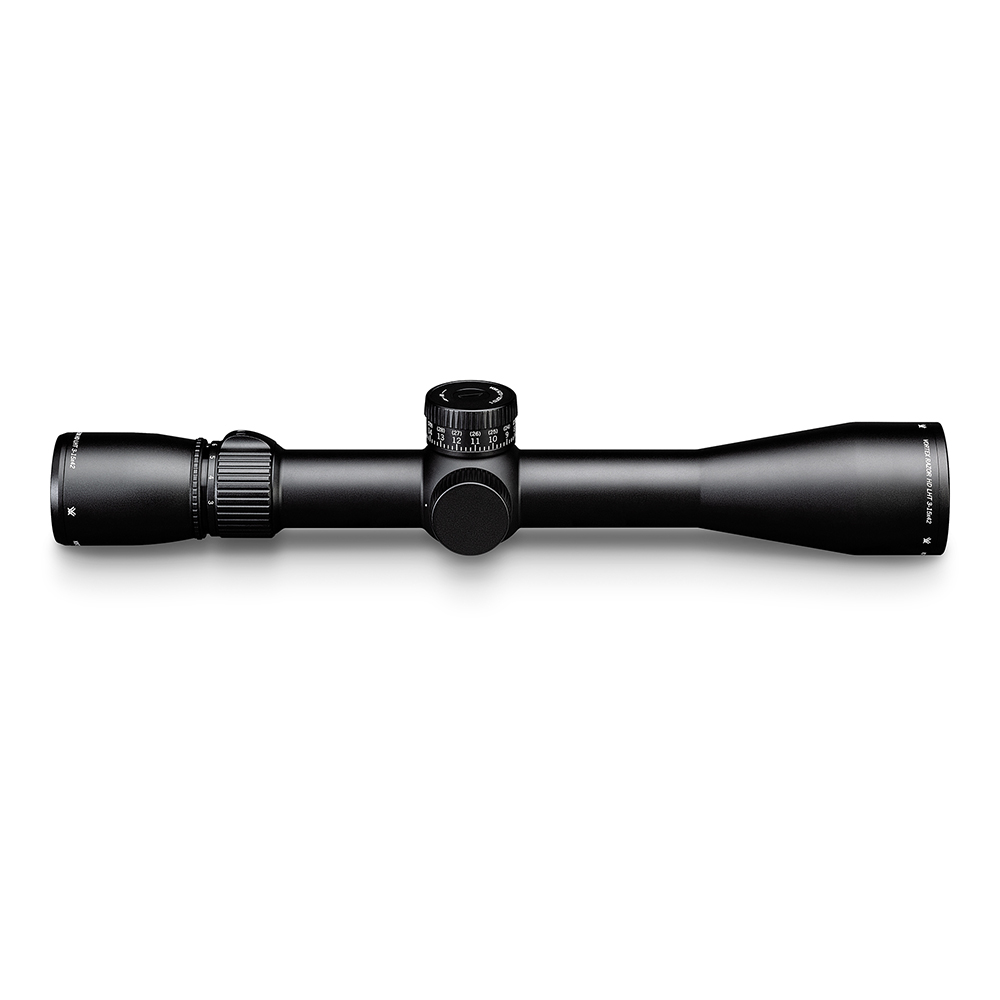

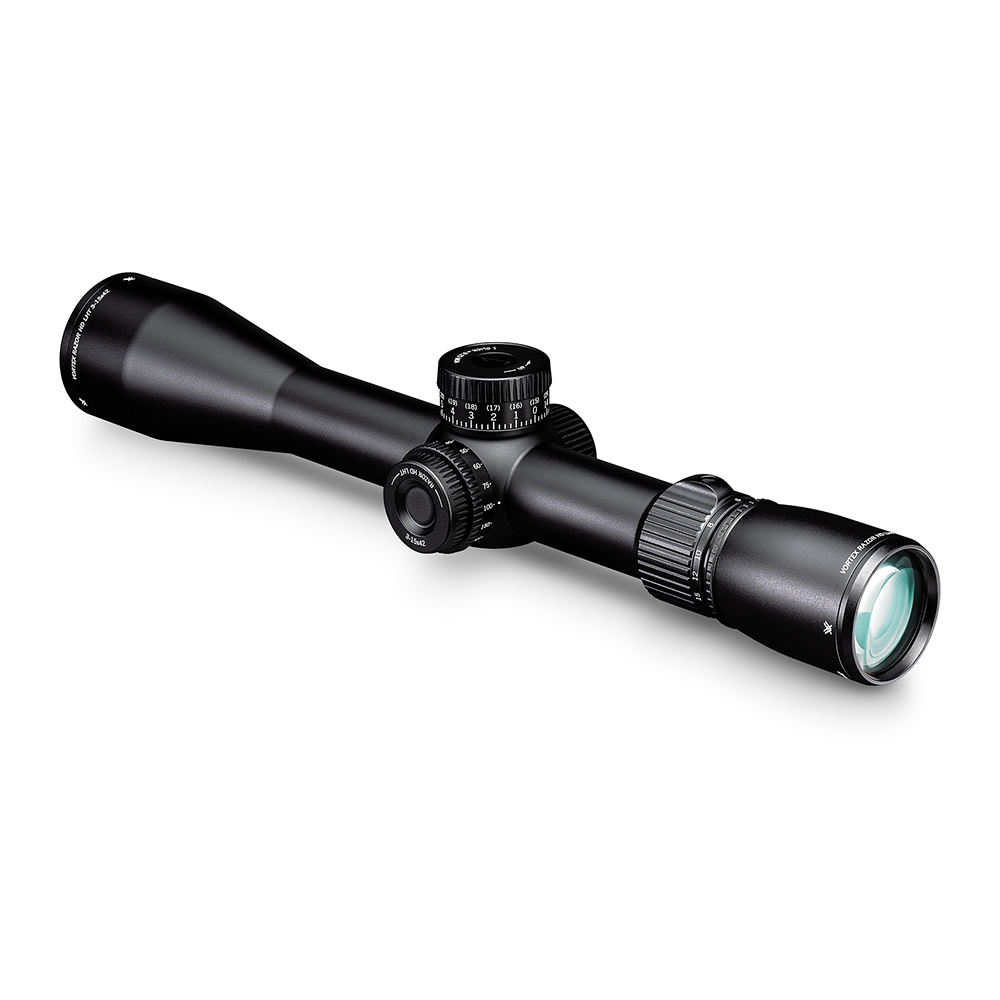

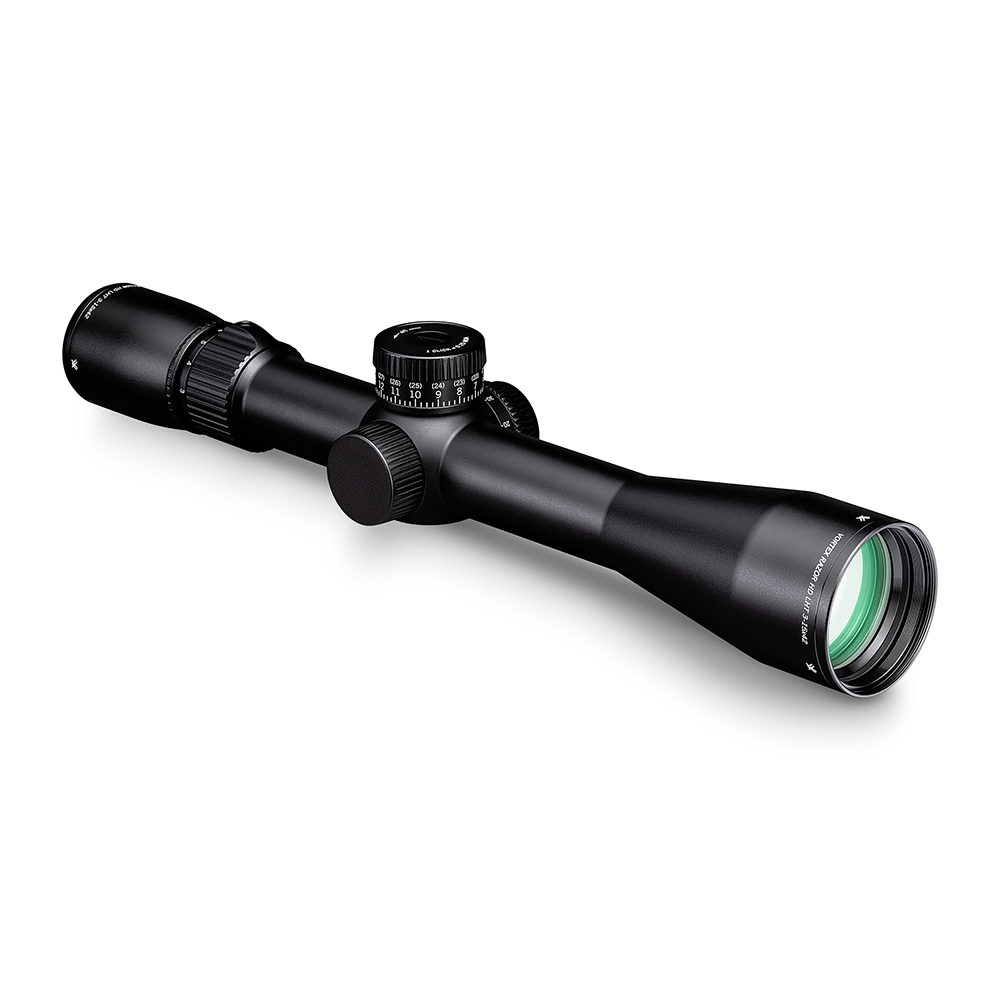

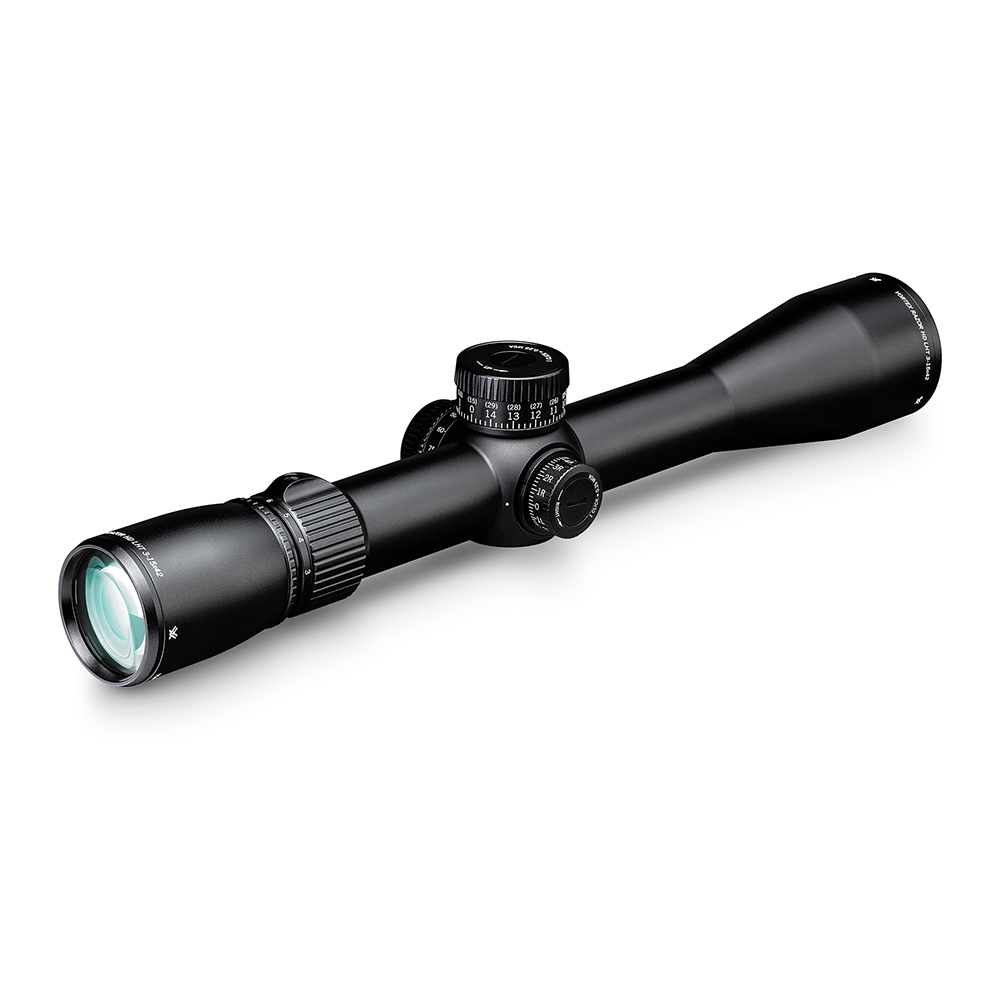

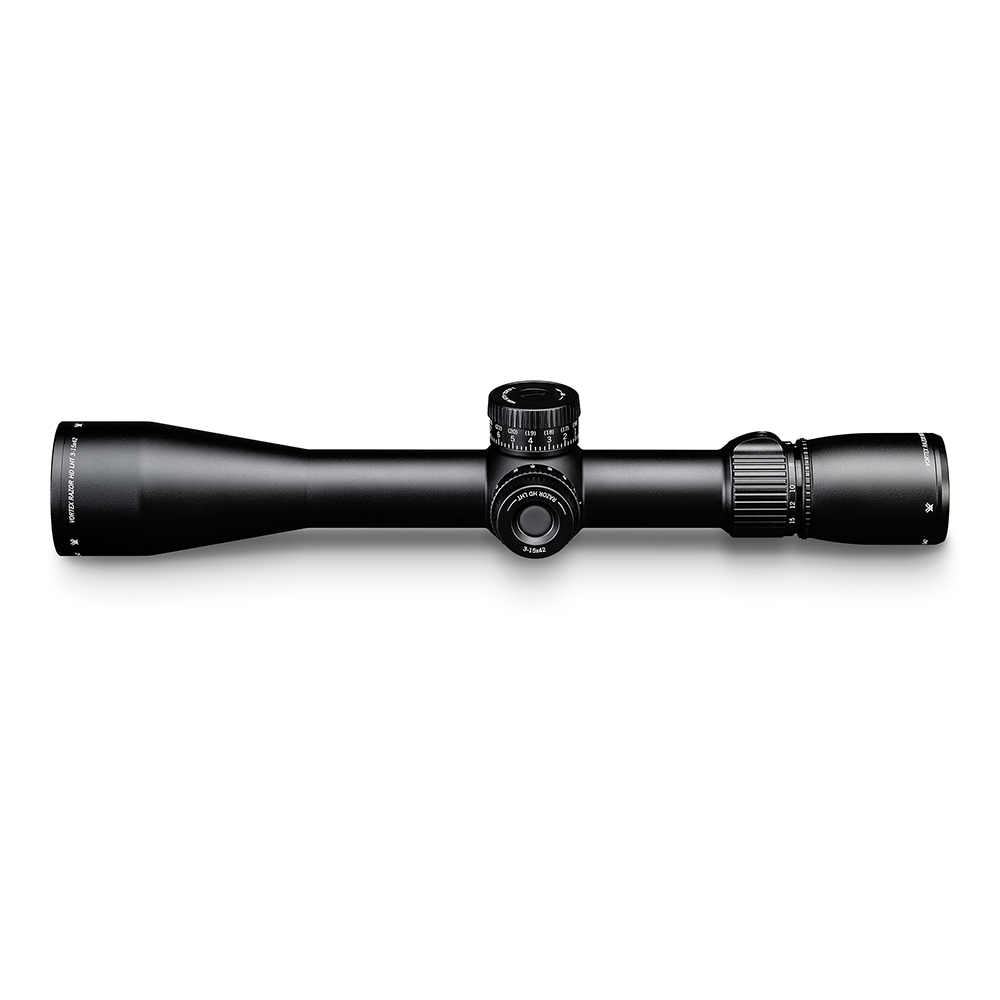

Vortex Razor HD LHT 3-15x42 SFP Riflescope with HSR-5i MOA

VT-RZR-31501

One scope to rule them all. From dark-timber whitetails, to executing precision long-range shots on an open-country mule deer, and everything in between - there’s the lightweight, second focal plane Razor HD LHT. Stunning, High Definition optical system delivers a crystal-clear sight picture with tack-sharp resolution. Turn every second of legal shooting light into opportunity. Take to the field with confidence knowing you’ve sacrificed nothing with the Razor HD LHT.

MSRP/PDSF* CA$2,399

Reviews

Reviews



Specifications

Specifications

SKU RZR-31501
Magnification 3 – 15
Objective Lens Diameter 42 mm
Eye Relief 3.8 inches
Field of View 35.3-7.0 ft/100 yards
Tube Size 30 mm
Turret Style Locking/Zero Stop
Windage Turret Style Capped
Adjustment Graduation .25 MOA
Travel per Rotation 15 MOA
Max Elevation Adjustment 80 MOA
Max Windage Adjustment 80 MOA
Parallax Setting 20 yards to infinity
Length 13.3 inches
Weight 19.1 oz
Riflescope Manual (.pdf) Download PDF
Reticle Manual (.pdf) Download PDF
Included in the Box
  • Sunshade
  • Lens Covers
  • Lens Cloth
  • CR2032 battery
Lengths
L1 L2 L3 L4 L5 L6
13.3 2.6 2.0 6.2 3.7 3.4
Heights
H1 H2
2.0 1.7

Dimensions measured in inches.

Optical Features

HD Optical System Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding color fidelity, edge-to-edge sharpness and light transmission.
XRPlus Fully Multi-Coated Premium proprietary coatings deliver the highest level of light transmission with multiple anti-reflective coatings on all air-to-glass surfaces for maximum brightness.
APO System Index-matched lenses correct color across the entire visual spectrum.
Optically Indexed Lenses Deliver optimum image sharpness and brightness with true reticle use for full ranging and holdover from edge to edge because of computer-controlled alignment during construction.
Second Focal Plane Reticle Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.
Illuminated Center Dot Daylight bright illuminated center dot provides a precise point-of-aim in all lighting conditions.

Construction Features

Tube Size 30 mm diameter provides maximized internal adjustment and strength.
Single-Piece Tube Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
Aircraft-Grade Aluminum Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
ArmorTek ® Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
Waterproof O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
Shockproof Rugged construction withstands recoil and impact.
Fogproof Argon gas purging prevents internal fogging over a wide range of temperatures.
Locking Elevation Turret Integrated locking mechanism prevents accidental adjustments. Elevation turret provides fast, accurate, easily read elevation adjustments. Patent pending.
Large Diameter Capped Windage Turret Provide fast, accurate and easily read windage adjustments. Cap provides external protection for windage turret.

Convenience Features

RevStop™ Zero System Patented streamlined design offers an easy to set, rock-solid return to zero after turret adjustments.

Reticle

Reticle

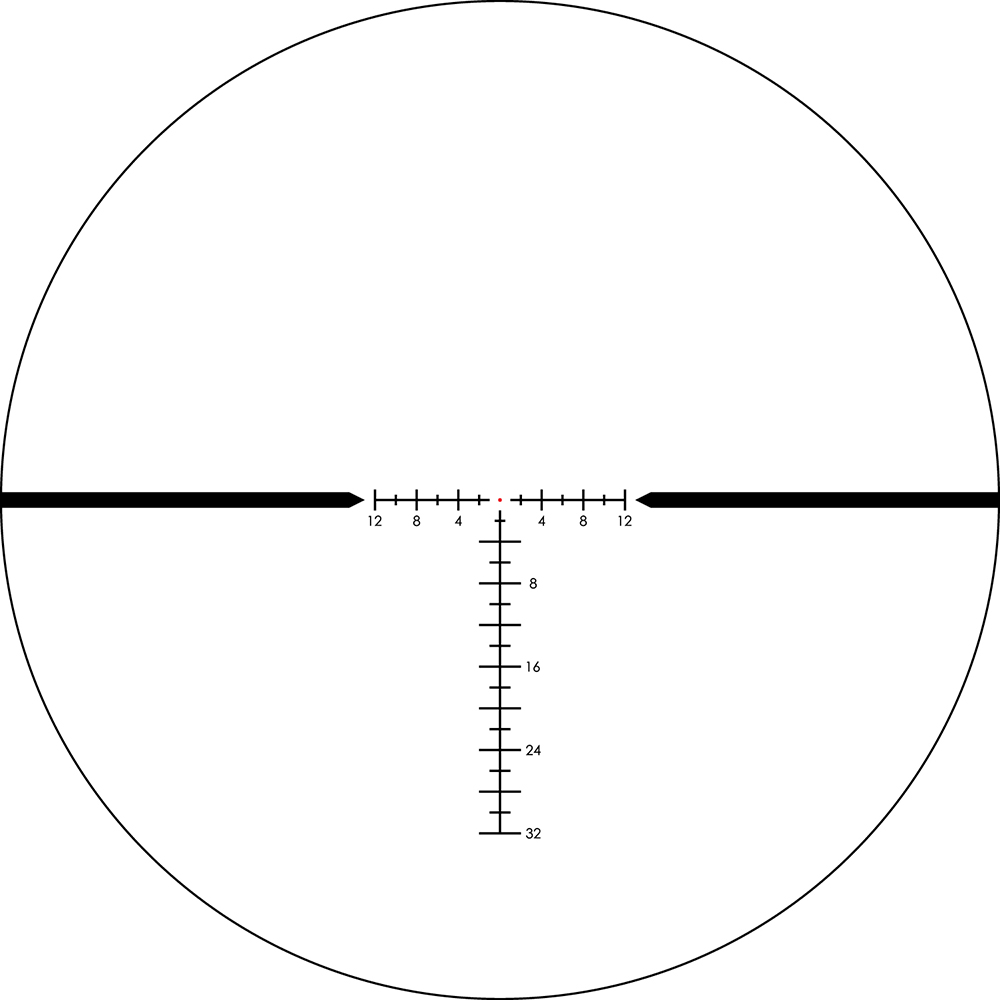

Full View

Close up

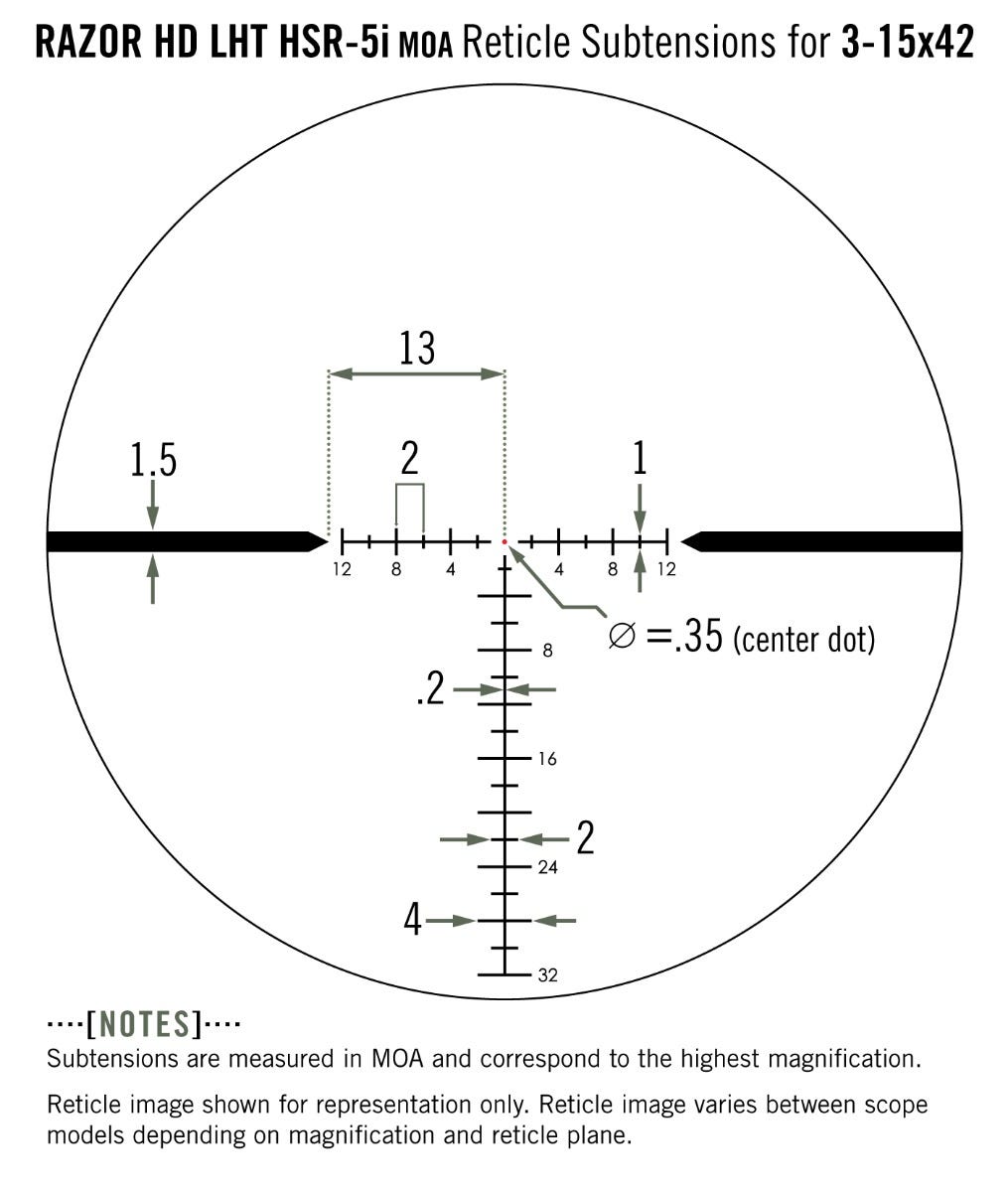

Subtension detail

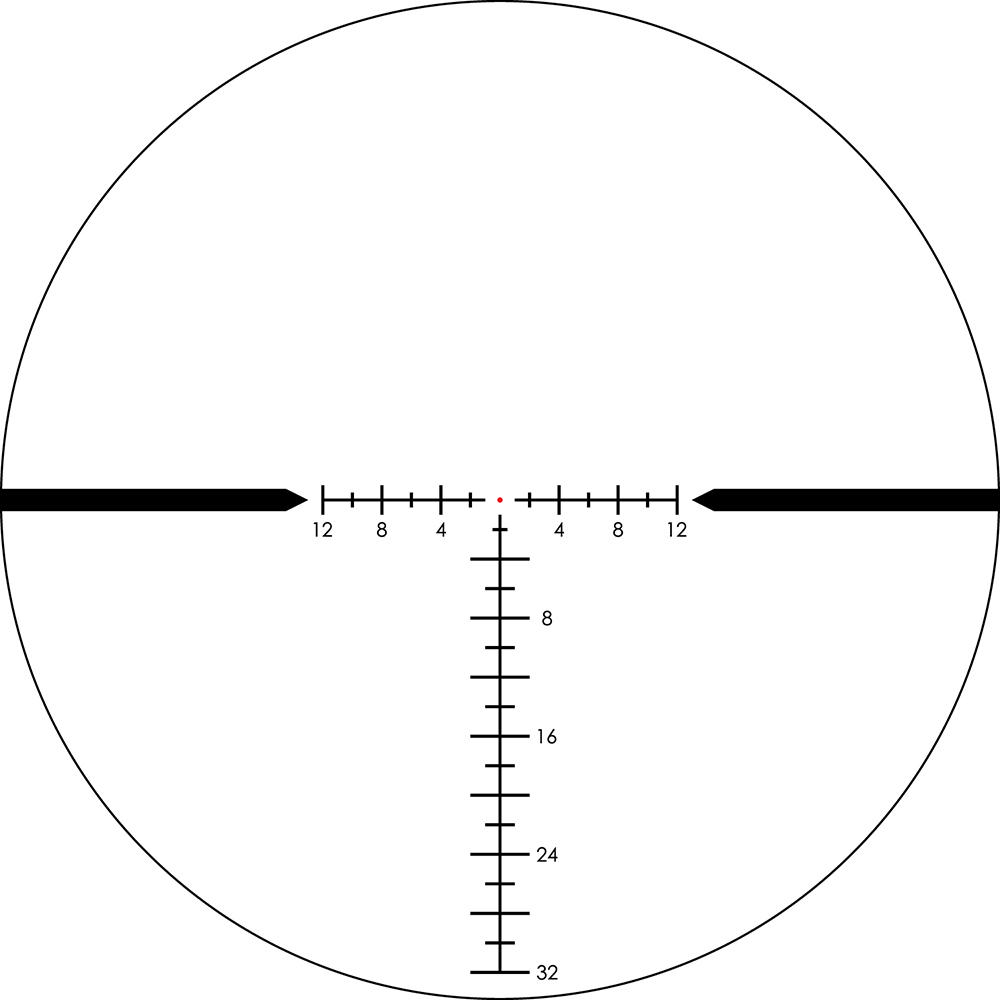

HSR-5i (MOA) Reticle

Ideal for those who want enough information to utilize personalized ballistics, but prefer a clean look. The HSR-5i reticle can be used to effectively determine ranges, holdovers, windage corrections and moving target leads. The fine center crosshair subtensions on the HSR-5i reticle were carefully chosen to provide the optimum balance between precision aiming and low light visibility.

Video

Video

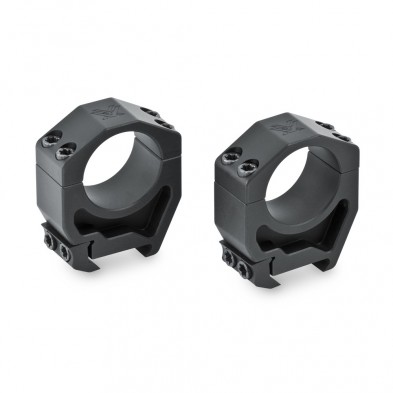

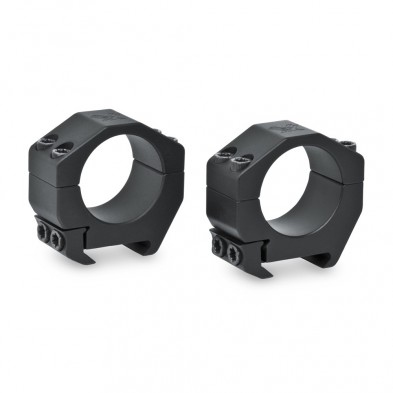

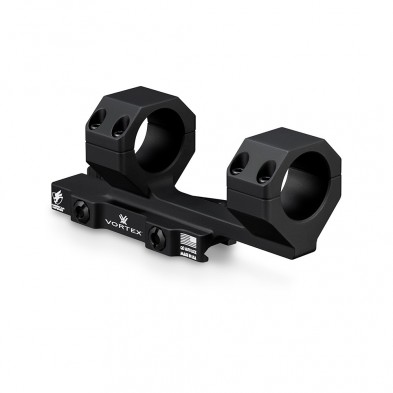

Accessories
