Vortex Razor LHT 4.5-22x50 FFP XLR-2 mrad

VT-RZR-42202

The Razor® HD LHT™ 4.5-22x50 FFP delivers a stunning HD optical system and rugged build in a first focal plane hunting scope that’s among the lightest in its class, perfect for open-country hunters. The XLR-2 reticle system is intuitive, easy to use, illuminated, and built to get the most out of the FFP reticle. Our RevStop™ Zero System provides a reliable return to zero if you need to dial in the field, and a locking elevation turret keeps your zero safe.

MSRP/PDSF* CA$2,999

Reviews

Reviews



Specifications

Specifications

SKU RZR-42202
Magnification 4.5 – 22
Objective Lens Diameter 50 mm
Eye Relief 4.0 inches
Field of View 23.5-4.7 ft/100 yards
Tube Size 30 mm
Turret Style Locking- Exposed
Windage Turret Style Capped
Elevation Adjustment Graduation .1 MRAD
Windage Adjustment Graduation .1 MRAD
Elevation Travel per Rotation 6 MRAD
Windage Travel per Rotation 6 MRAD
Max Elevation Adjustment 22.4 MRAD
Max Windage Adjustment 12.7 MRAD
Parallax Setting 25 yards to infinity
Length 13.3 inches
Weight 21.7 oz
Riflescope Manual (.pdf) Download PDF
Reticle Manual (.pdf) Download PDF
Included in the Box
  • Sunshade
  • Tethered Lens Covers
  • Lens Cloth
  • RevStop Zero Ring
  • CR2032 battery
Lengths
L1 L2 L3 L4 L5 L6
13.3 1.9 2.2 5.6 3.4 4.2
Heights
H1 H2
2.3 1.7

Dimensions measured in inches.

Features

First Focal Plane Reticle The first focal plane XLR-2 reticle is optimized for long range hunting and shooting. The scale of the reticle remains in proportion to the zoomed image making for accurate holdovers and ranging at all magnifications.
HD Optical System Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding colour fidelity, edge-to-edge sharpness and light transmission.
Locking Elevation Turret Integrated locking mechanism prevents accidental adjustments. Elevation turret provides fast, accurate, easily read elevation adjustments. Patent pending.
RevStop™ Zero System Patented streamlined design offers an easy to set, rock-solid return to zero after turret adjustments.
XR™ Plus Fully Multi-Coated Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance.
APO System Index-matched lenses correct color across the entire visual spectrum.
Single-Piece Tube Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
Aircraft-Grade Aluminum Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
ArmorTek ® Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
Waterproof O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
Shockproof Rugged construction withstands recoil and impact.
Fogproof Argon gas purging prevents internal fogging over a wide range of temperatures.
Low-Glare Matte Black Anodized Corrosion and wear resistant anodization provides low glare matte surface and helps camouflage the shooter's position.

Reticle

Reticle

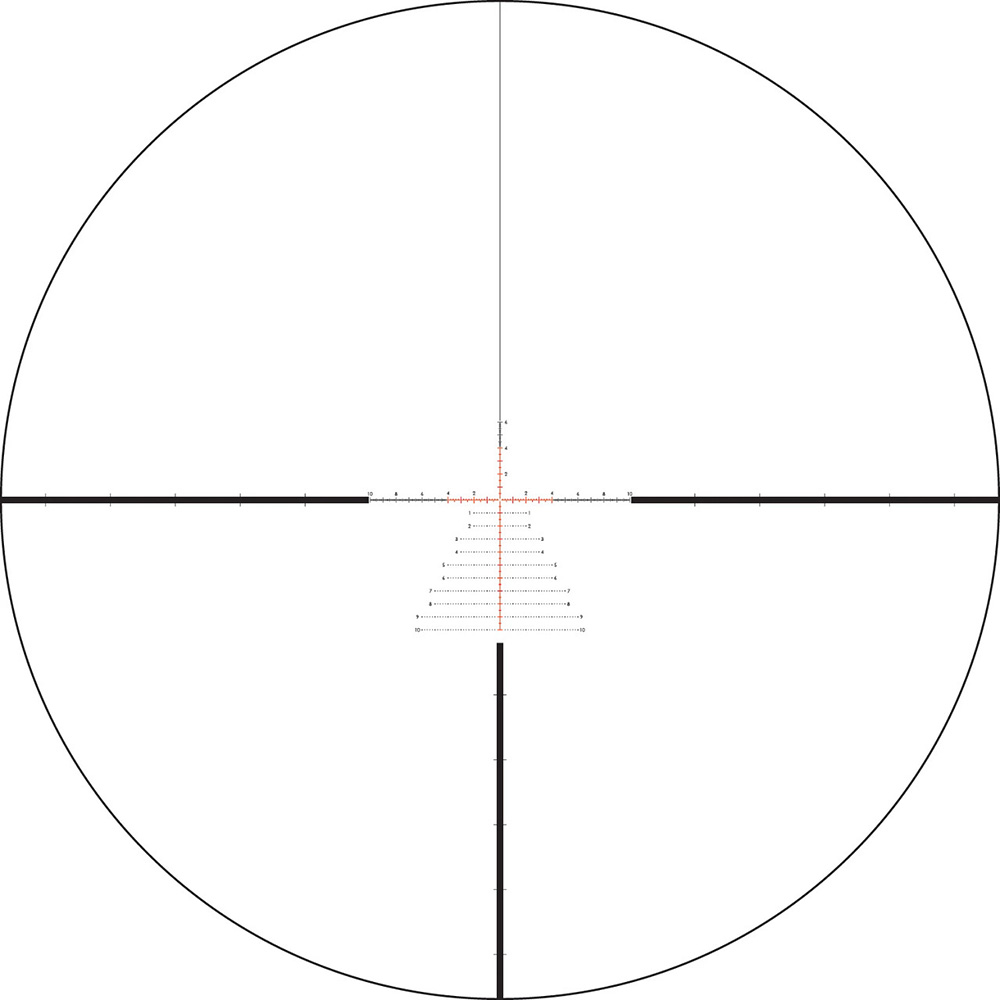

Full view

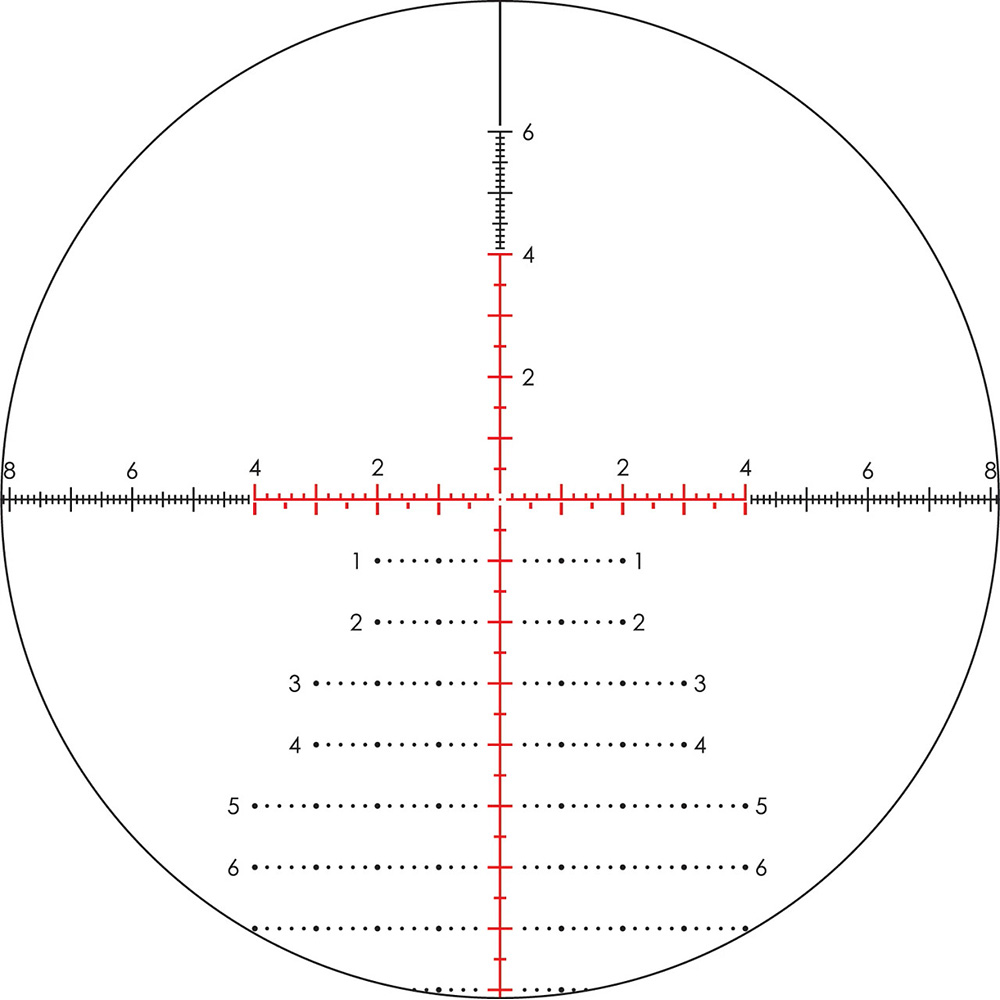

Close up

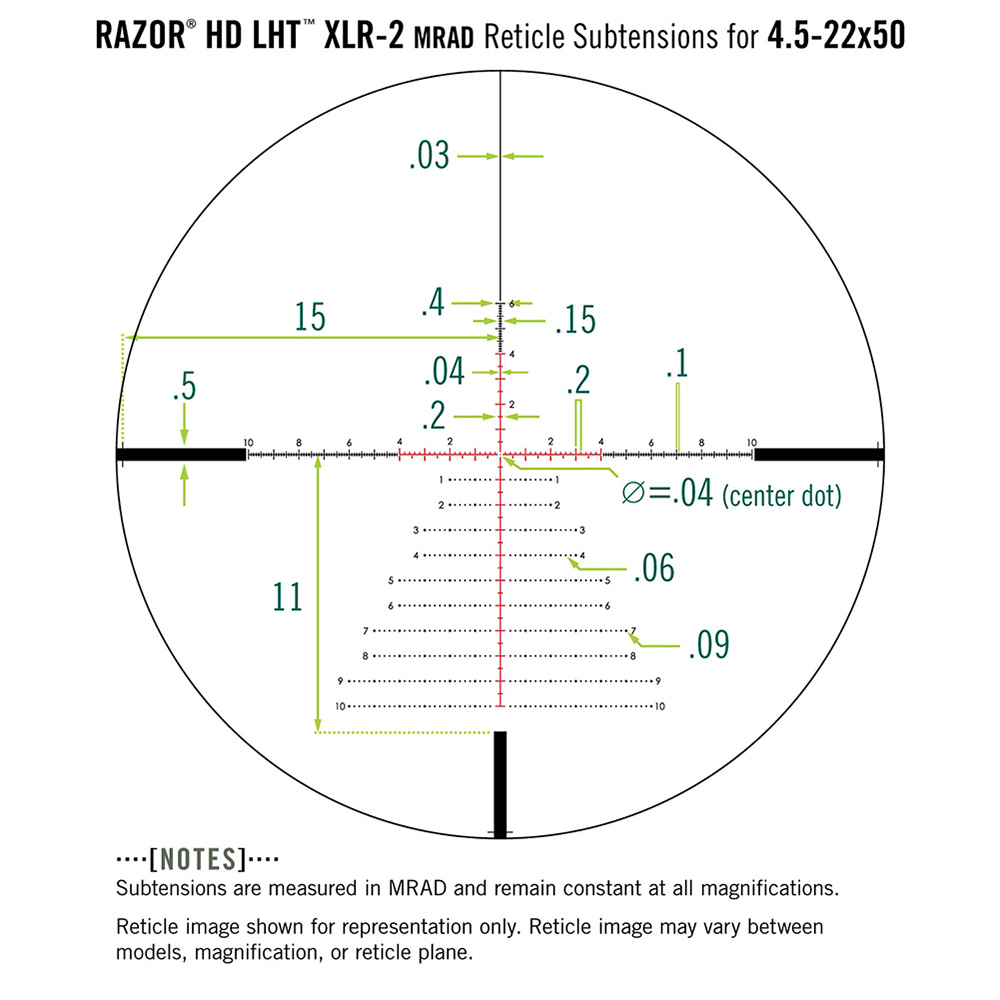

Subtension detail

XLR-2 Reticle (mrad)

The XLR-2 reticle is an illuminated, long-range reticle with elevation and windage reference subtensions. Great for long-range shooters and hunters who prefer to hold for bullet-drop and wind at distance.
