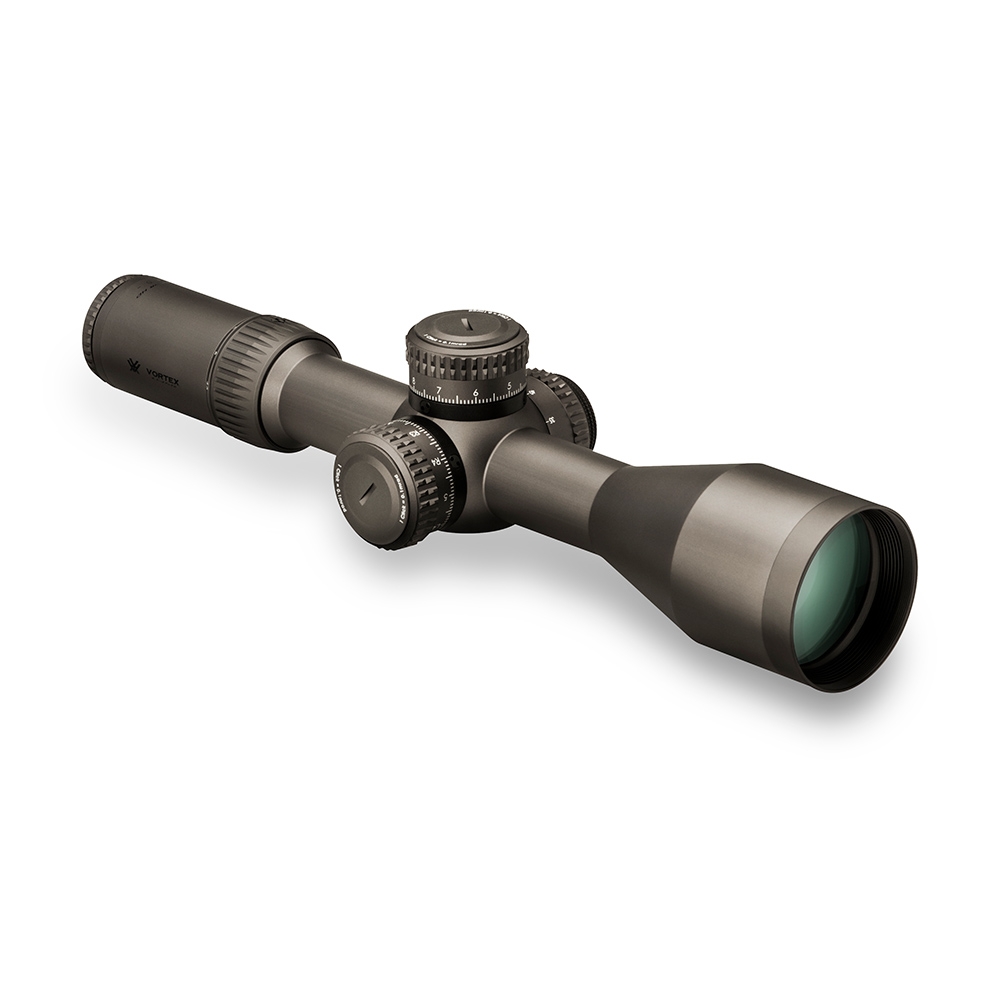

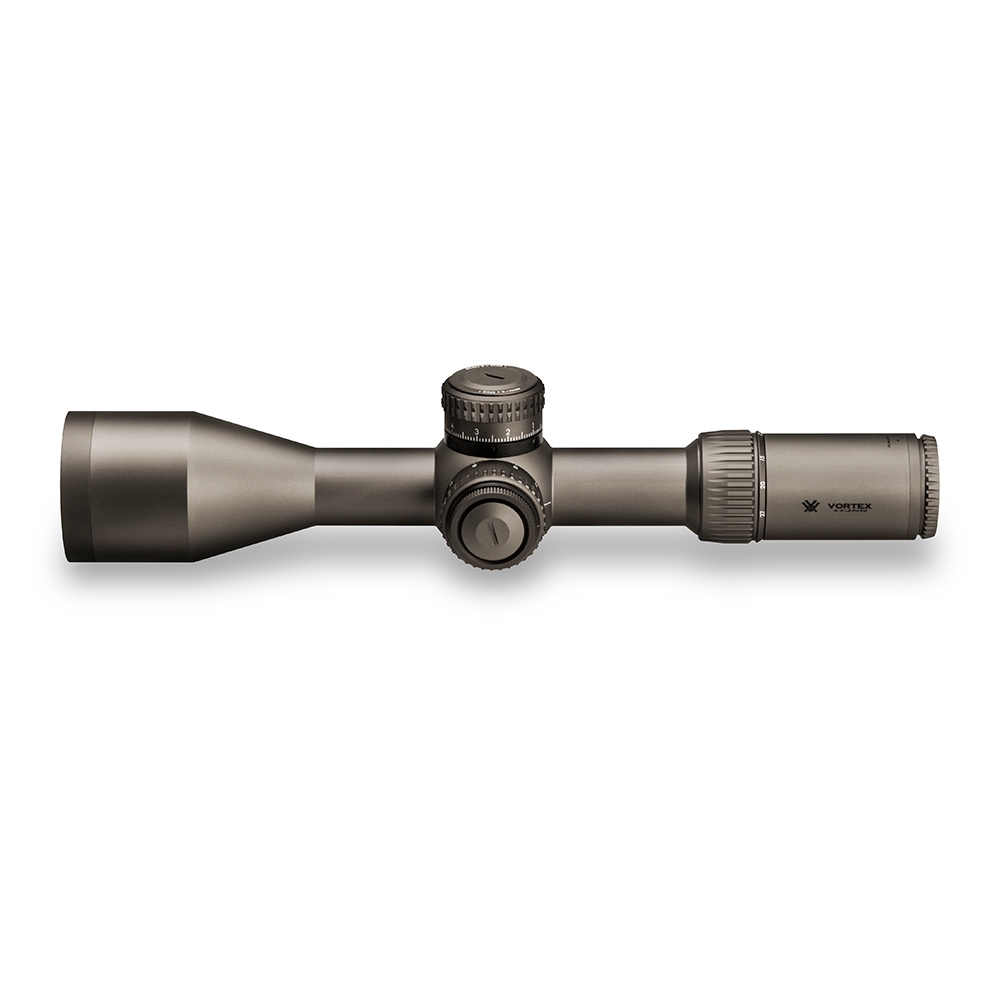

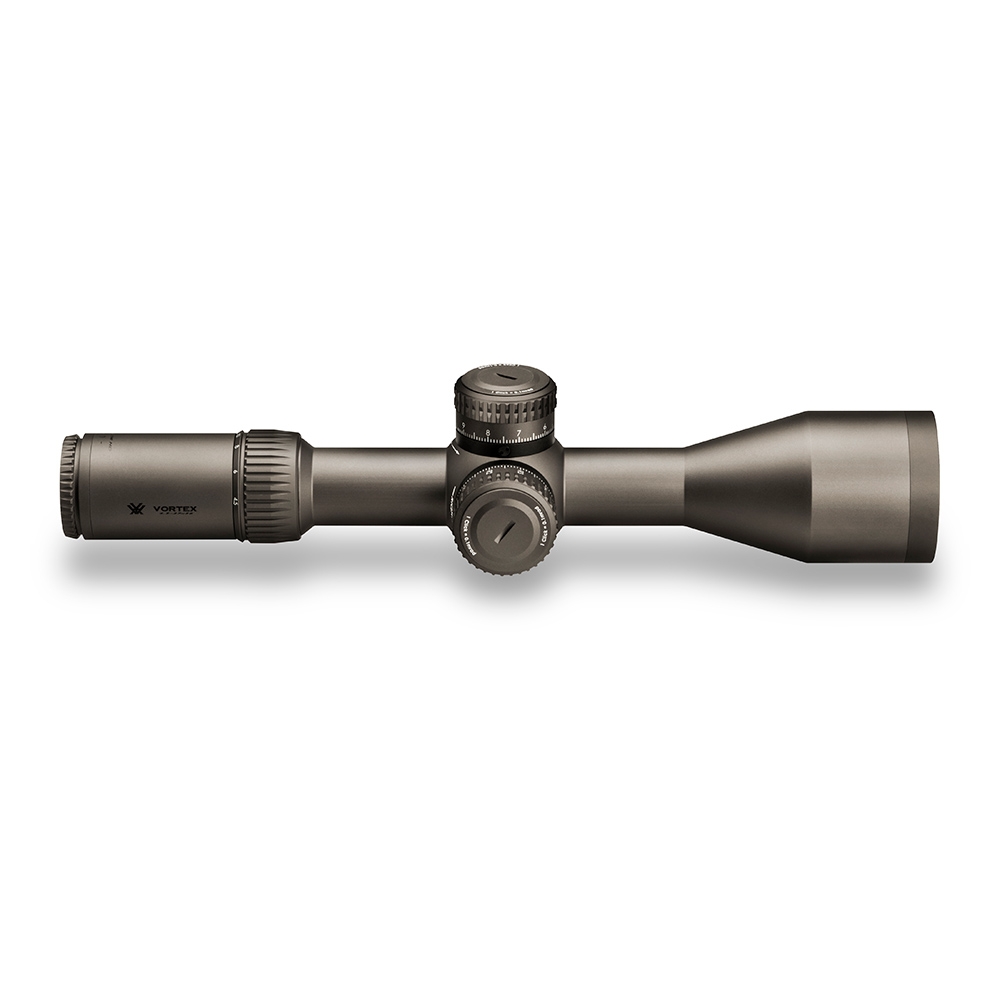

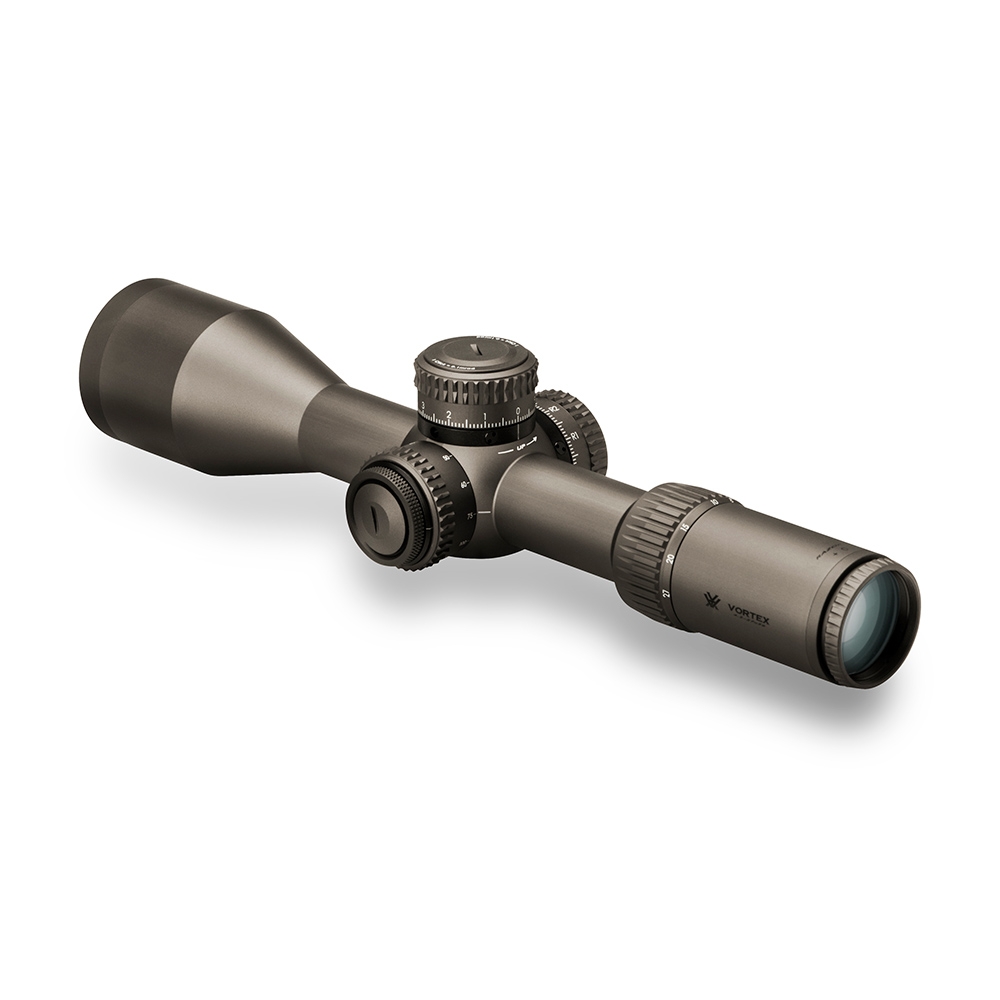

Vortex Razor HD Gen II 4.5-27x56 FFP H59 mrad

VT-RZR-42709

The new frontrunners in the race for the ultimate precision, long-range optics, the Gen II Razors, designed and engineered for dialing precision long-range shots in extreme environments, have serious precision shooters saying "finally". The Gen II Razors feature a 6x zoom range, a 34mm single-piece aircraft-grade aluminum tube and our sophisticated L-Tec turret system plus a host of additional high-performance features for state-of-the-art optics with deadly accuracy.

MSRP/PDSF* CA$6,299

Reviews

Reviews



Specifications

Specifications

SKU VT-RZR-42709
Magnification 4.5–27
Objective Lens Diameter 56 mm
Eye Relief 3.7 inches
Field of View 25.3–4.4 feet/100 yards
Tube Size 34 mm
Turret Style L-Tec
Adjustment Graduation .1 mrad
Travel per Rotation 10 mrad
Max Elevation Adjustment 28.5 mrad
Max Windage Adjustment 10 mrad
Parallax Setting 32 yards to infinity
Length 14.4 inches
Weight 48.5 ounces
Riflescope Manual (.pdf) Download PDF
Reticle Manual (.pdf) Download PDF
Included in the Box
  • L-Tec Tool
  • 4-inch sunshade
  • 2 mm hex wrench
  • CR2032 battery
  • Lens cloth
Lengths
L1 L2 L3 L4 L5 L6
14.4 1.96 2.17 6.11 4.13 4.1
Heights
H1 H2
2.55 1.81

Dimensions measured in inches.

Optical Features

APO System Apochromatic objective lens system uses index-matched lenses to correct colour across the entire visual spectrum.
Optically Indexed Lenses Optimize image sharpness and brightness from edge to edge.
HD Lens Elements Premium HD (High Density) extra-low dispersion glass delivers the ultimate in resolution and colour fidelity, resulting in High Definition images.
XRPlus Fully Multi-Coated Premium proprietary coatings deliver the highest level of light transmission with multiple anti-reflective coatings on all air-to-glass surfaces for maximum brightness.
Plasma Tech Cuttting edge application process provides unparalleled coating durability and performance.
First Focal Plane Reticle Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications.
Glass-Etched Reticle Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability.
Illuminated Reticle Provides precise aiming under low-light conditions.

Construction Features

Tube Size 30 mm diameter tube offers a versatile blend of adjustment, size and weight for a wide variety of shooting applications.
Single-Piece Tube Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
Aircraft-Grade Aluminum Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Waterproof O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments.
Fogproof Argon gas purging prevents internal fogging over a wide range of temperatures.
Shockproof Rugged construction withstands recoil and impact.
Hard Anodized Finish Highly durable hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter's position.
ArmorTek Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
L-Tec™ Turrets Integrated locking mechanism prevents accidental adjustments. Turrets provide fast, accurate, easily read elevation and windage adjustments. Patent pending.
External Rotation Indicator Provides quick visual and tactile reference of elevation turret’s rotational position.
Locking Illumination Locks illumination at preferred setting.
Side Focus Adjustment located on left side of turret housing is easily accessible from shooting position. Provides optimal image focus and parallax removal.

Internal Mechanism Design Features

L-Tec™ Zero Stop Prevents elevation turret from dialing below sight in range using rugged steel components. Internal mechanisms stay free of sand, dirt, dust, moisture and other foreign materials—even when setting the zero-stop position.
Maximized Turret Zero Adjustment Turret design allows expanded adjustment range when L-Tec zero stop feature is disengaged for zeroing purposes.
Micro Adjust Zero Setting Infinite zero setting positions allow zero to be set between clicks for optimal accuracy.
Friction Reduction System PHeat-treated, hardened-steel pad floats on the end of the turret screw and interfaces with a hardened steel ring on the erector tube for steel-on-steel contact. Prevents galling or deformation of the erector screw contact point for superior durability.
Turret Screws Provides low-friction, wear-resistant performance: precision-machined from a silicon-brass alloy and treated with an advanced dry-film lubricant. Turret screw threads are precision machined to sub-2 micron tolerances (less than 78-millionths of an inch).
Erector Tube System Precision-machined from aircraft grade aluminum with anti-galling properties for a lighter weight, strong, durable tube. Stainless Steel offset coil spring erector biasing system withstands much higher stresses than traditional flat erector springs.

Convenience Features

Fast Focus Eyepiece Allows quick and easy reticle focusing.
L-Tec™ Tool Included with your scope for precise adjustments to the turret.
Locking Side Illumination Easily accessible and lockable illumination dial is located on the left side of turret housing. Features eleven intensity levels of illumination with off positions between each setting.

Reticle

Reticle

Full view

Close up

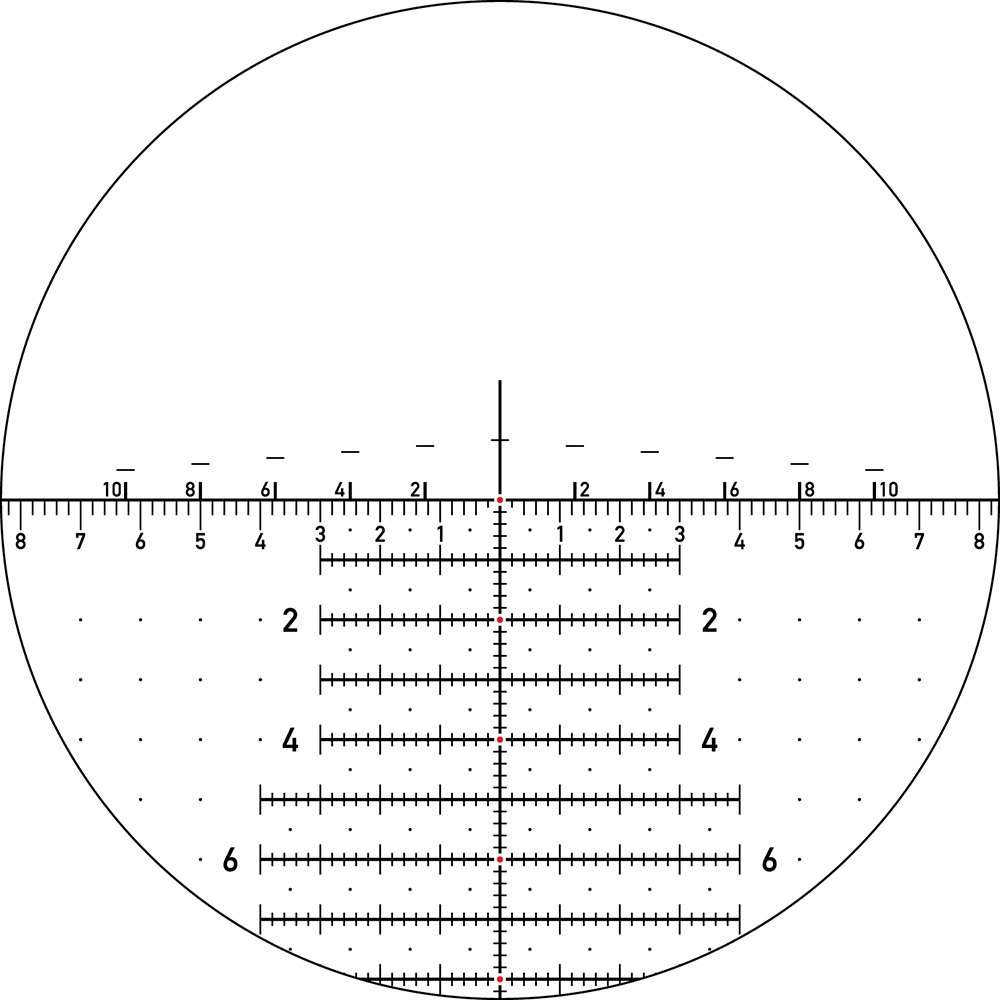

Subtension detail

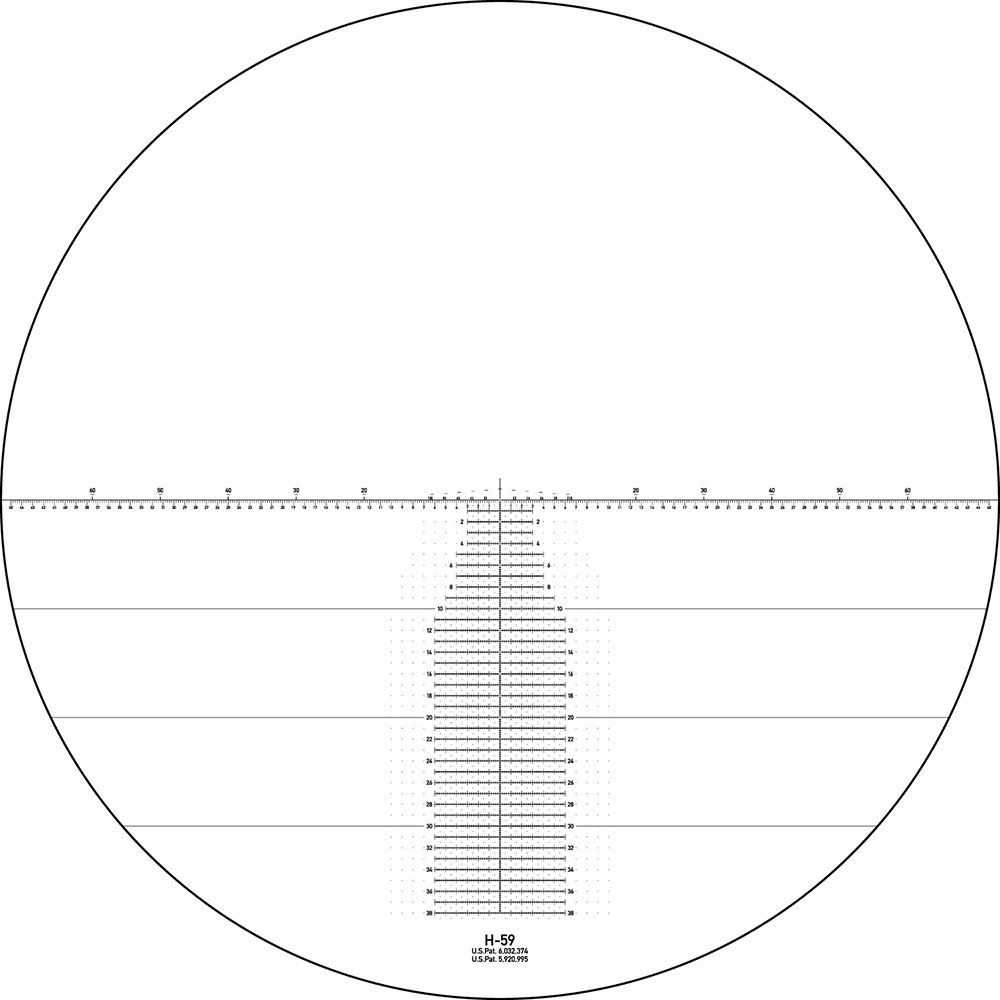

HORUS H59 Reticle

Packed with useful subtension data for long-range competition shooting or hunting, the Horus™ H59™ is a hashmarked ranging reticle available in first focal plane.
