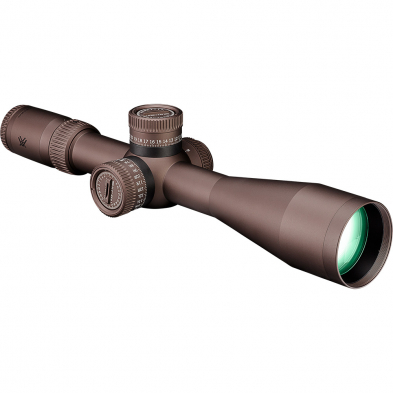

Vortex Razor HD Gen III 6–36x56 FFP EBR-7D MOA

VT-RZR-63601

The intensity of long-range, tactical situations can push even the best shooters to their limits. When that intensity defines your shooting experience, the Razor® HD Gen III 6-36x56 FFP offers the precision tools you need to act quickly and decisively. Built around the perfect balance of magnification and field of view, you get an optical system with the resolution and contrast you need to clearly identify far away targets in-scope. To get the absolute most out of the First Focal Plane reticle, the EBR-7D presents a clean sight picture while still providing ample wind holds and ranging information. The L-Tec+™ Zero Stop System with micro-adjust dial means a rapid return to an ultra-fast, fine-tuned zero. Round it out with a rugged build designed for the field and you have the long-range tactical solution you’ve been waiting for.

MSRP/PDSF* CA$6,699

Specifications

Specifications

SKU VT-RZR-63601
Magnification 6–36
Objective Lens Diameter 56 mm
Eye Relief 3.5 inches
Field of View 21.3–3.5 feet/100 yards
Tube Size 34 mm
Turret Style Exposed Locking
Adjustment Graduation 1/4 MOA
Travel per Rotation 25 MOA
Max Elevation Adjustment 120 MOA total
Max Windage Adjustment 52.2 MOA total
Parallax Setting 10 yards to infinity
Length 15.3 inches
Weight 45.1 ounces
Riflescope Manual (.pdf) Download PDF
Reticle Manual (.pdf) Download PDF
Included in the Box
  • 3-inch sunshade
  • Throw Lever
  • Lens cloth
  • CR2032 battery
  • Custom 2 mm Throw Lever Tool
  • 2.5mm Turret Tool
Lengths
L1 L2 L3 L4 L5 L6
15.25 1.95 2.25 6.20 5.50 3.55
Heights
H1 H2
2.56 1.80

Dimensions measured in inches.

Features

First Focal Plane Reticle Scale of the EBR-7D reticle remains in proportion to the zoomed image. Constant subtensions allow for accurate holdovers and ranging at all magnifications while the EBR-7D reticle is useful for long-range shooting.
L-Tec+™ Zero System  The L-Tec+™ Zero System is easy to use with all captive parts and only one set screw, making zeroing quick and simple. Once set, it also allows for more travel.
HD Lens Elements  Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding color fidelity, edge-to-edge sharpness and light transmission.
Micro Adjust Zero Setting Infinite zero setting positions allow zero to be set between clicks for optimal accuracy.
External Rotation Indicator Provides quick visual and tactile reference of elevation turret's rotational position.
XR™ Plus Fully Multi-Coated Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance.
Optically Indexed Lenses Optimize image sharpness and brightness from edge to edge.
Plasma Tech Cutting edge coating application process provides unparalleled coating durability and performance
Glass-Etched Reticle Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability.
Aircraft-Grade Aluminum Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
ArmorTek ®  Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
Hard Anodized Stealth Shadow Finish Highly durable hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter's position.
Locking Side Illumination Easily accessible and lockable illumination dial is located on the left side of turret housing. Features eleven intensity levels of illumination with off positions between each setting.
Waterproof  O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
Shockproof Rugged construction withstands recoil and impact.
Fogproof Argon gas purging prevents internal fogging over a wide range of temperatures.

Reticle

Reticle

Full view

Subtension detail

EBR-7D (MOA) Reticle

The EBR-7D reticle was designed with the precision long range shooter in mind. Constructed specifically to get the most out of the new Razor®Gen III’s superior optical system, it provides comprehensive holdover and ranging functionality while reducing visual clutter. And the first focal plane design provides consistent subtensions at all magnification settings.
