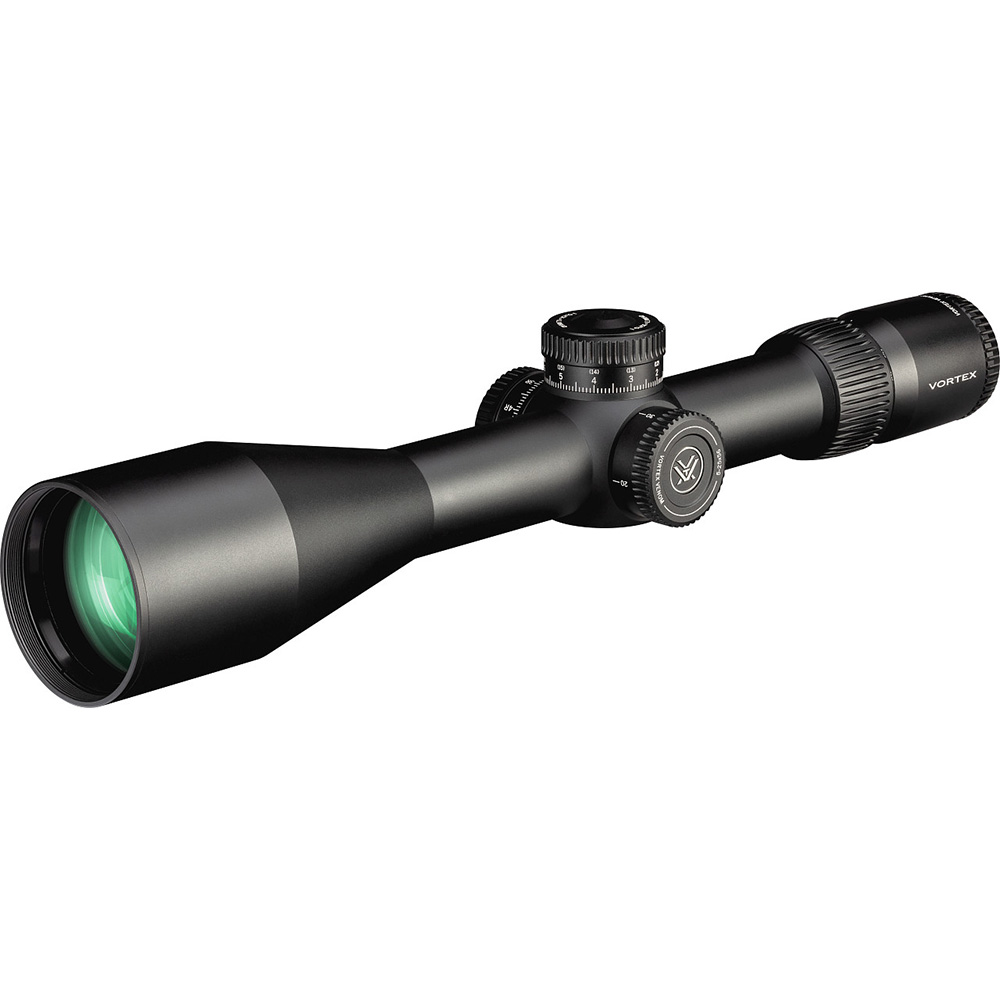

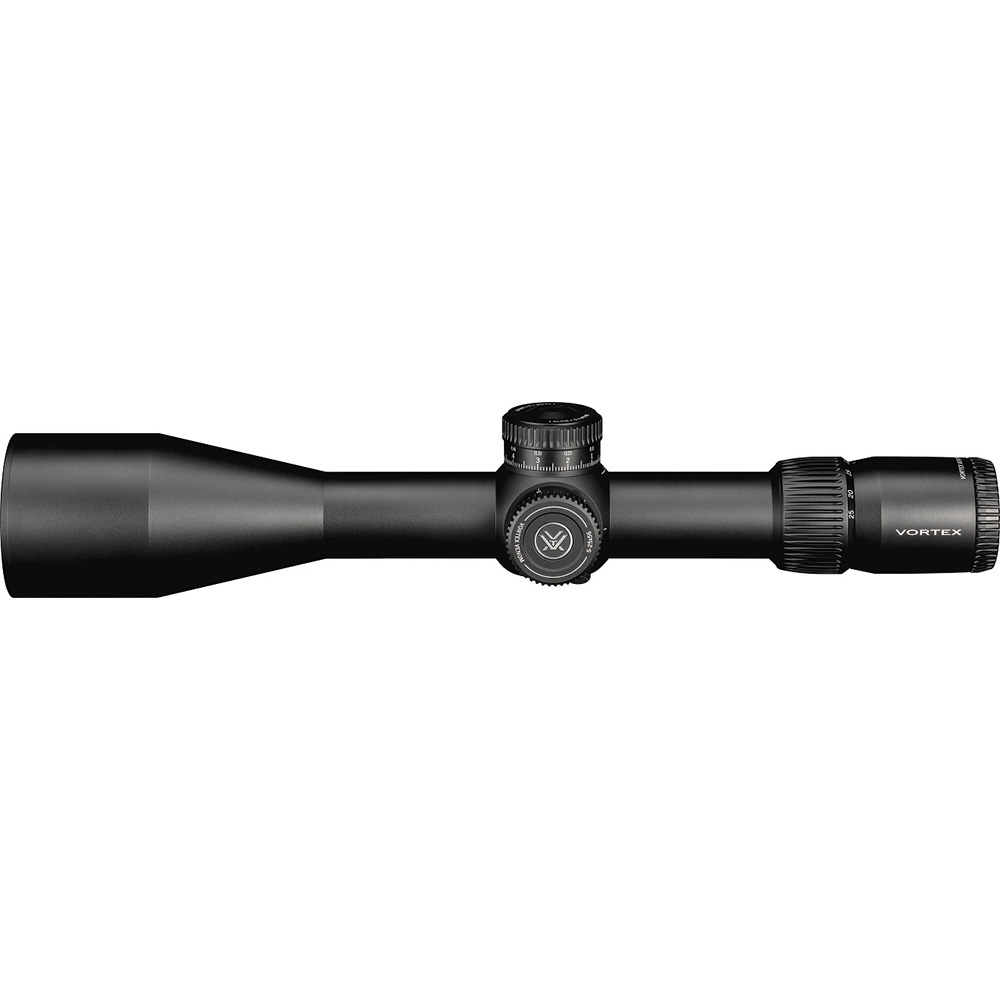

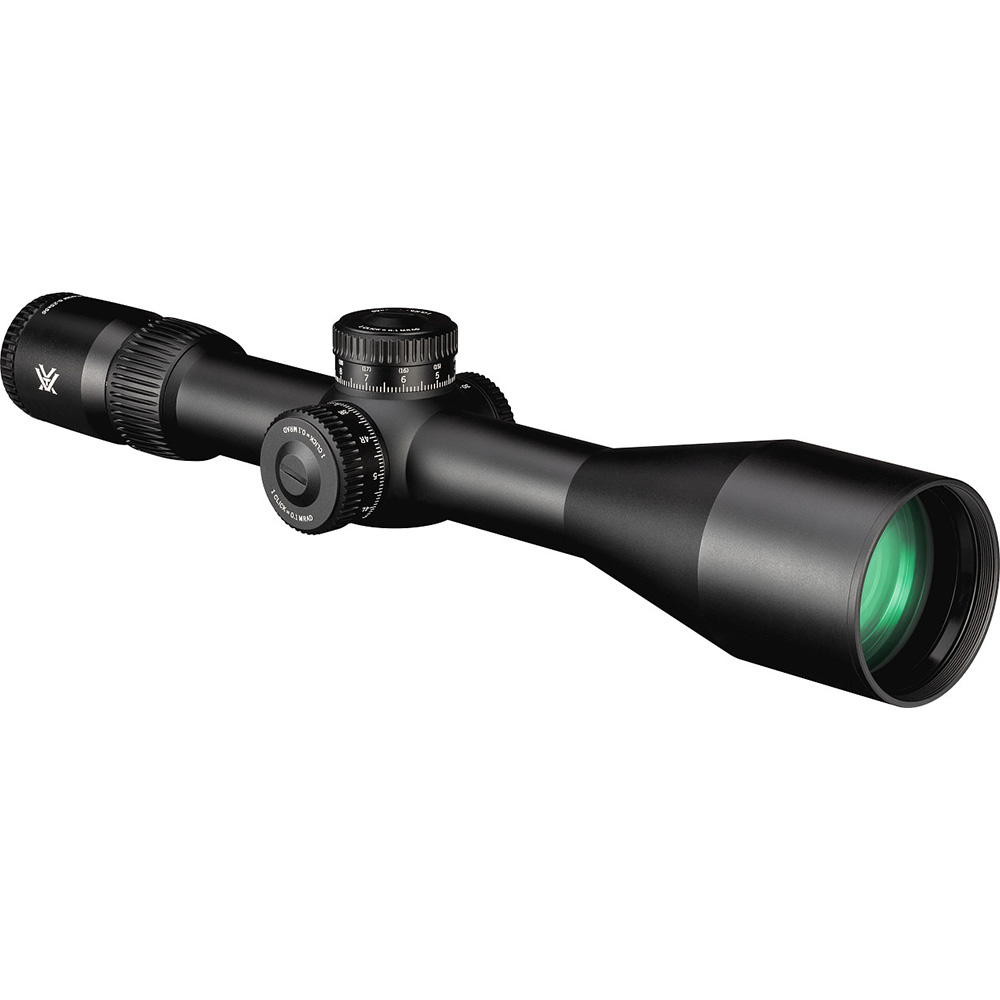

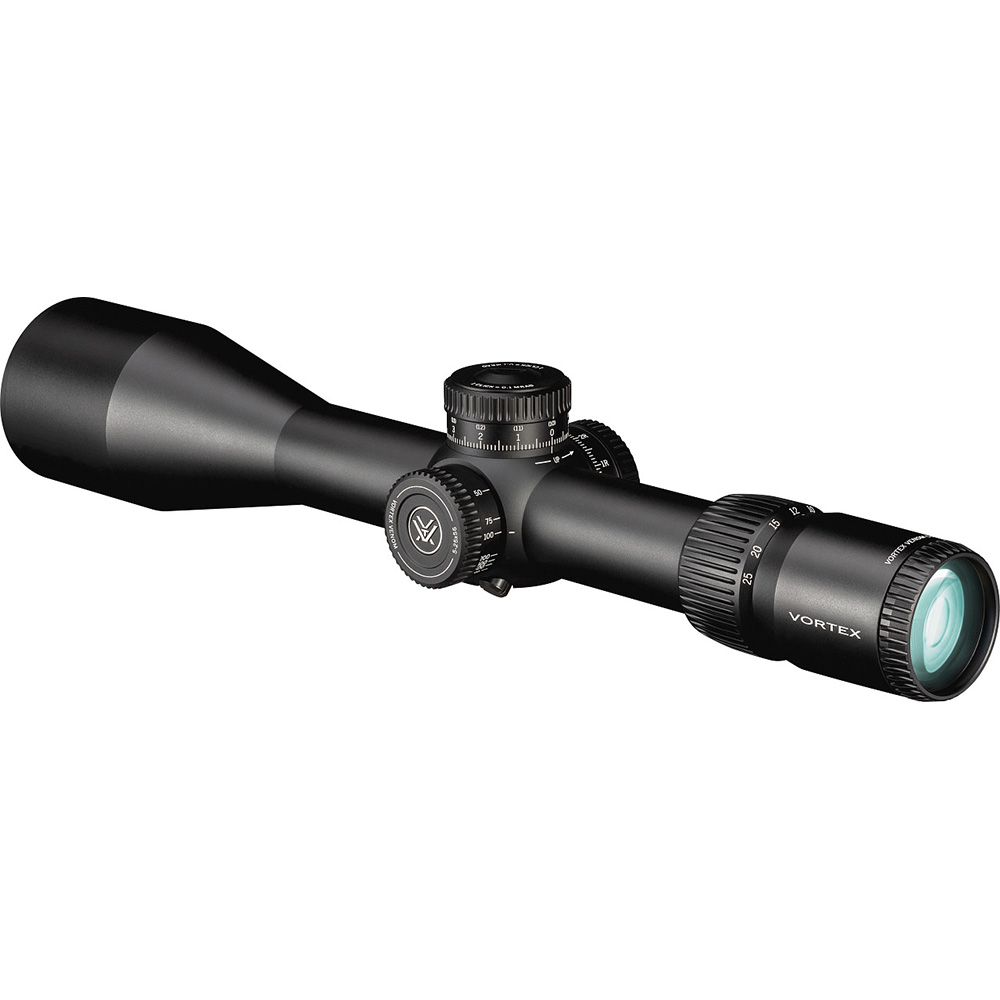

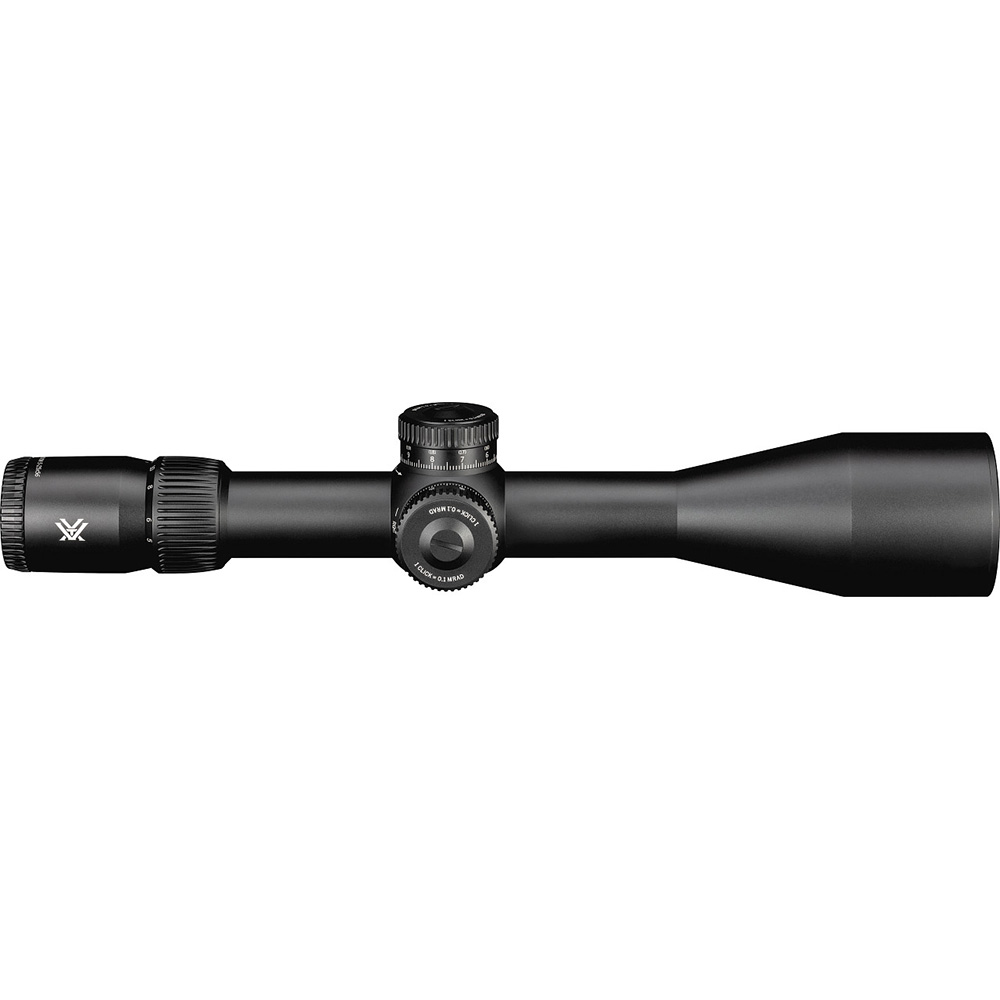

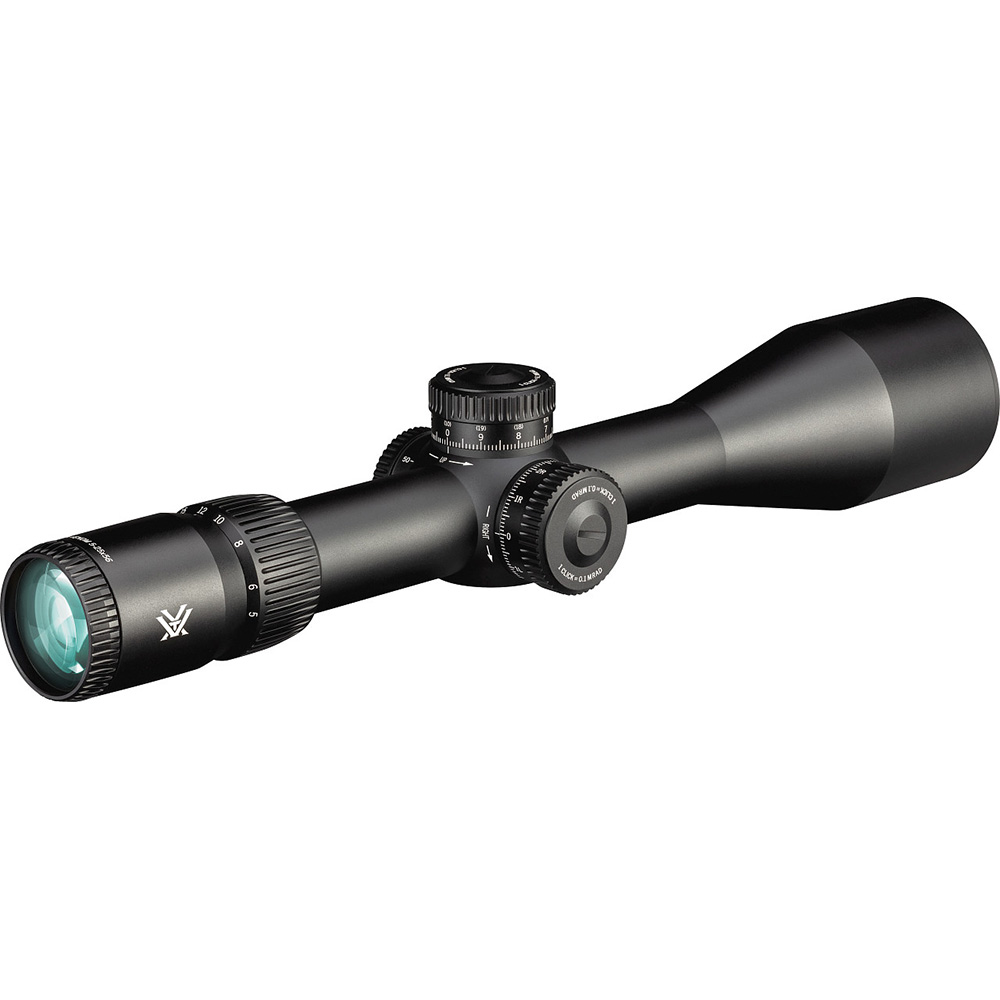

Vortex Venom 5-25x56 FFP Riflescope with EBR-7C mrad

VT-VEN-52502

Take the first step into long-range shooting with an optic that helps you go the distance with a ton of shooter-friendly features. Featuring a 5x mag range built into a 34mm tube for a massive amount of turret travel, the Venom® also includes our RevStop™ Zero System for a fast, easy, reliable return to zero. The EBR-7C, First Focal Plane reticle gives you accurate holds at any magnification, and an included throw lever allows for fast transitions between magnifications. It’s the quickest way to get your rifle out to 1,000 yards and beyond at a price that lets you go deep for less.

MSRP/PDSF* CA$949

Specifications

Specifications

SKU VT-VEN-52502
Magnification 5 – 25
Objective Lens Diameter 56 mm
Eye Relief 3.6 inches
Field of View 21.2–4.7 feet/100 yards
Tube Size 34 mm
Turret Style Exposed Tactical
Adjustment Graduation .1 mrad
Travel per Rotation 10 mrad
Max Elevation Adjustment 25 mrad
Max Windage Adjustment 25 mrad
Parallax Setting 15 yards to infinity
Length 15.3 inches
Weight 35.0 ounces
Riflescope Manual (.pdf) Download PDF
Reticle Manual (.pdf) Download PDF
Included in the Box
  • 3" Sunshade
  • Turret Tool
  • Rubber Lens Covers
  • Lens Cloth
  • Throw Lever
  • 2mm Hex Wrench
Lengths
L1 L2 L3 L4
15.25 2.60 2.4 6.9
Heights
H1 H2
2.54 1.81

Dimensions measured in inches.

Optical Features

XD™ Lens Elements Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images.
Fully Multi-Coated Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
First Focal Plane Reticle Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications.
Glass-Etched Reticle Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability.

Construction Features

Single-Piece Tube Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
Aircraft-Grade Aluminum Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Waterproof O-ring seals prevent moisture, dust and debris from penetrating the binocular for reliable performance in all environments.
Fogproof Nitrogen gas purging prevents internal fogging over a wide range of temperatures.
Shockproof Rugged construction withstands recoil and impact.
ArmorTek ® Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
Tactical-Style Turrets Exposed turrets provide fast, accurate and easily read elevation and windage adjustments.

Convenience Features

Fast Focus Eyepiece Allows quick and easy reticle focusing.
Throw Lever The included throw lever can be installed for quick and easy magnification adjustments.
RevStop™ Zero System Patented streamlined design offers an easy to set, rock-solid return to zero after turret adjustments.

Reticle

Reticle

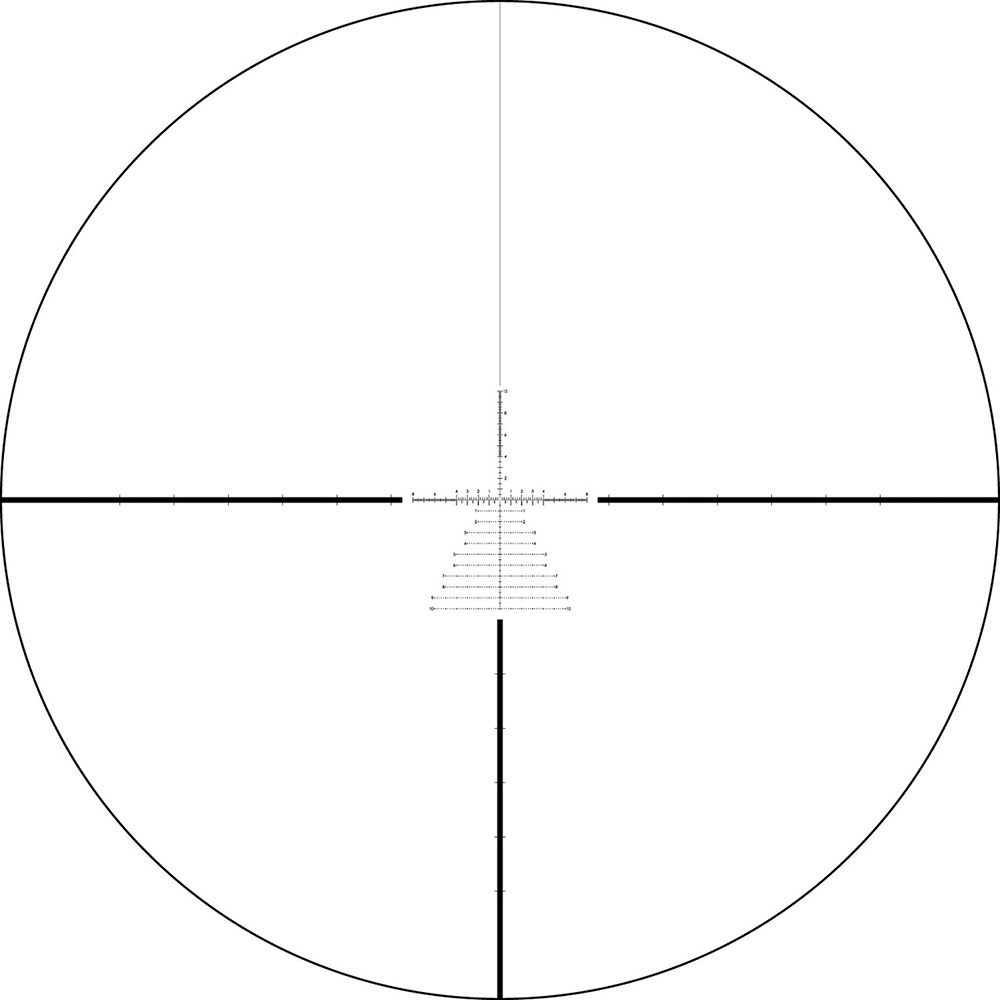

Full view

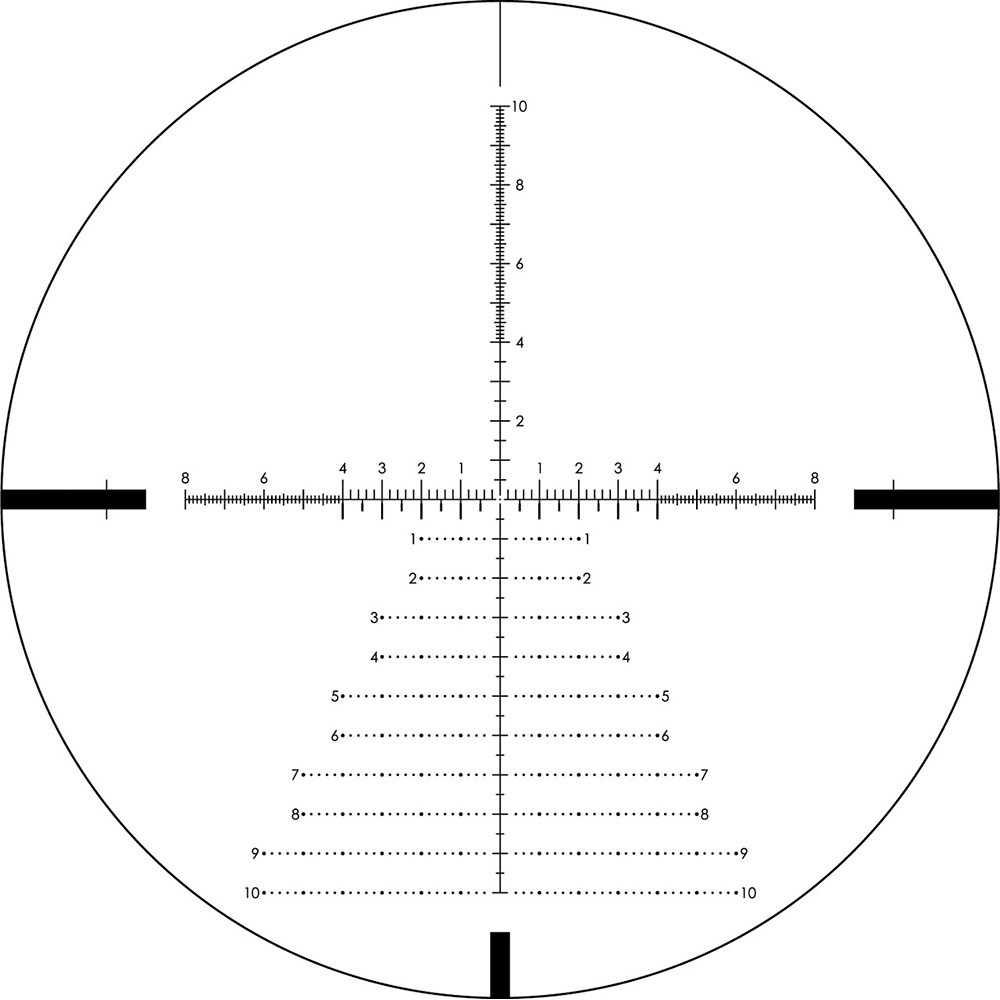

Close up

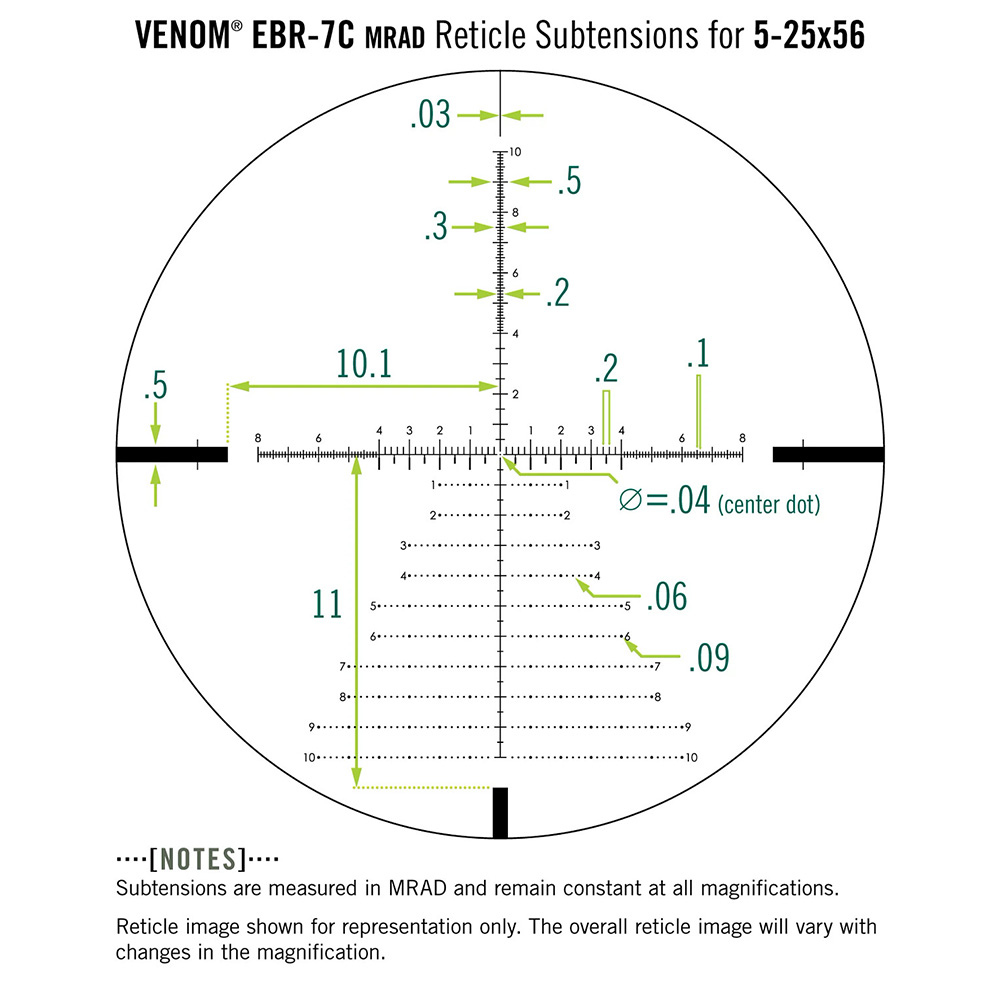

Subtension detail

EBR-7C (mrad)

Hash-marked ranging reticle using MOA or MRAD based subtension lines for ranging, holdover, and windage corrections. Letters refer to reticle subtensions listed in chart below.
